Fail-Safe Operation
Fail-Safe Operation

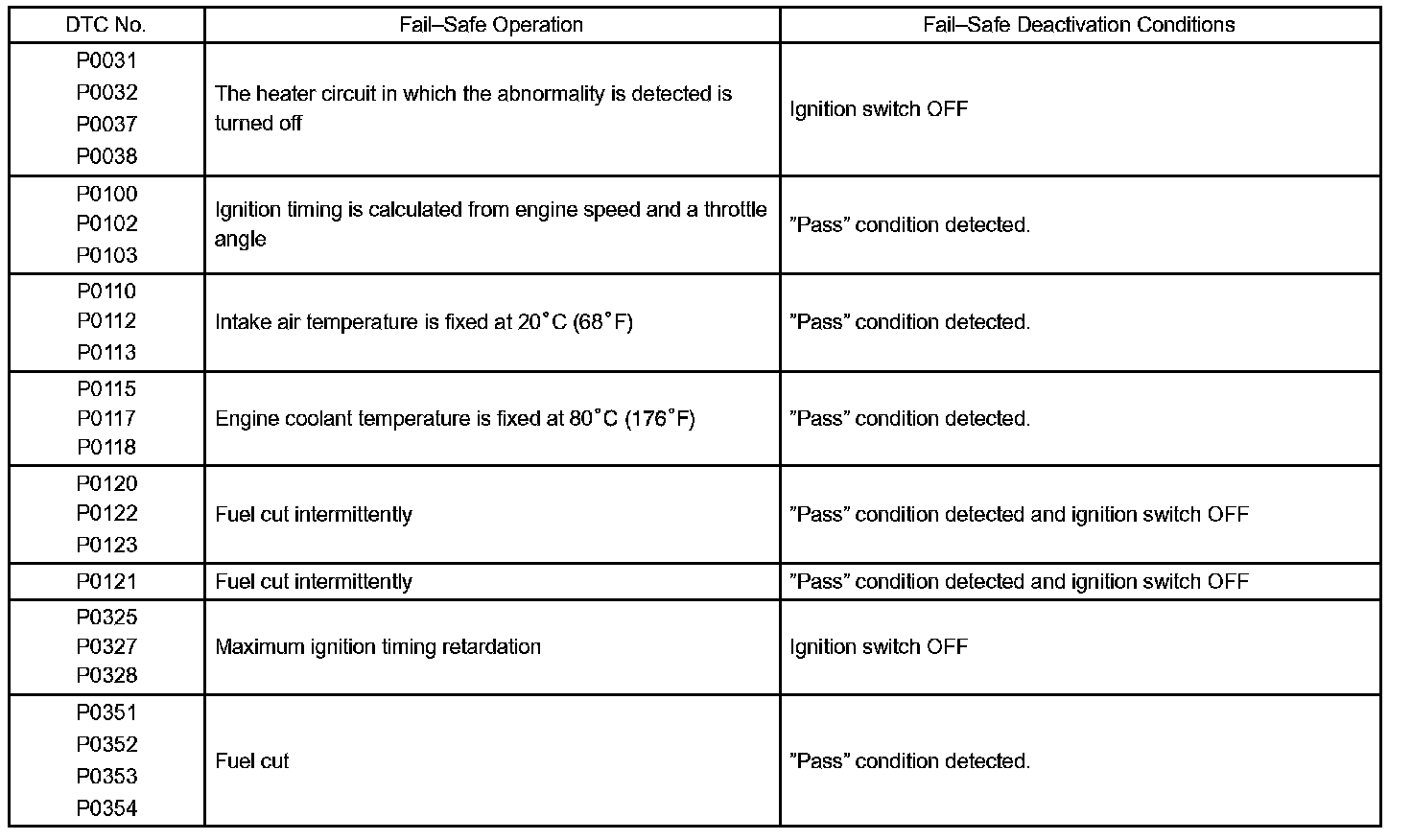

FAIL SAFE CHART
Fail-safe Chart:
If any of the given codes is recorded, the ECM enters the fail-safe mode.
