System Specifications

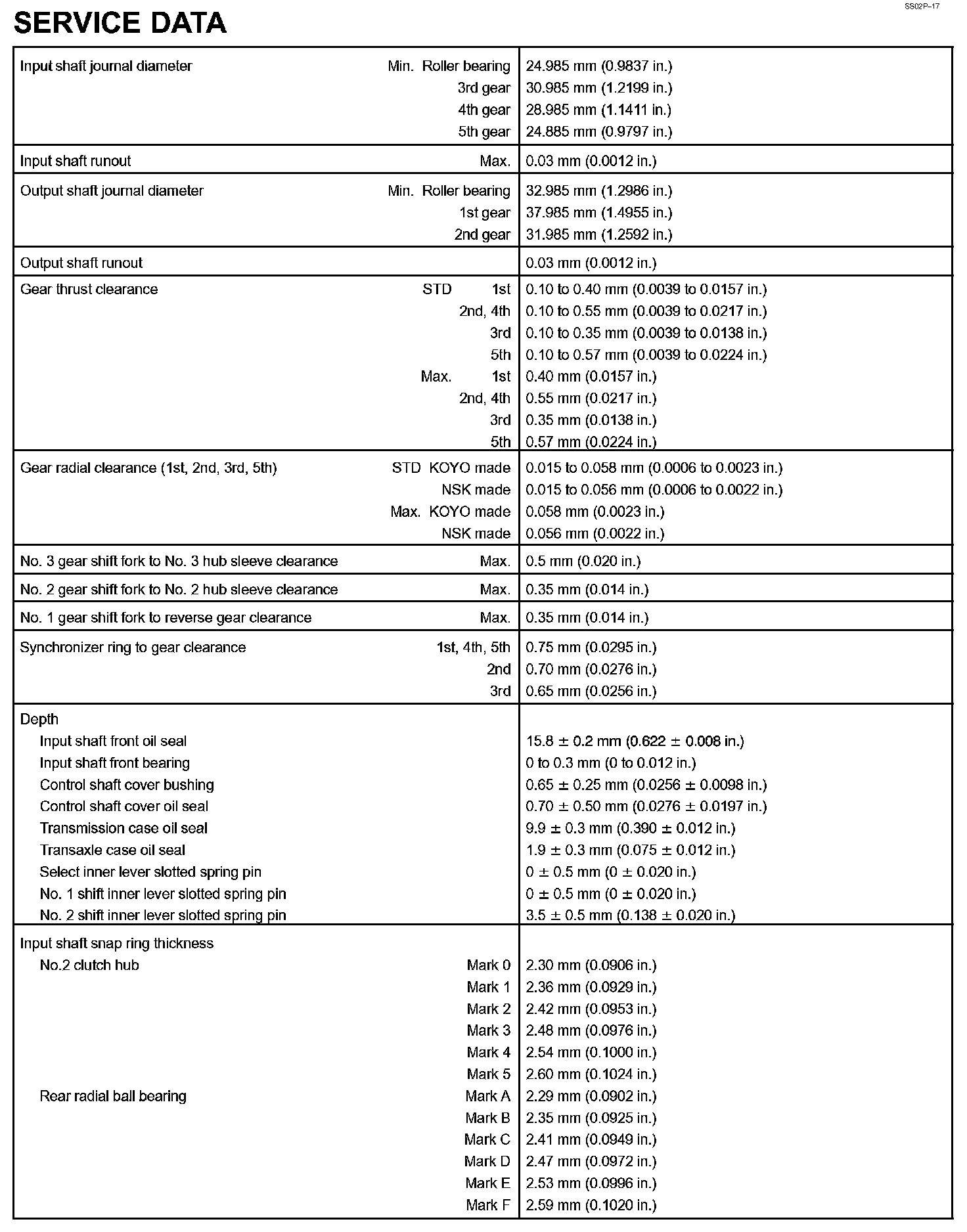

Manual Transaxle (C56) - Service Data Part 1:

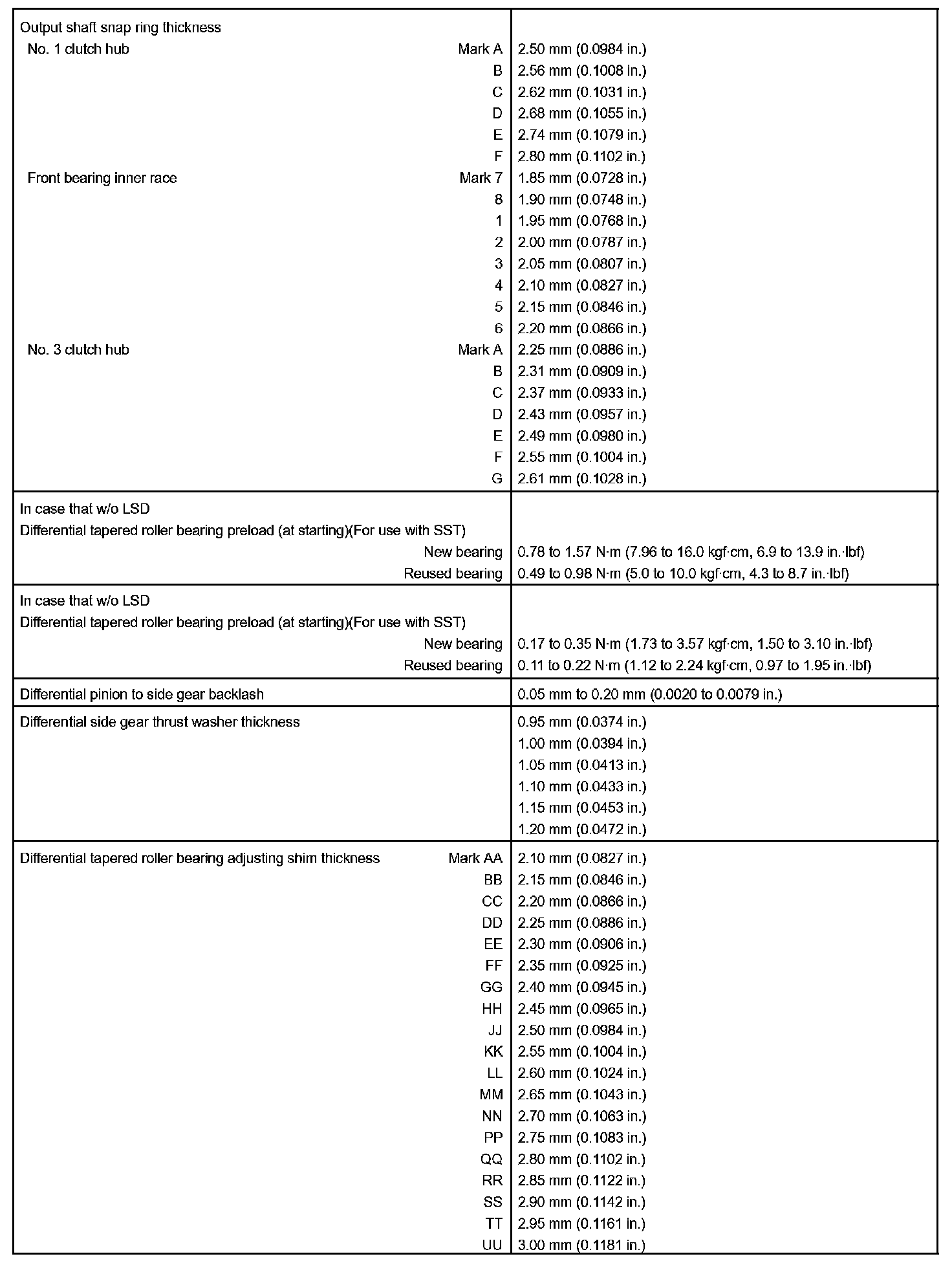

Manual Transaxle (C56) - Service Data Part 2:

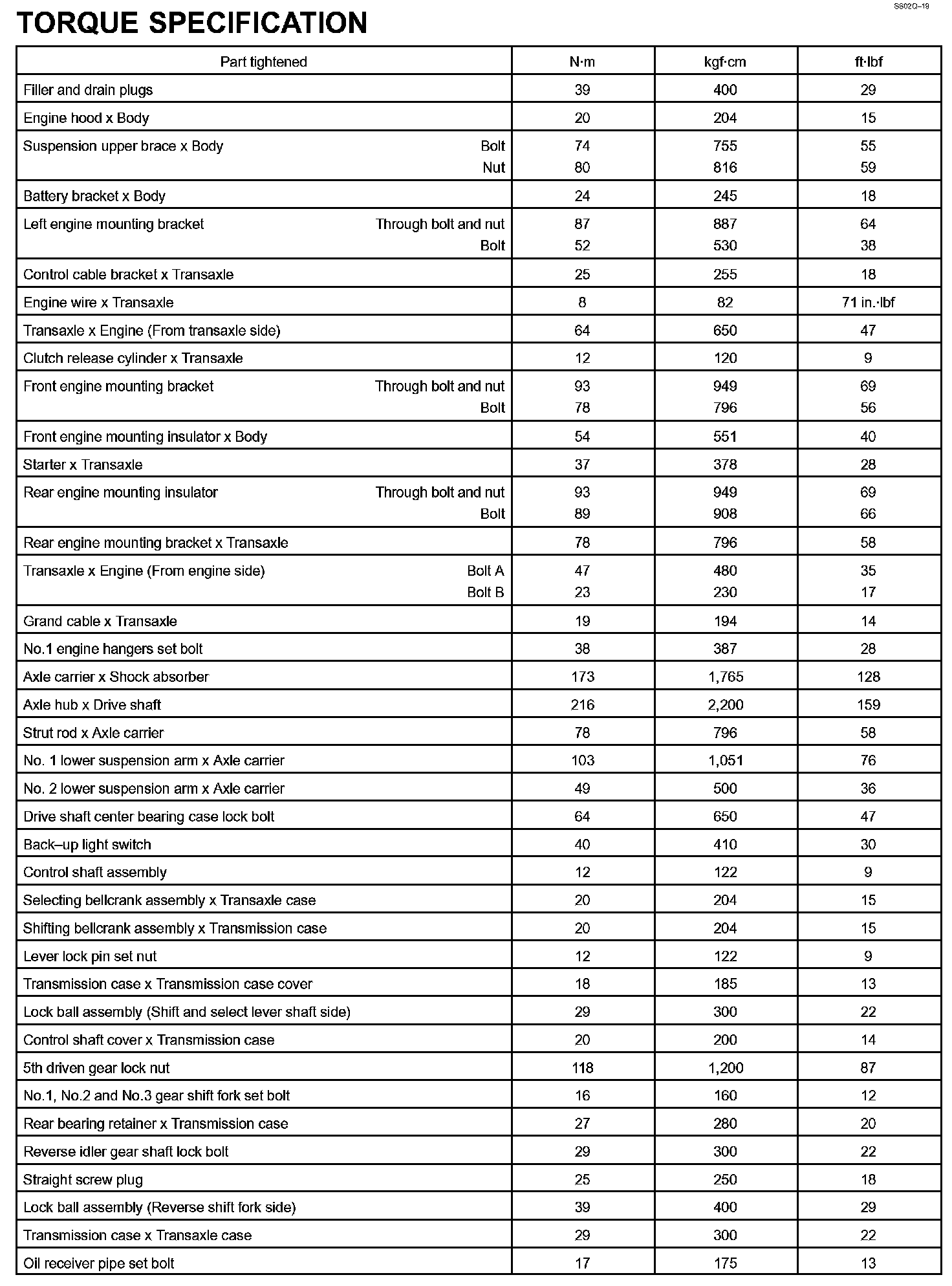

Manual Transaxle (C56) - Torque Specification Part 1:

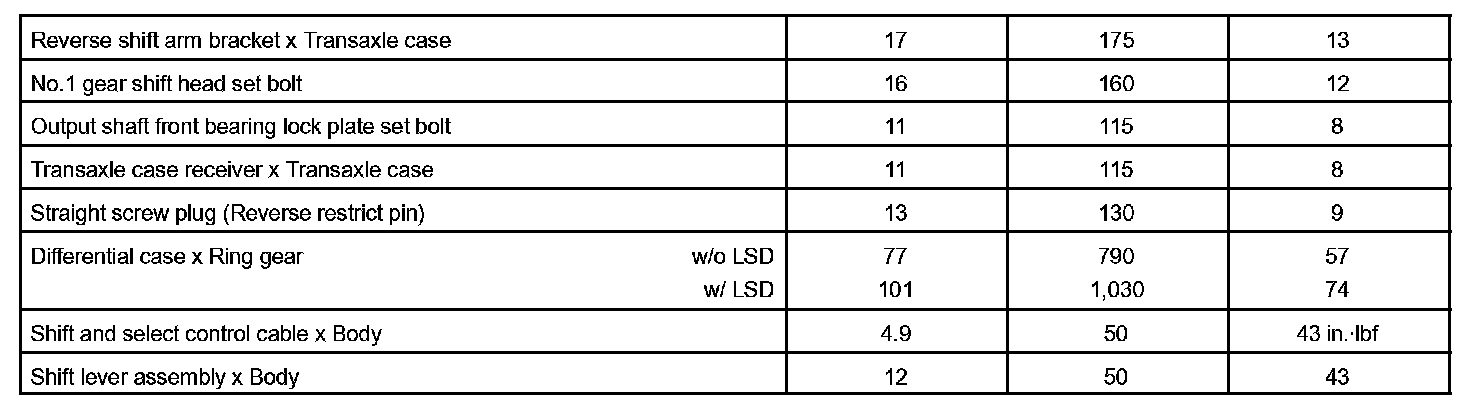

Manual Transaxle (C56) - Torque Specification Part 2:
