Disc Brake System
>>
Rear
Rear

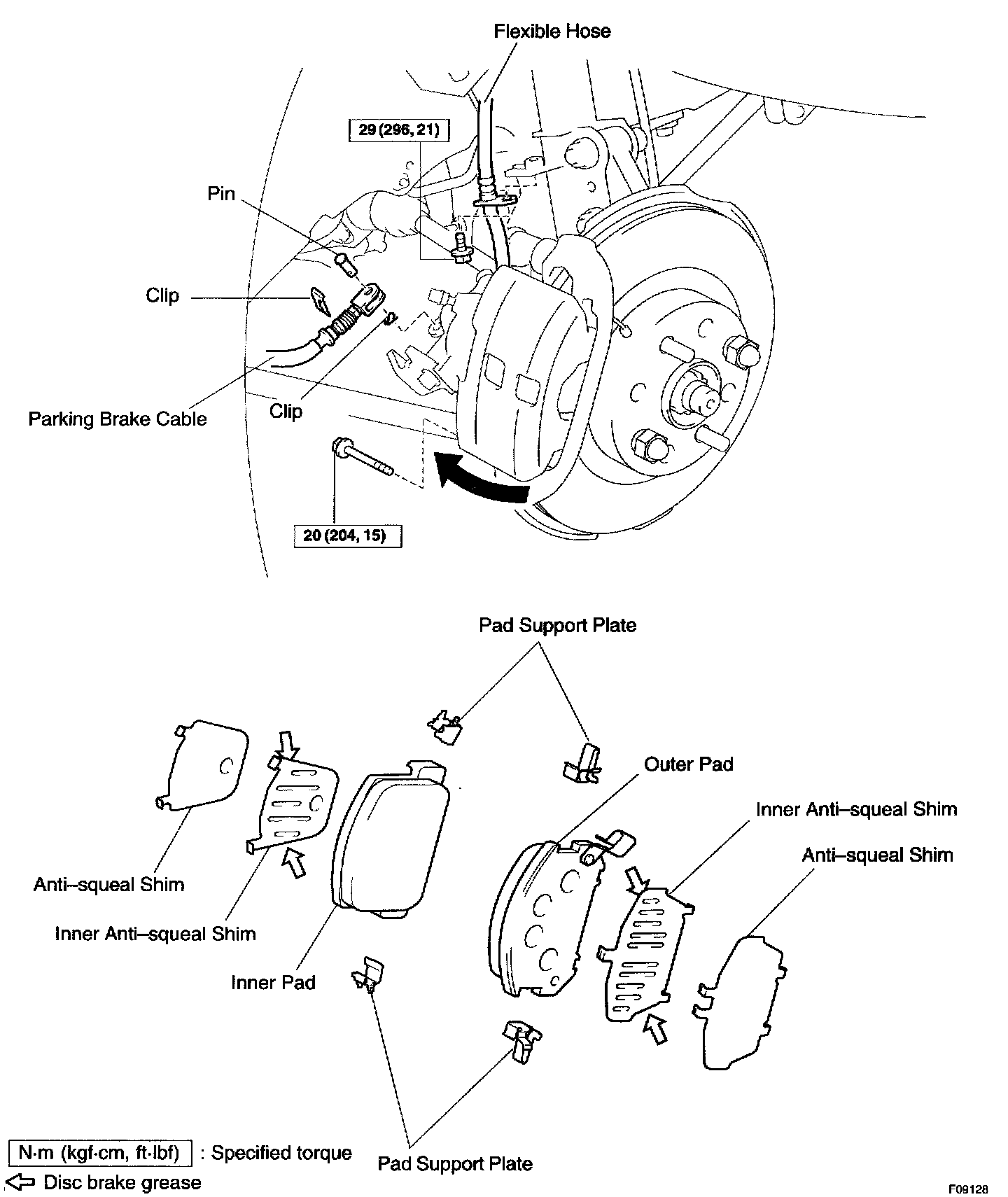

REAR
BRAKE PAD
REPLACEMENT W/ RELATED COMPONENTS

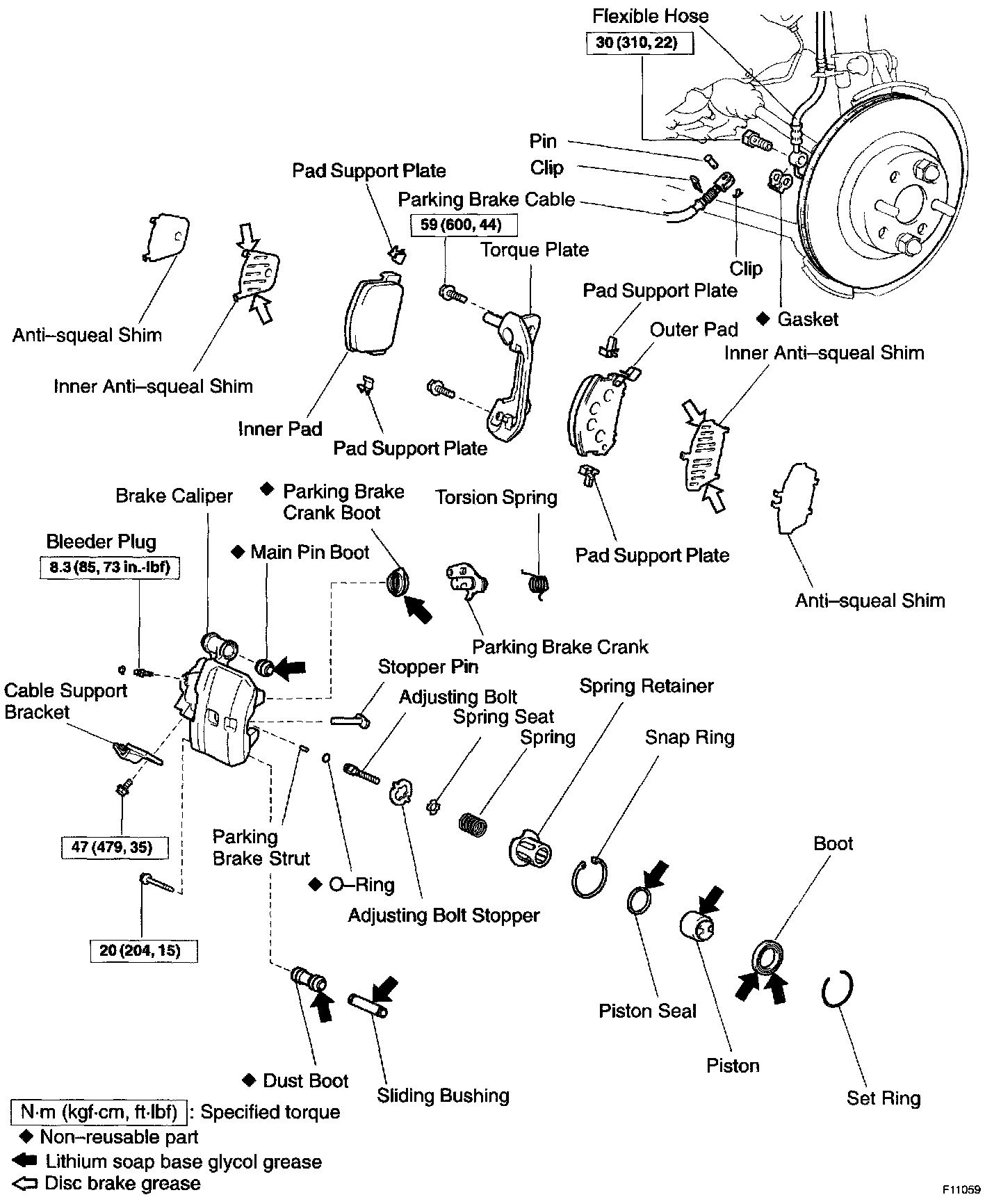

REAR
BRAKE CALIPER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
