Sequential Manual Transmission Assembly
Sequential Manual Transmission Assembly

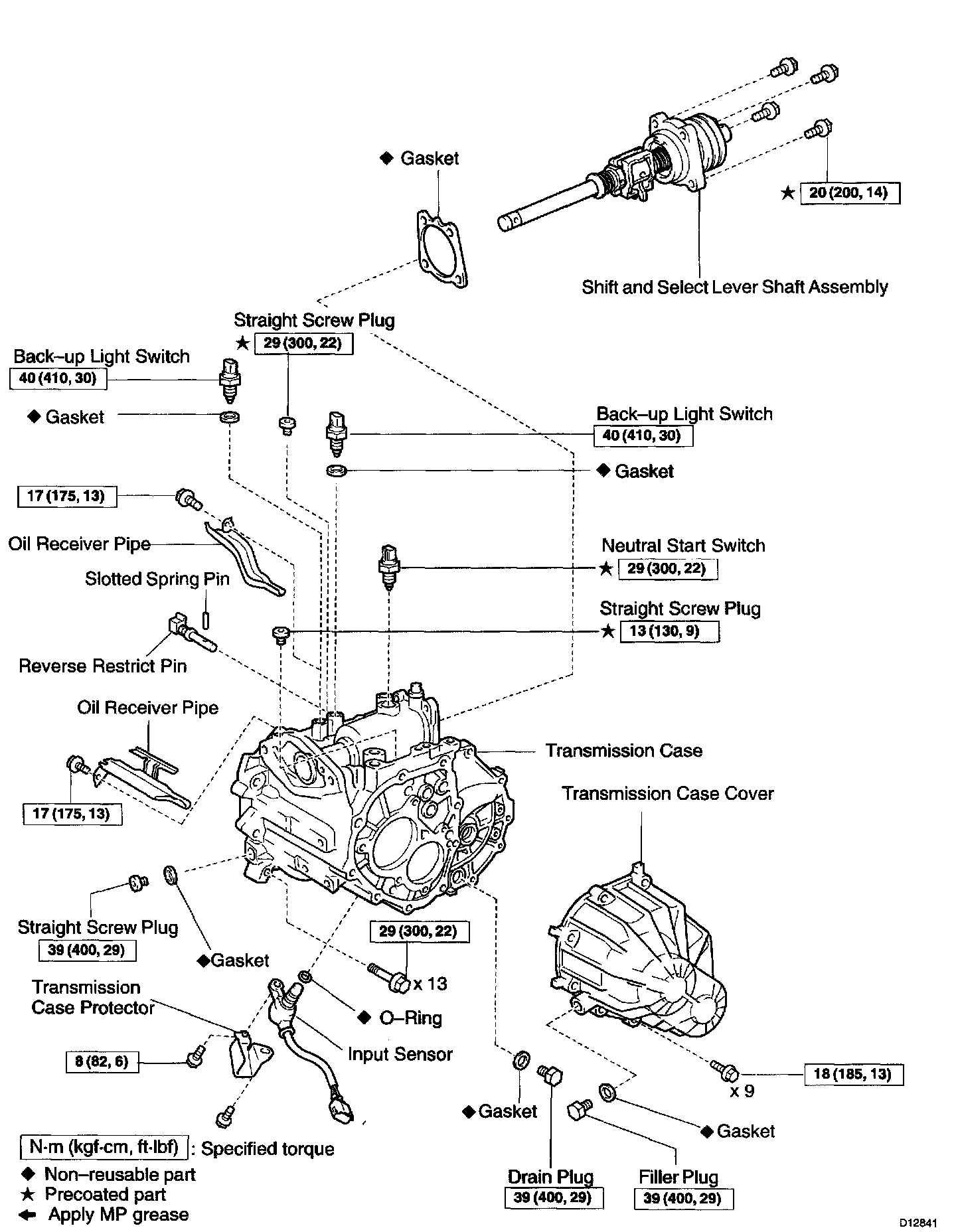

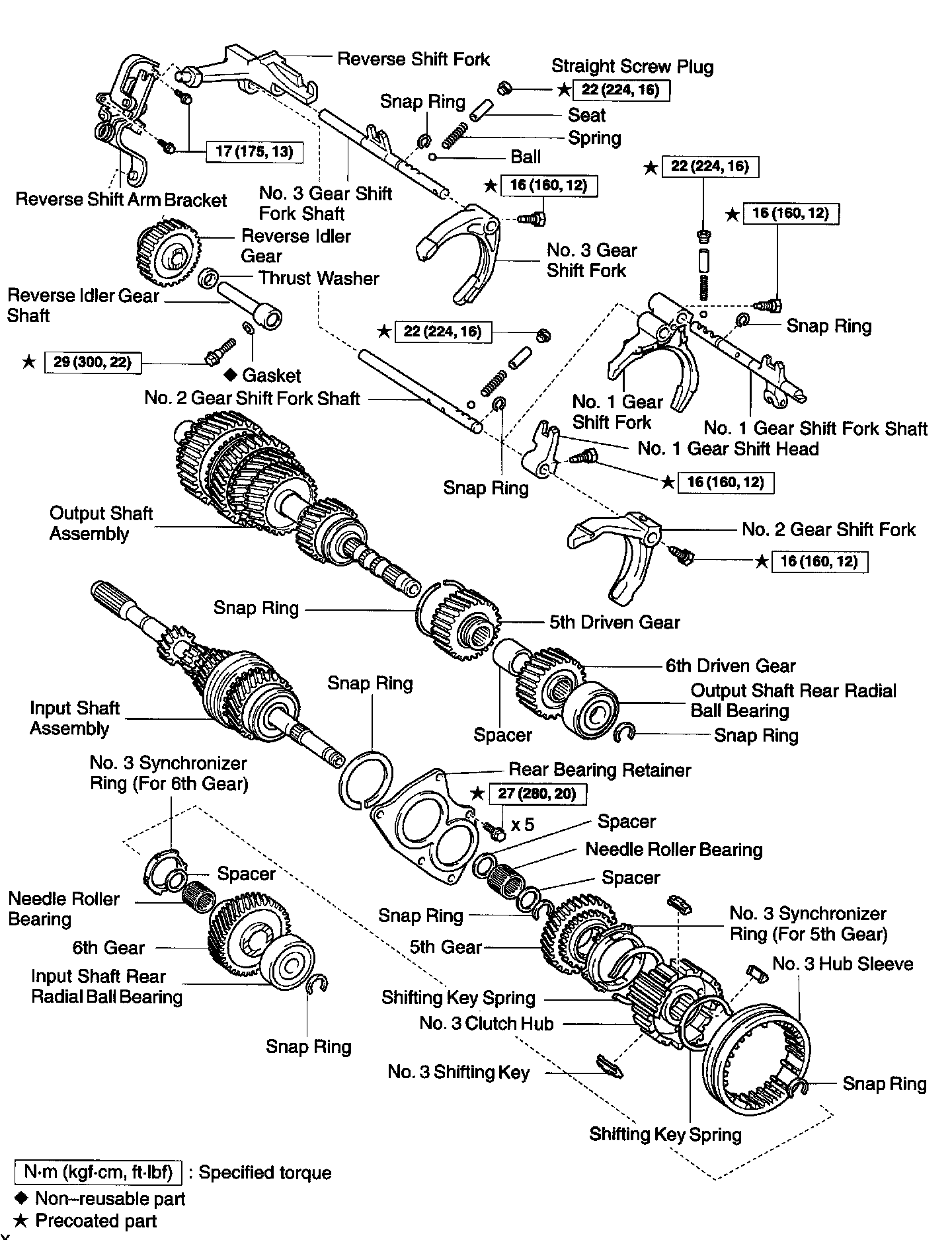

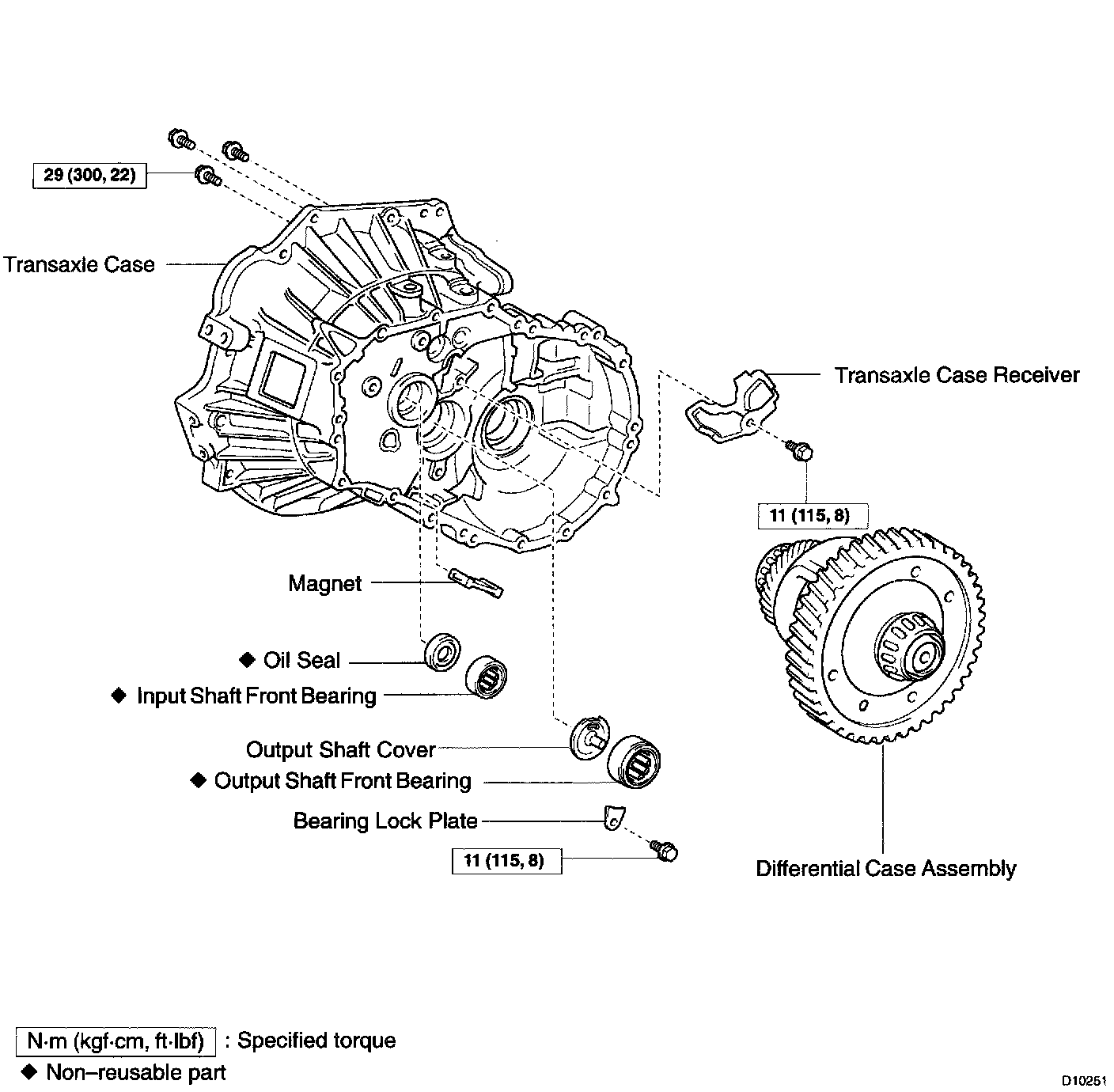

SEQUENTIAL MANUAL TRANSMISSION ASSEMBLY
