Home >> Toyota >> 2004 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering

Steering

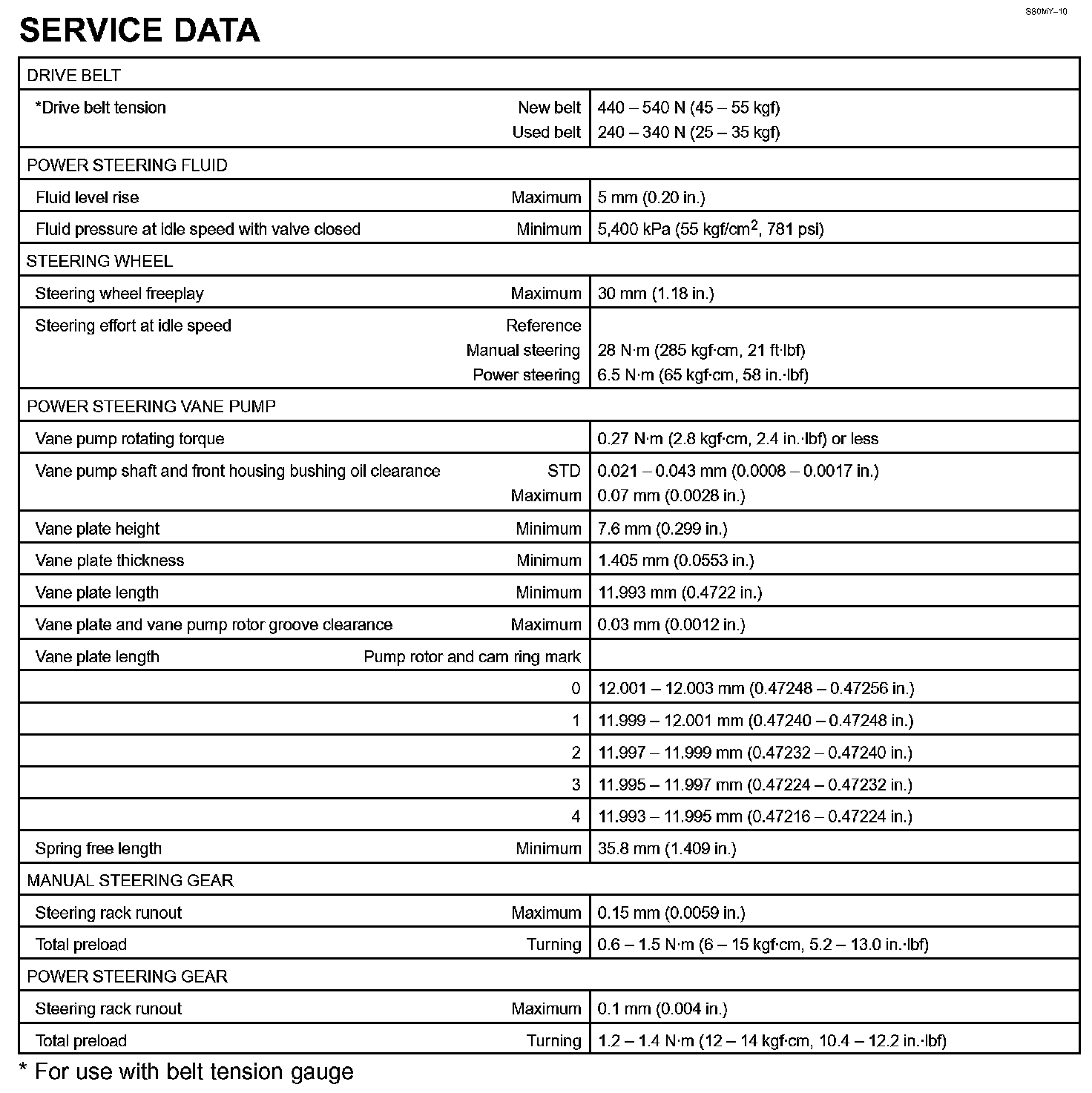

Steering - Service Data:



Brake - Torque Specification Part 1:



Brake - Torque Specification Part 2:
