Throttle Position Sensor: Testing and Inspection

INSPECT THROTTLE POSITION SENSOR

a. Disconnect the throttle position sensor connector.

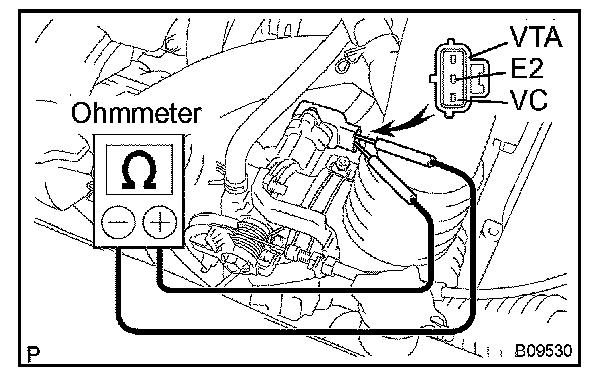

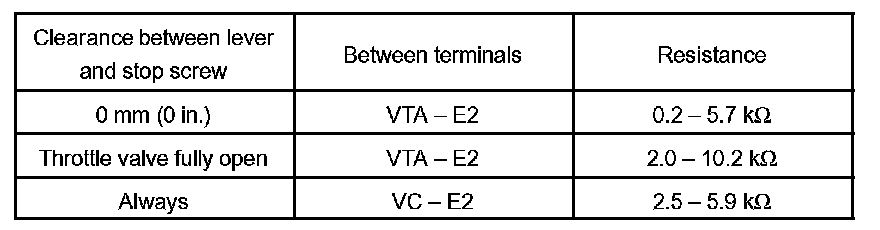

b. Using an ohmmeter, measure the resistance between each terminal.
c. Reconnect the throttle position sensor connector.
