Corolla L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications

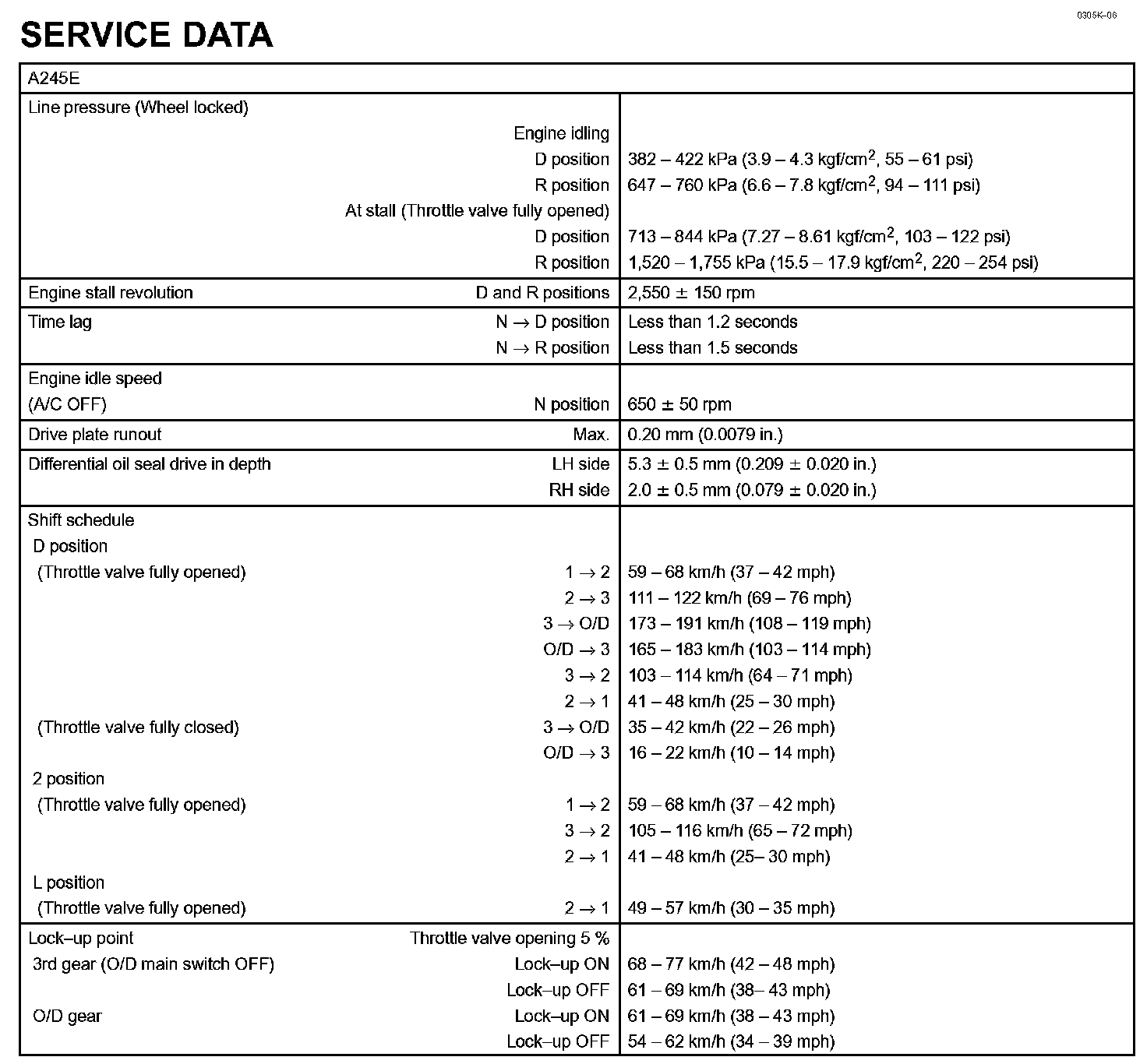

Automatic Transmission/Transaxle - Service Data:

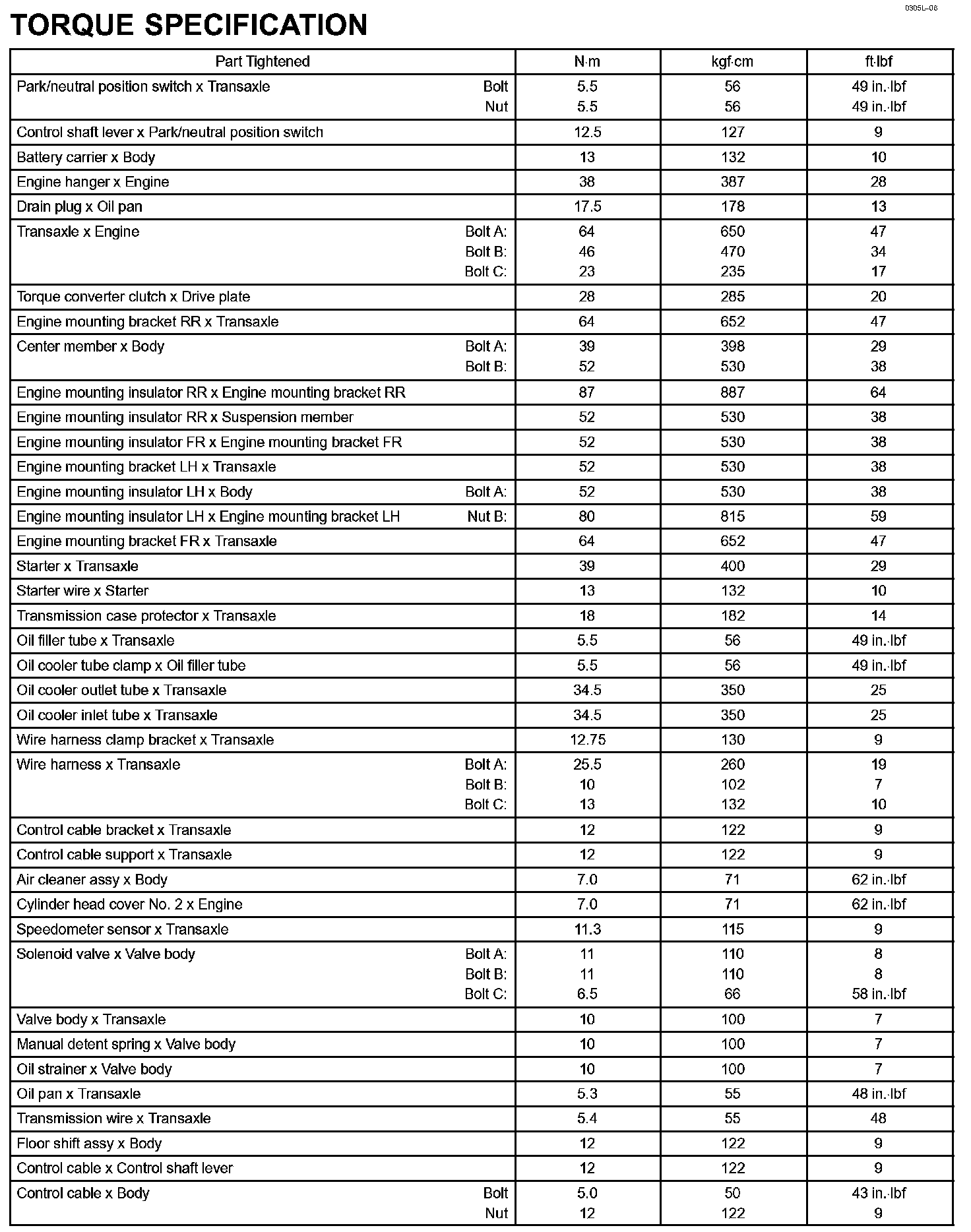

Automatic Transmission/Transaxle - Torque Specification:
