Component Tests and General Diagnostics

CIRCUIT DESCRIPTION
The ECU power source supplies a power to the actuator and the sensors, etc. when terminal GND and the cruise control ECU case are grounded.

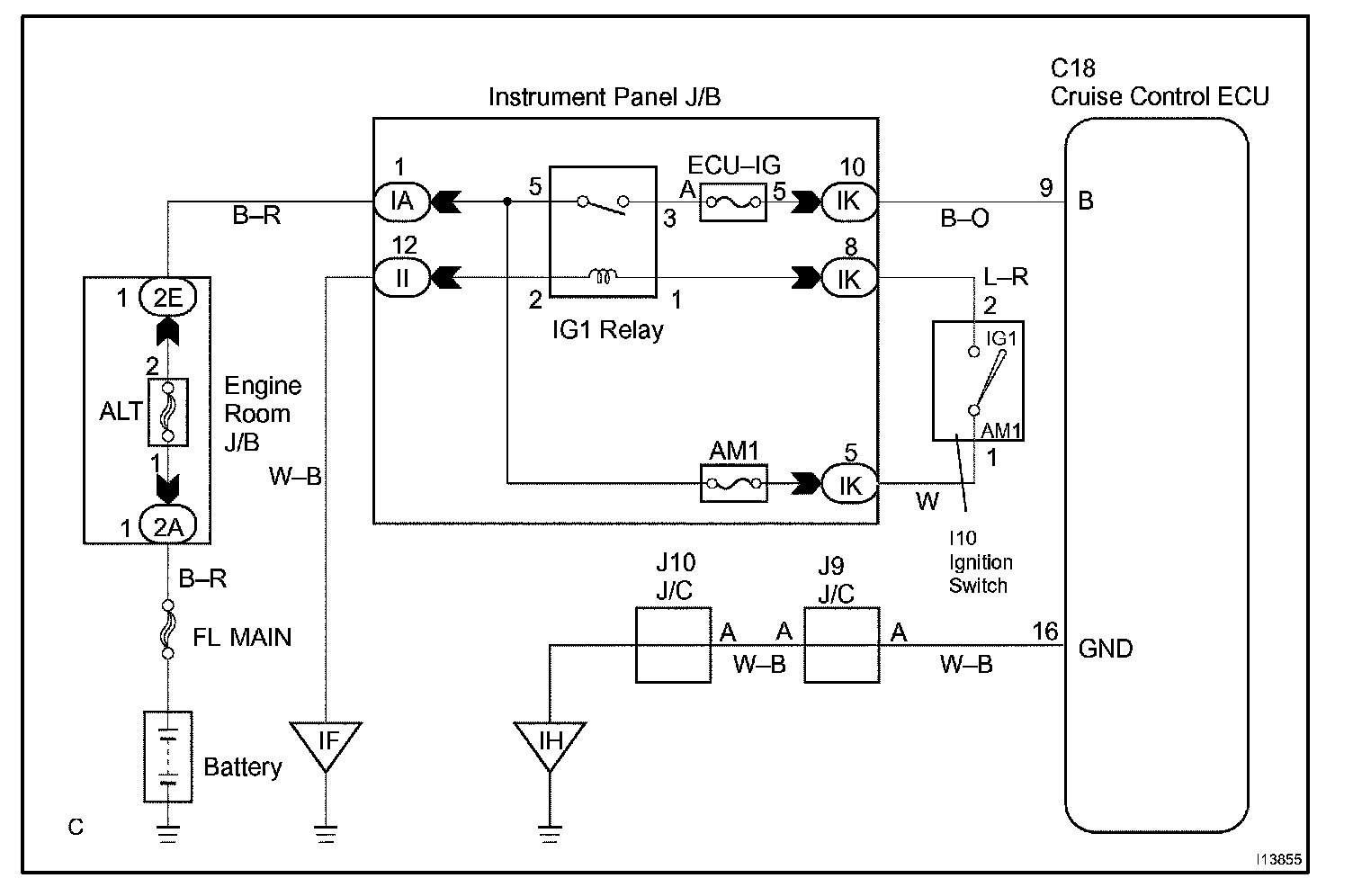

Wiring Diagram:

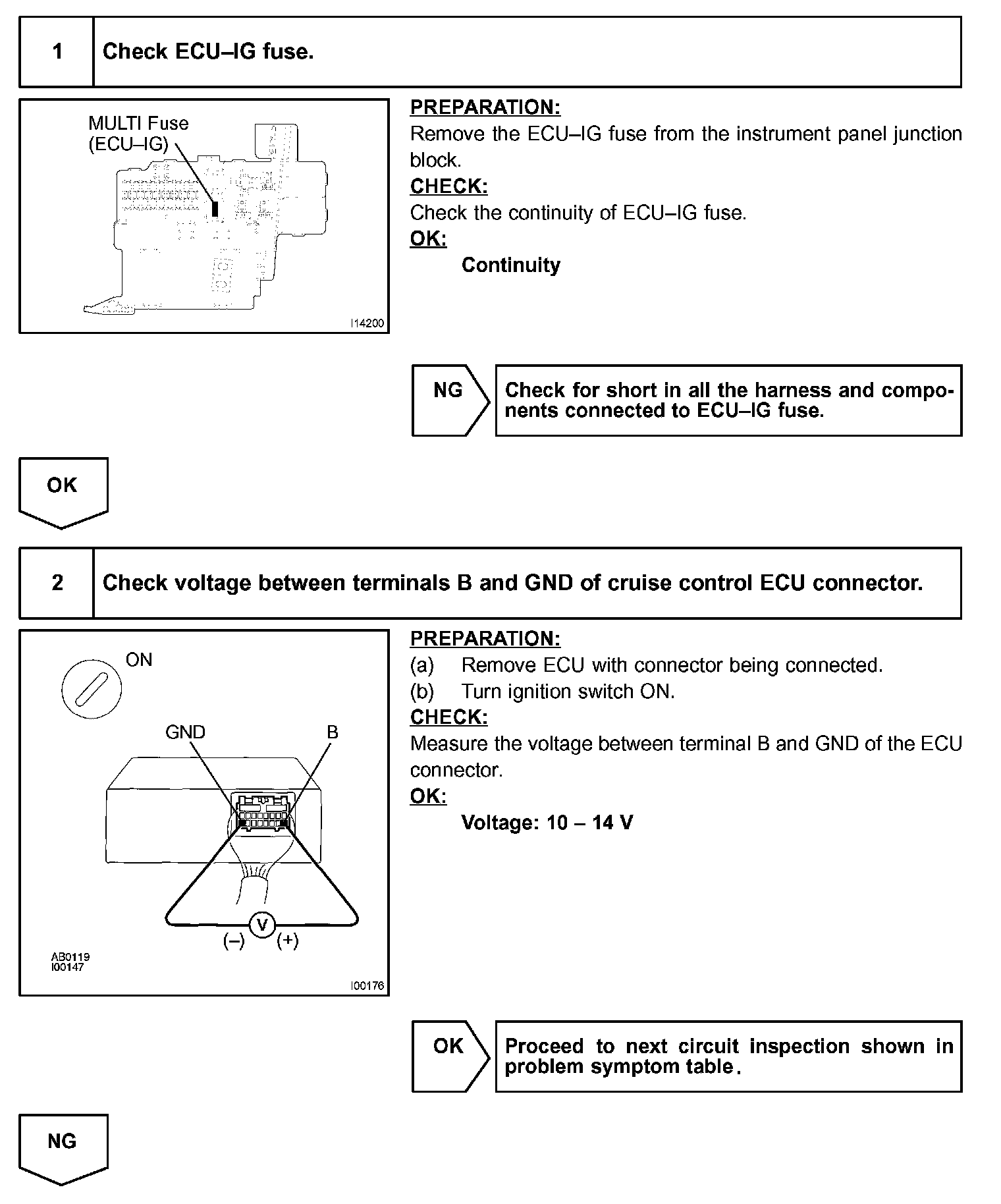

Step 1 - 2:

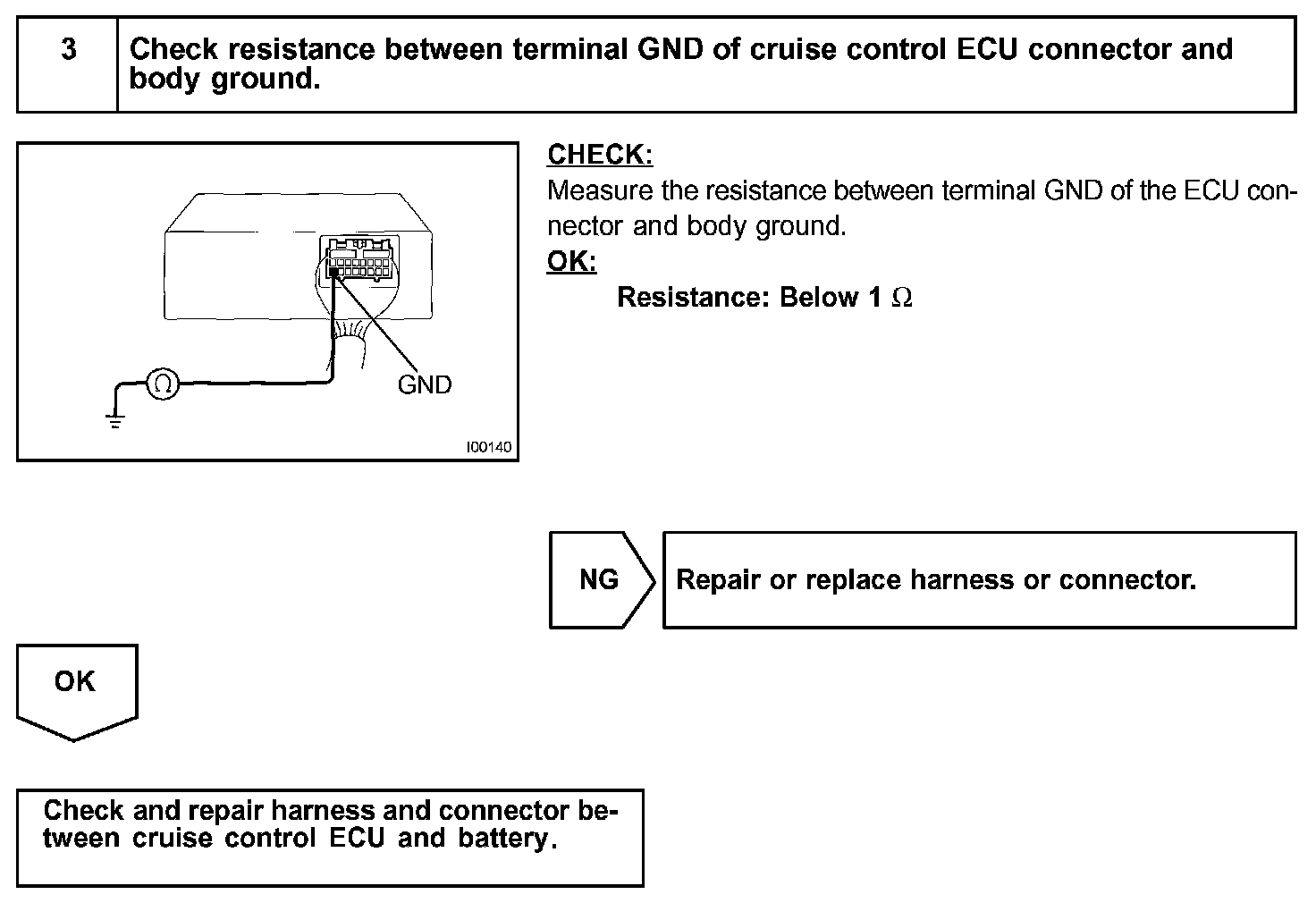

Step 3:

INSPECTION PROCEDURE
