Knock Sensor: Testing and Inspection
INSPECTIONINSPECT KNOCK SENSOR

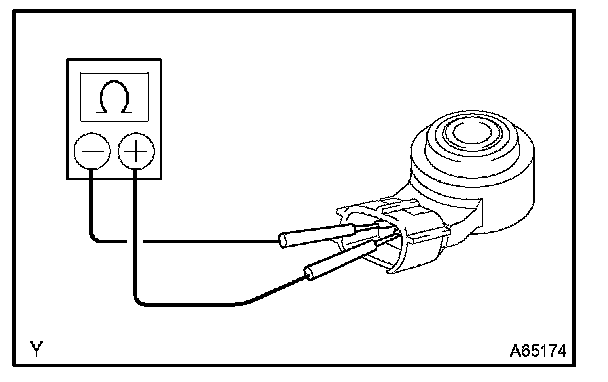

Using an ohmmeter, measure the resistance between the terminals.
Standard: 120 to 280 kOhms at 20 °C (68 °F)
HINT: If the result is not as specified, replace the sensor.
INSPECT KNOCK SENSOR
Using an ohmmeter, measure the resistance between the terminals.
Standard: 120 to 280 kOhms at 20 °C (68 °F)
HINT: If the result is not as specified, replace the sensor.
