Home >> Toyota >> 2004 >> Camry V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications

System Specifications

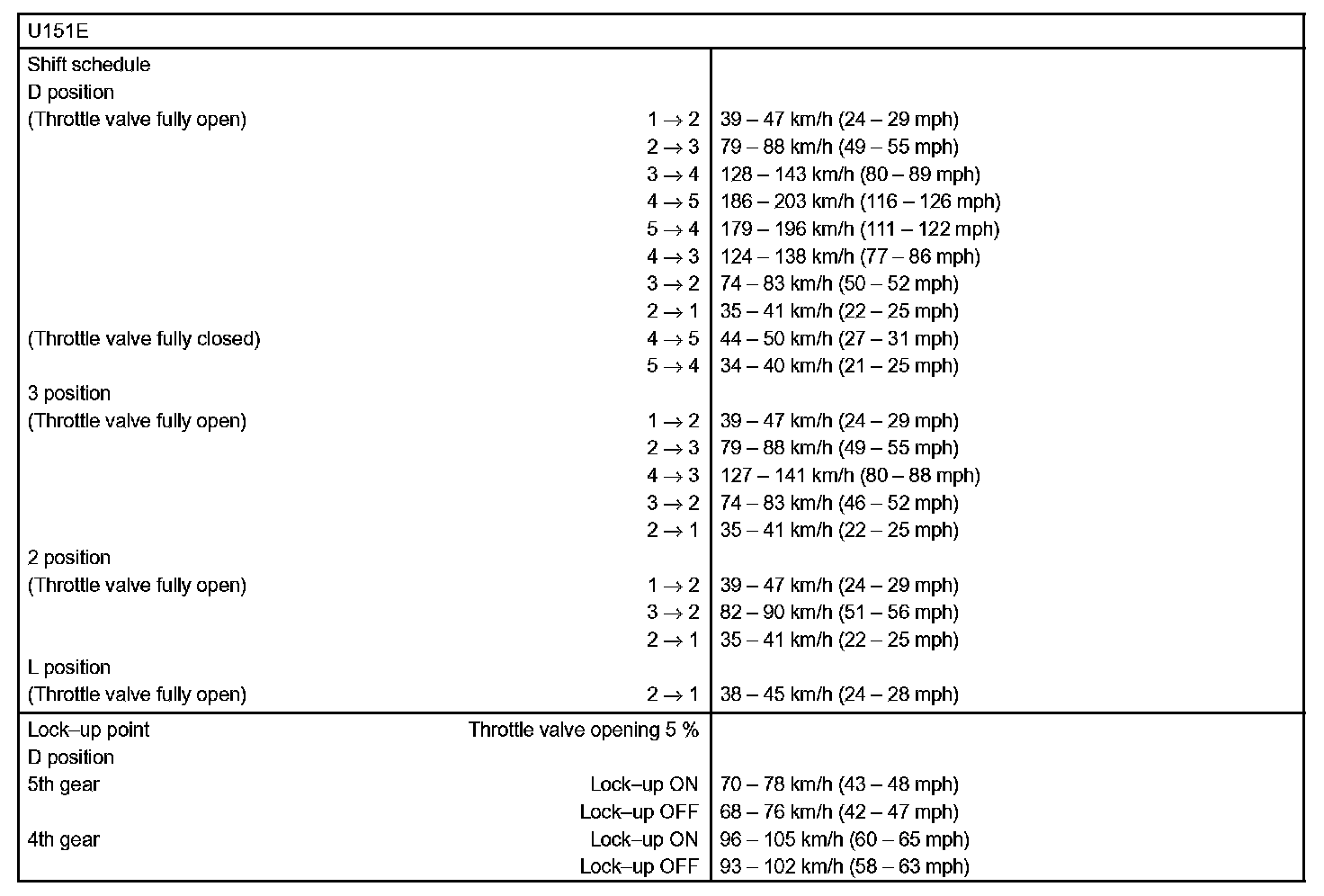

Automatic Transmission/Transaxle - Service Data Part 1:

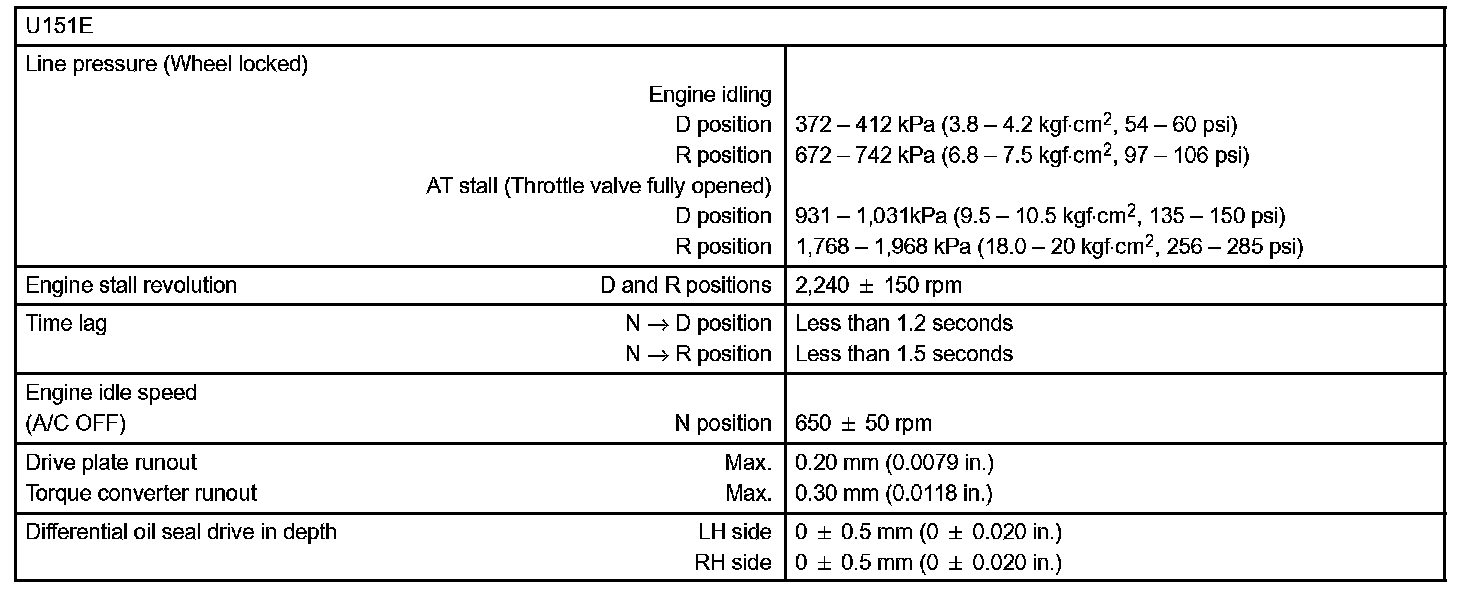

Automatic Transmission/Transaxle - Service Data Part 2:




Automatic Transmission/Transaxle - Torque Specification Part 1:




Automatic Transmission/Transaxle - Torque Specification Part 2:
