Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

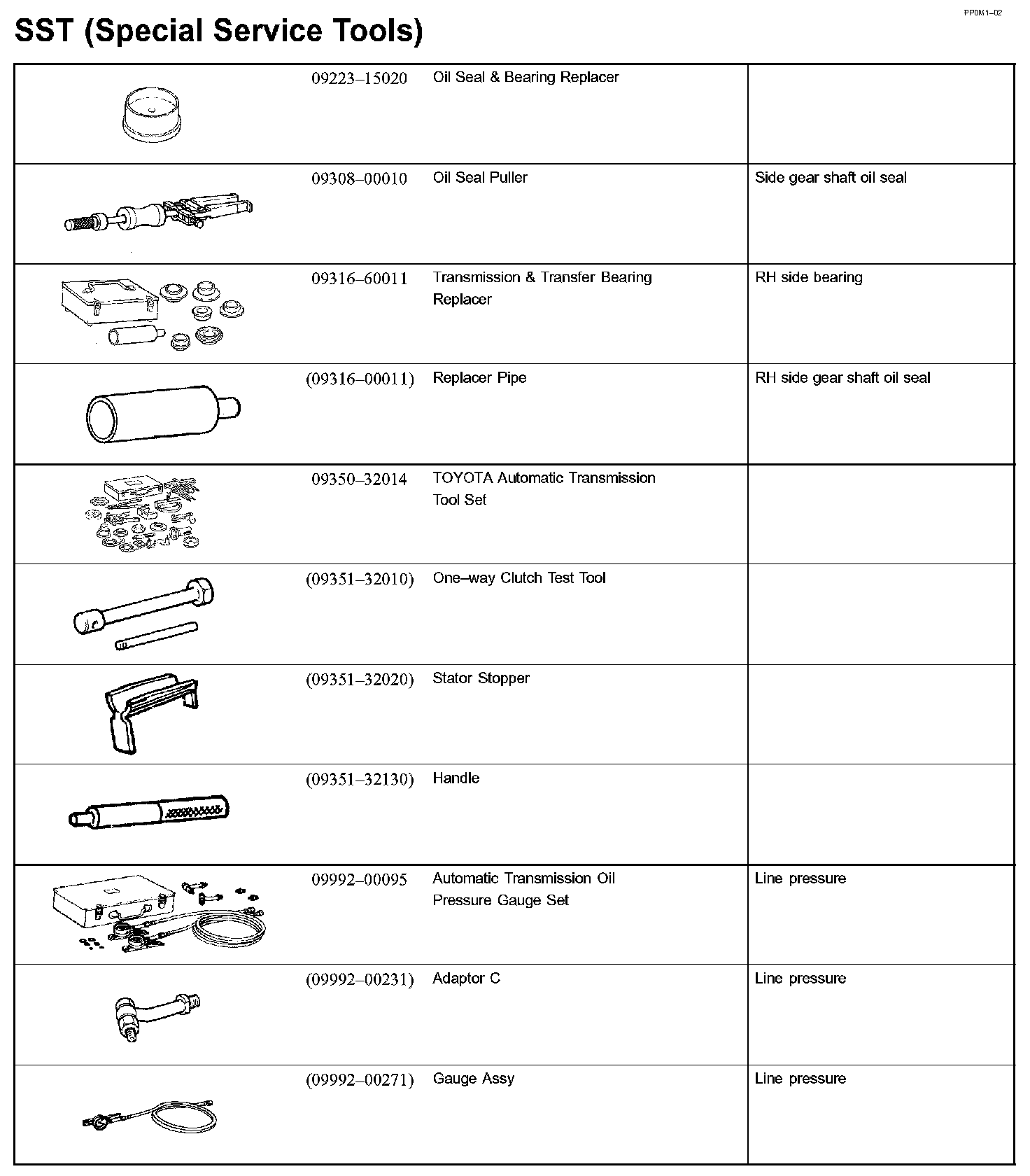

Automatic Transaxle - SST (Special Service Tools):

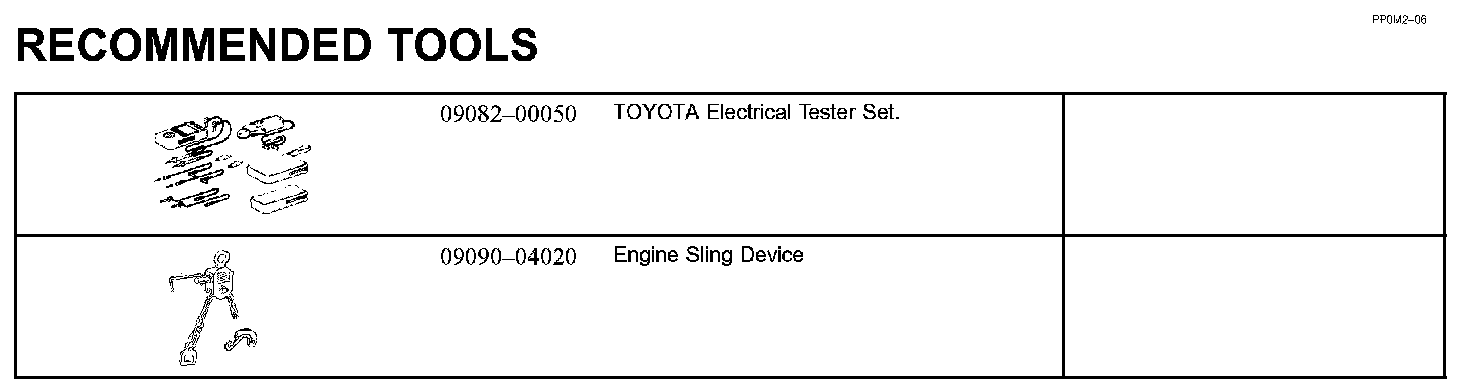

Automatic Transaxle - Recommended Tools:

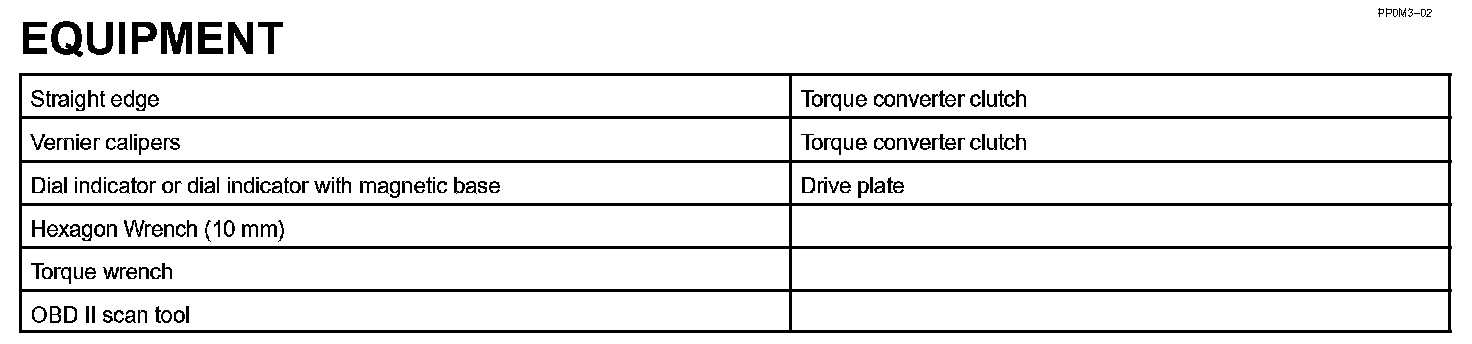

Automatic Transaxle - Equipment:
