Transmission Installation

Part 1 Of 2:

Part 2 Of 2:

INSTALLATION

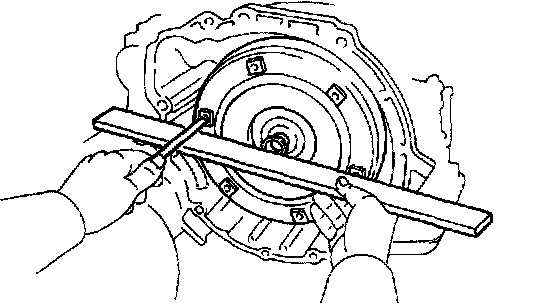

1. CHECK TORQUE CONVERTER CLUTCH INSTALLATION
Using a scale and a straight edge, measure the distance from the installed surface to the transaxle housing.
Correct distance: 13.7 mm (0.539 inch) or more
2. TRANSAXLE INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, check and inspect the following items.
^ Fill ATF and check fluid level.
^ Check front wheel alignment.
^ Do the road test.
^ Adjust the hood.

NOTICE:
W/ VSC: After installation, perform the steering angle sensor zero point calibration.

TORQUE CONVERTER CLUTCH AND DRIVE PLATE
INSPECTION





1. INSPECT ONE-WAY CLUTCH
a. Install SST into the inner race of the one-way clutch, SST 09350-32014 (09351-32010)





b. Install SST so that it fits in the notch of the converter clutch hub and outer race of the one-way clutch.
SST 09350-32014 (09351-32020)





c. With the torque converter clutch standing on its side, the clutch locks when turned counterclockwise, and rotates freely and smoothly clockwise.
If necessary, clean the converter and retest the clutch.
Replace the converter if the clutch still fails the test.





2. MEASURE DRIVE PLATE RUNOUT AND INSPECT RING GEAR
a. Set up a dial indicator, and measure the drive plate runout.
b. Check the damage of the ring gear.
Maximum runout: 0.20 mm (0.0079 inch)
If the runout is not within the specification or ring gear is damaged, replace the drive plate.
Torque: 83 Nm (850 kgf-cm, 61 ft. lbs.)





3. MEASURE TORQUE CONVERTER CLUTCH SLEEVE RUNOUT
a. Temporarily mount the torque converter clutch to the drive plate. Set up a dial indicator and measure the torque converter clutch sleeve runout.
Maximum runout: 0.30 mm (0.0118 inch)
If the runout is not within the specification, try to correct by reorienting the installation of the converter clutch.

HINT: Mark the position of the converter clutch to ensure the correct installation.

b. Remove the torque converter clutch.
