DIFFERENTIAL OIL SEALON-VEHICLE REPAIR
1. REMOVE FRONT DRIVE SHAFT
2. REMOVE SIDE GEAR SHAFT OIL SEAL

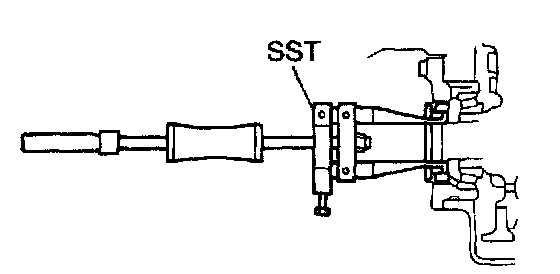

Using SST pull out the oil seal. SST 09308-00010
3. INSTALL LEFT SIDE GEAR SHAFT OIL SEAL

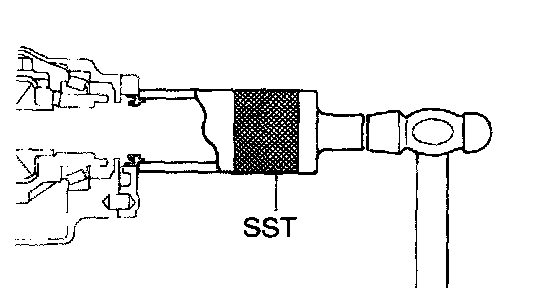

a. Using SST and a hammer, drive in a new oil seal.
SST 09223-15020, 09350-32014 (09351-32130)
Oil seal depth: 0 ± 0.5 mm (0 ±t 0.02 inch)
b. Coat the lip of the oil seal with MP grease.
4. INSTALL RIGHT SIDE GEAR SHAFT OIL SEAL

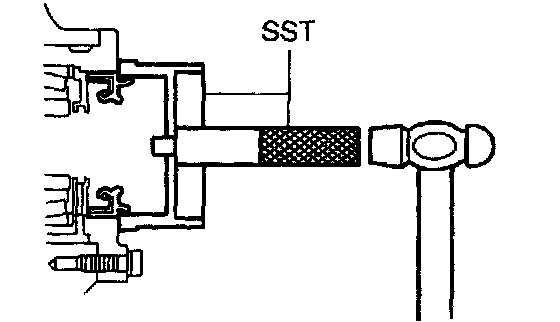

a. Using SST and a hammer, drive in a new oil seal.
SST 09316-60010 (09316-00010)
Oil seal depth: 0 ± 0.5 mm (0 ± 0.02 inch)
b. Coat the lip of the oil seal with MP grease.
5. INSTALL FRONT DRIVE SHAFT
6. CHECK TRANSAXLE FLUID LEVEL
