Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Tools and Equipment

Starting System: Tools and Equipment

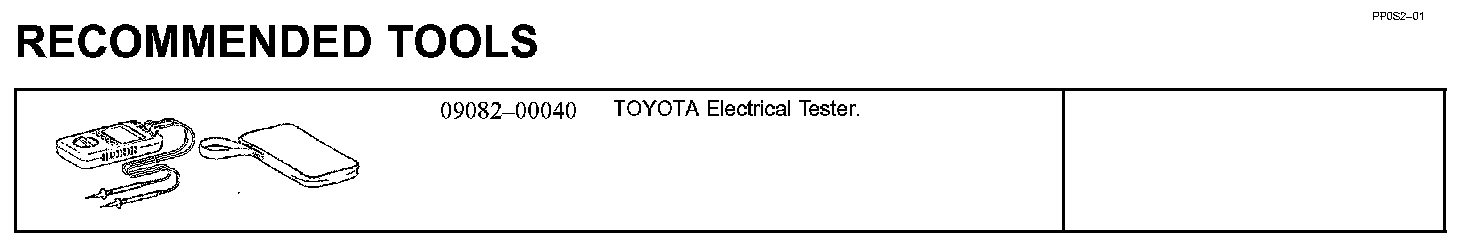

Starting - Recommended Tools:

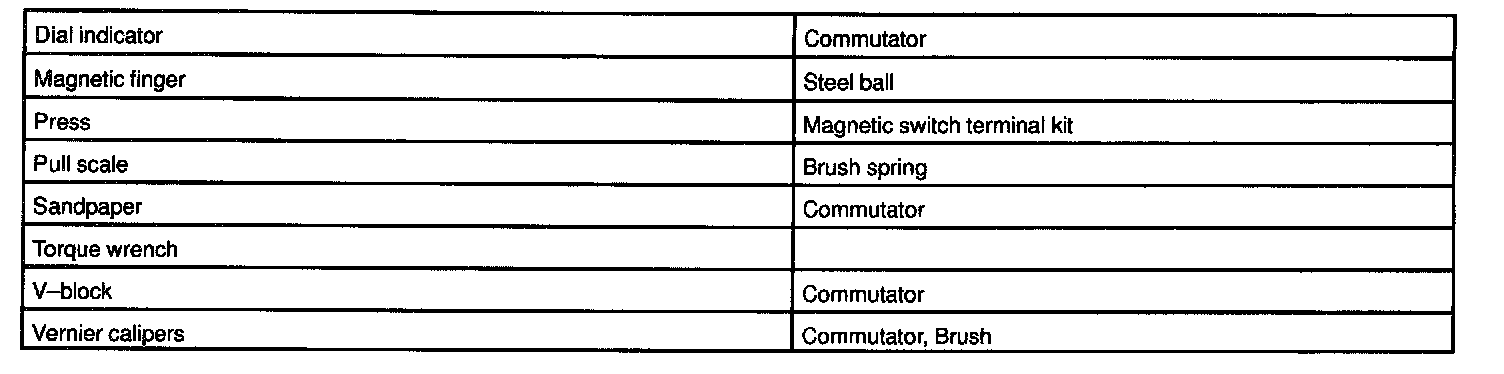

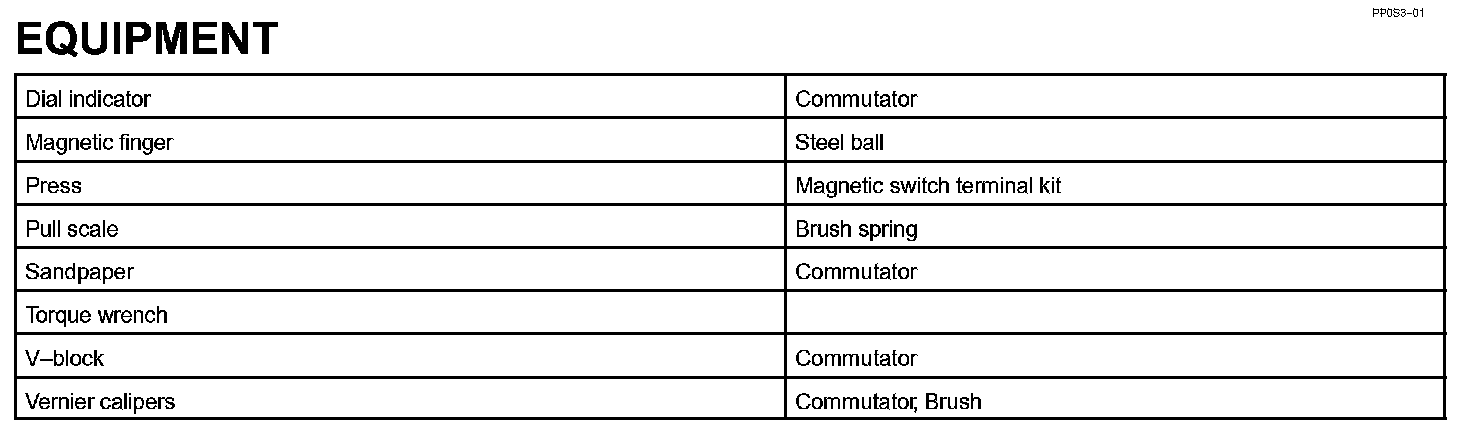

Starting - Equipment:

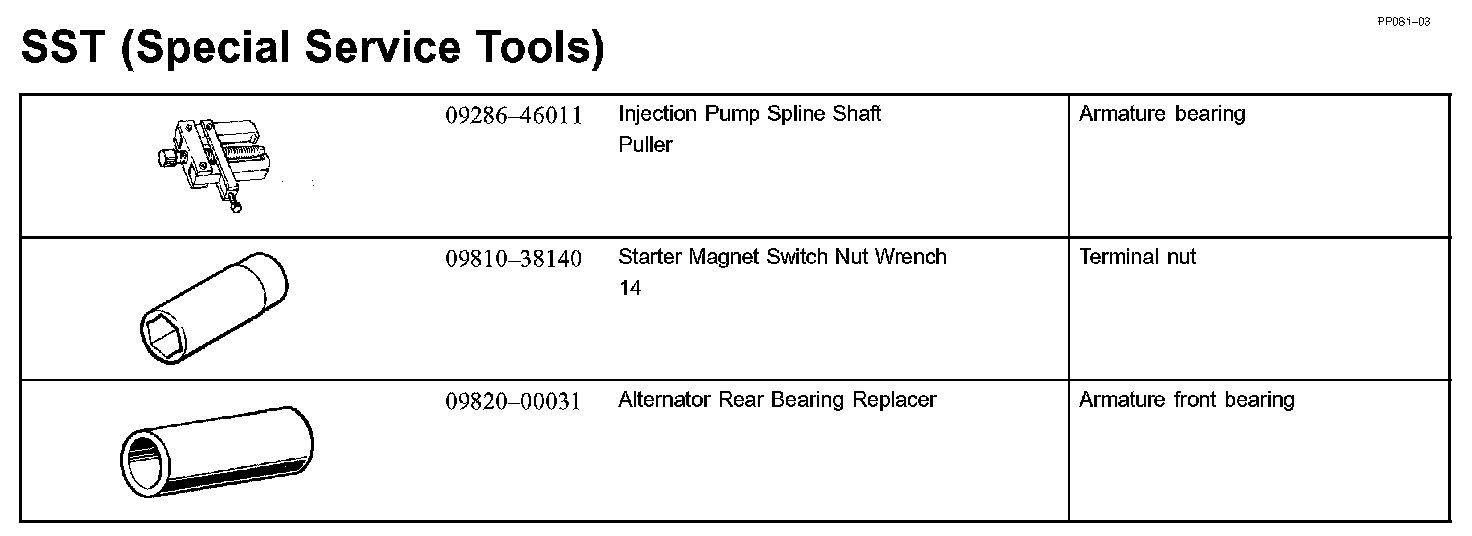

Starting - SST (Special Service Tools):

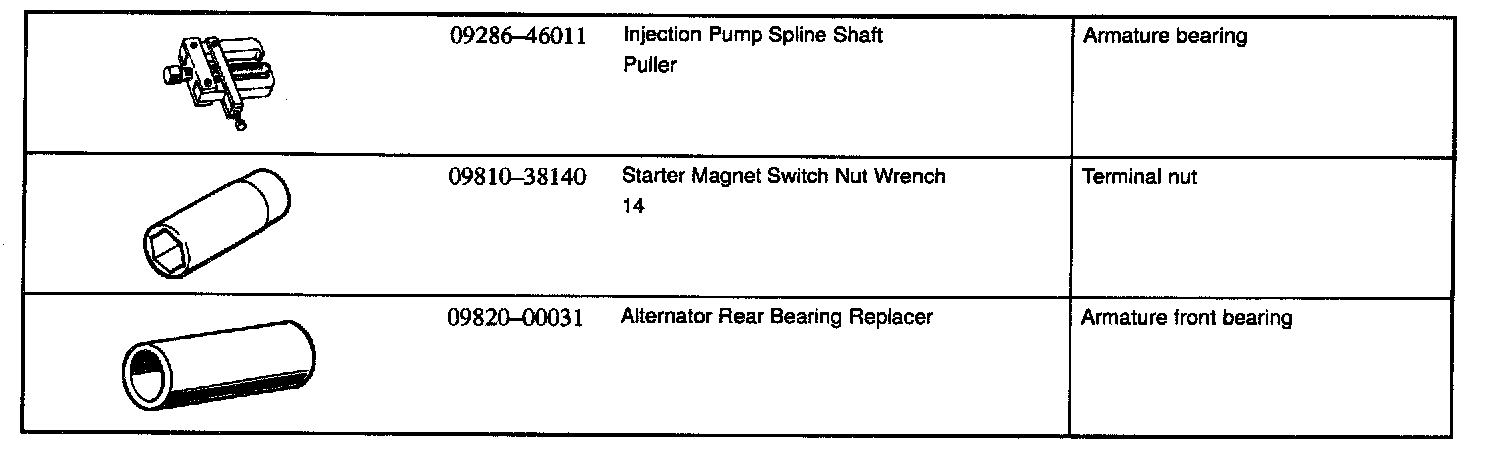

Starting - SST (Special Service Tools):

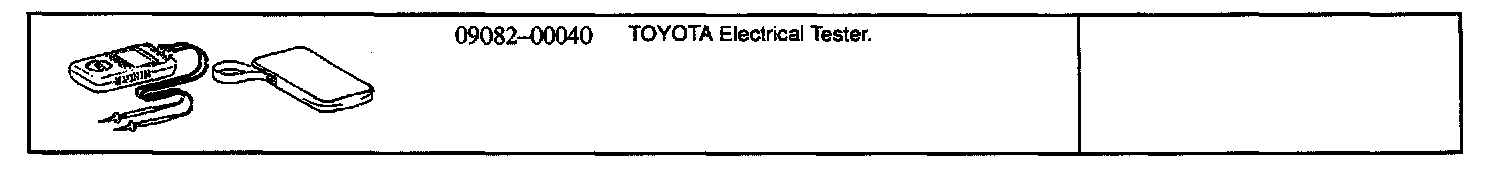

Starting - Recommended Tools:



Starting - Equipment:
