Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Specifications >> Mechanical Specifications

Mechanical Specifications

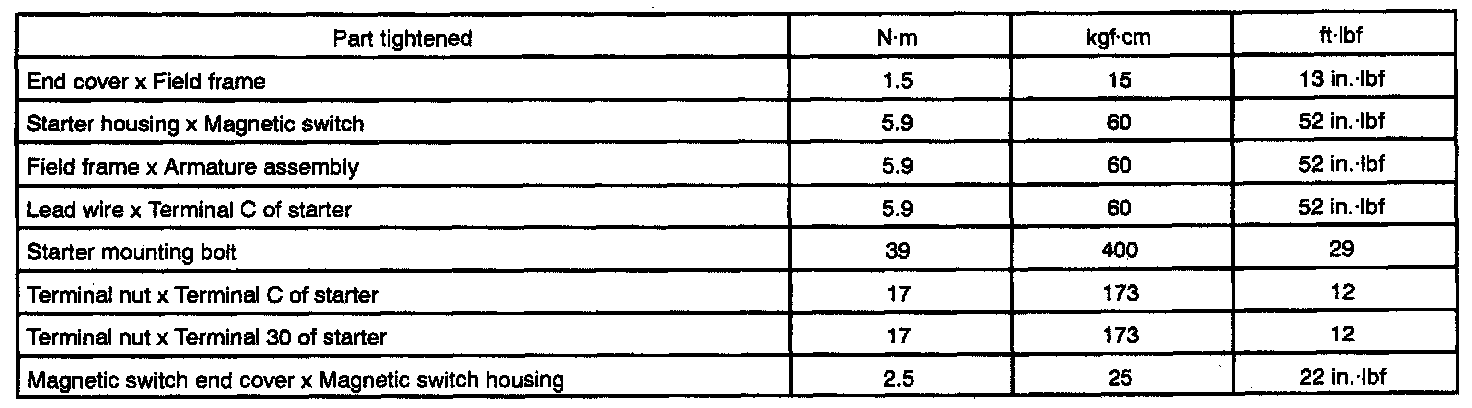

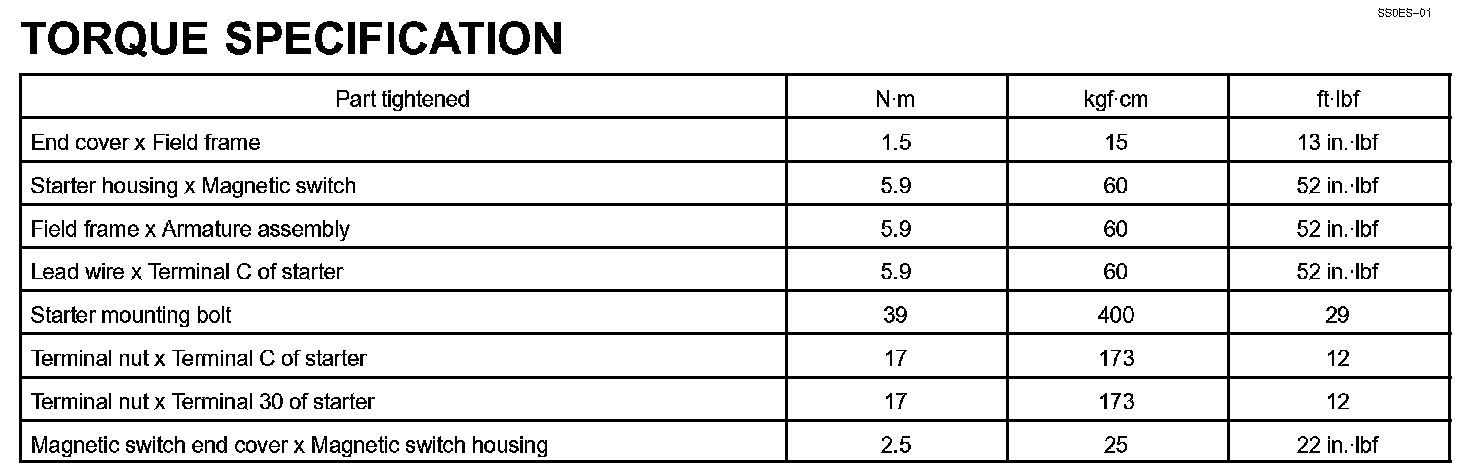

Starting - Torque Specification:



Starting - Torque Specification:
