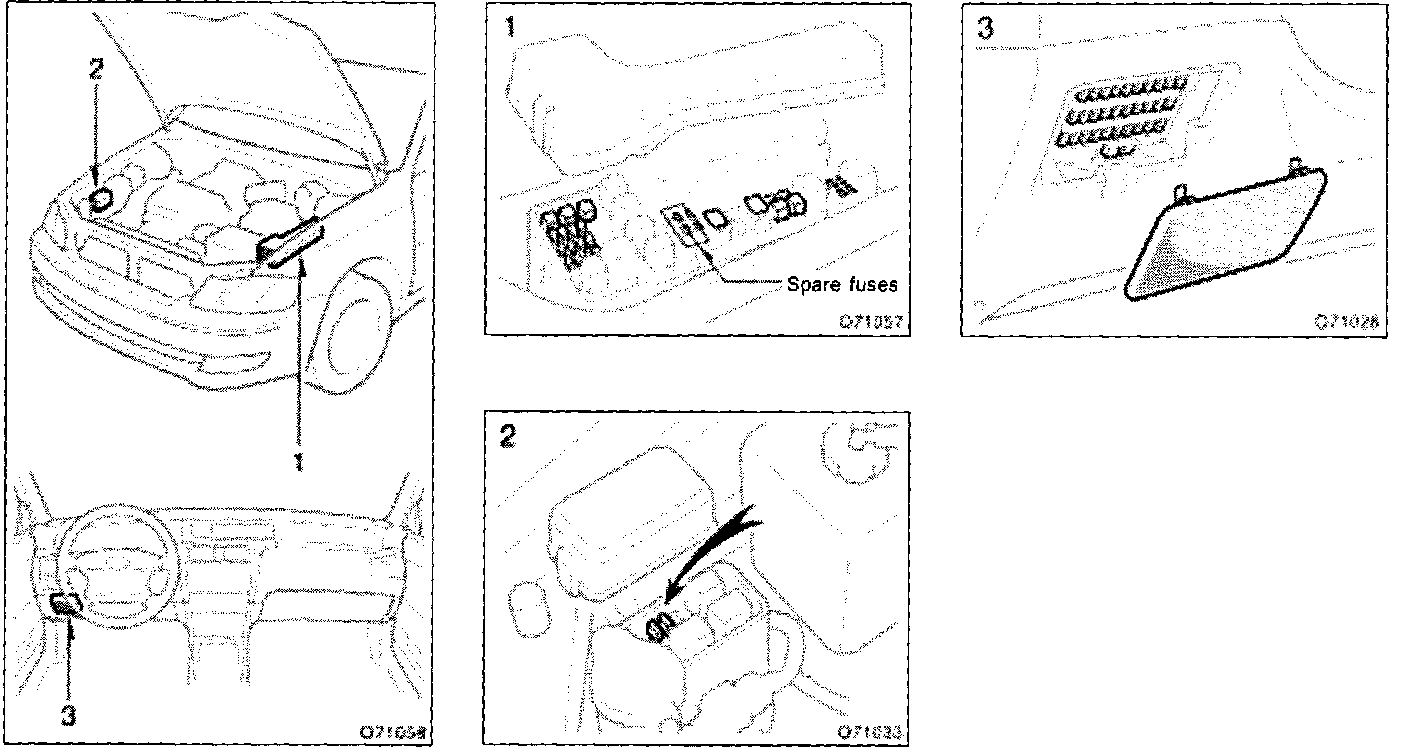

Relay Box: Locations

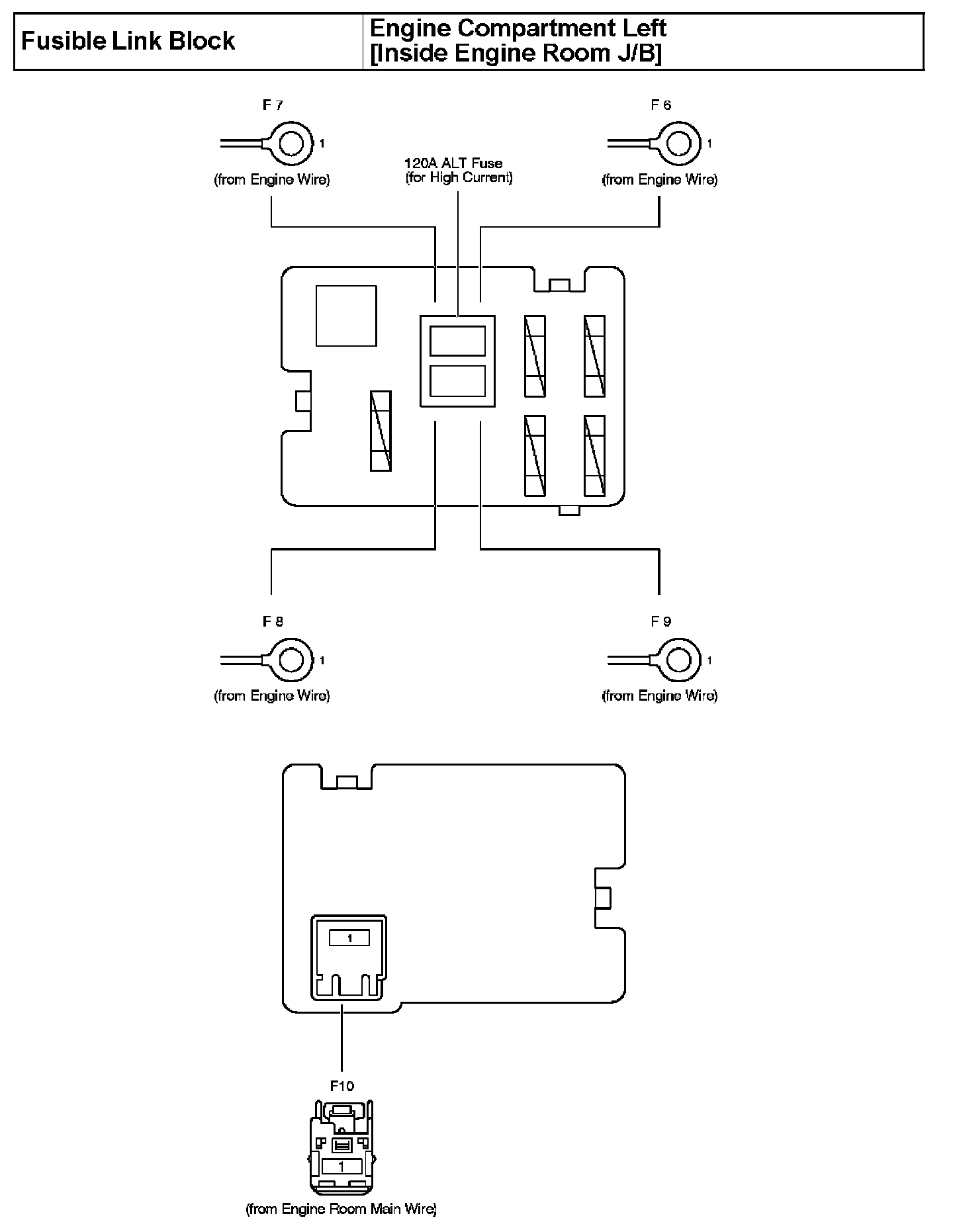

Fusible Link Block - Engine Compartment Left [Inside Engine Room J/B]:

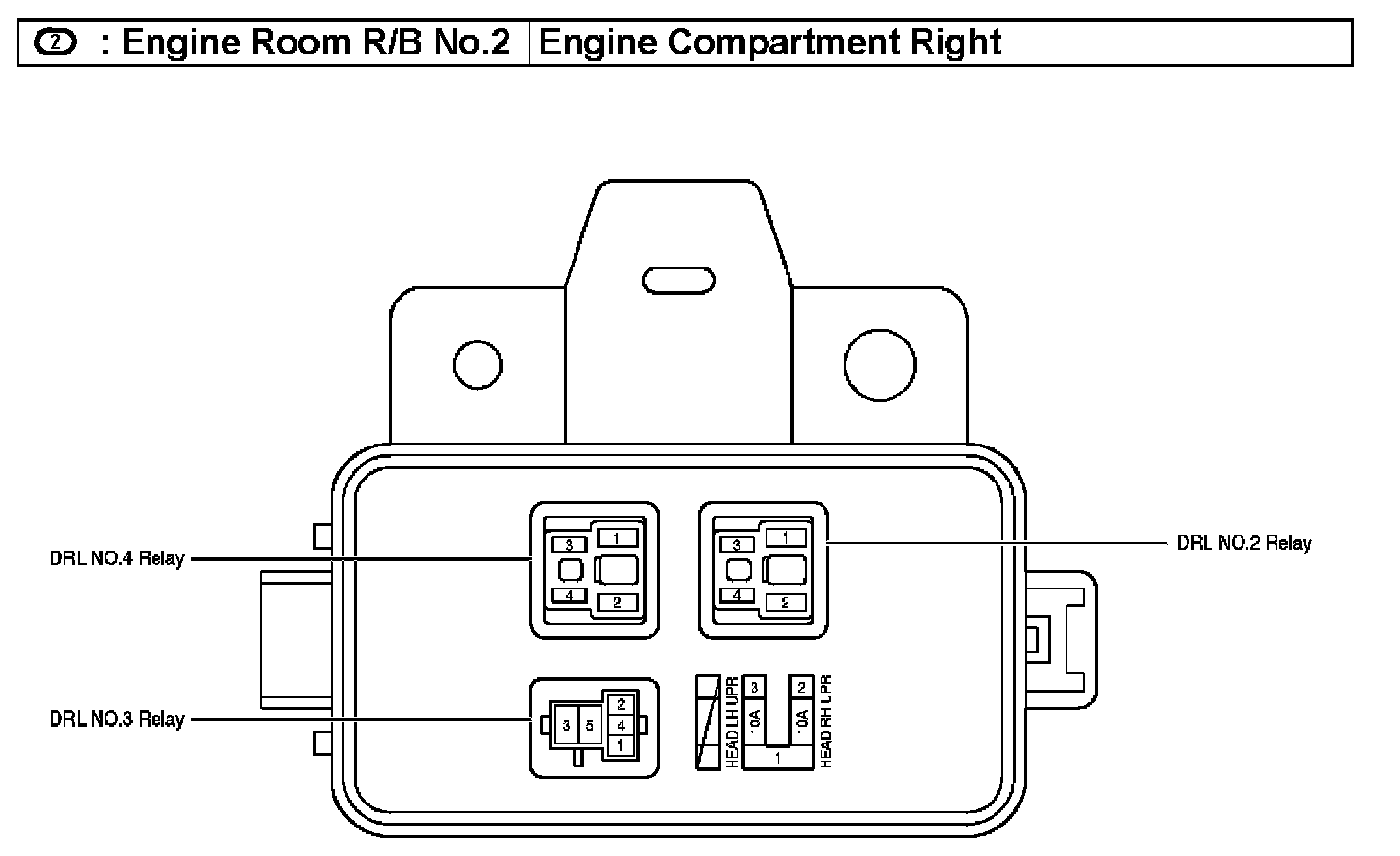

Engine Room R/B No.2 - Engine Compartment Right:

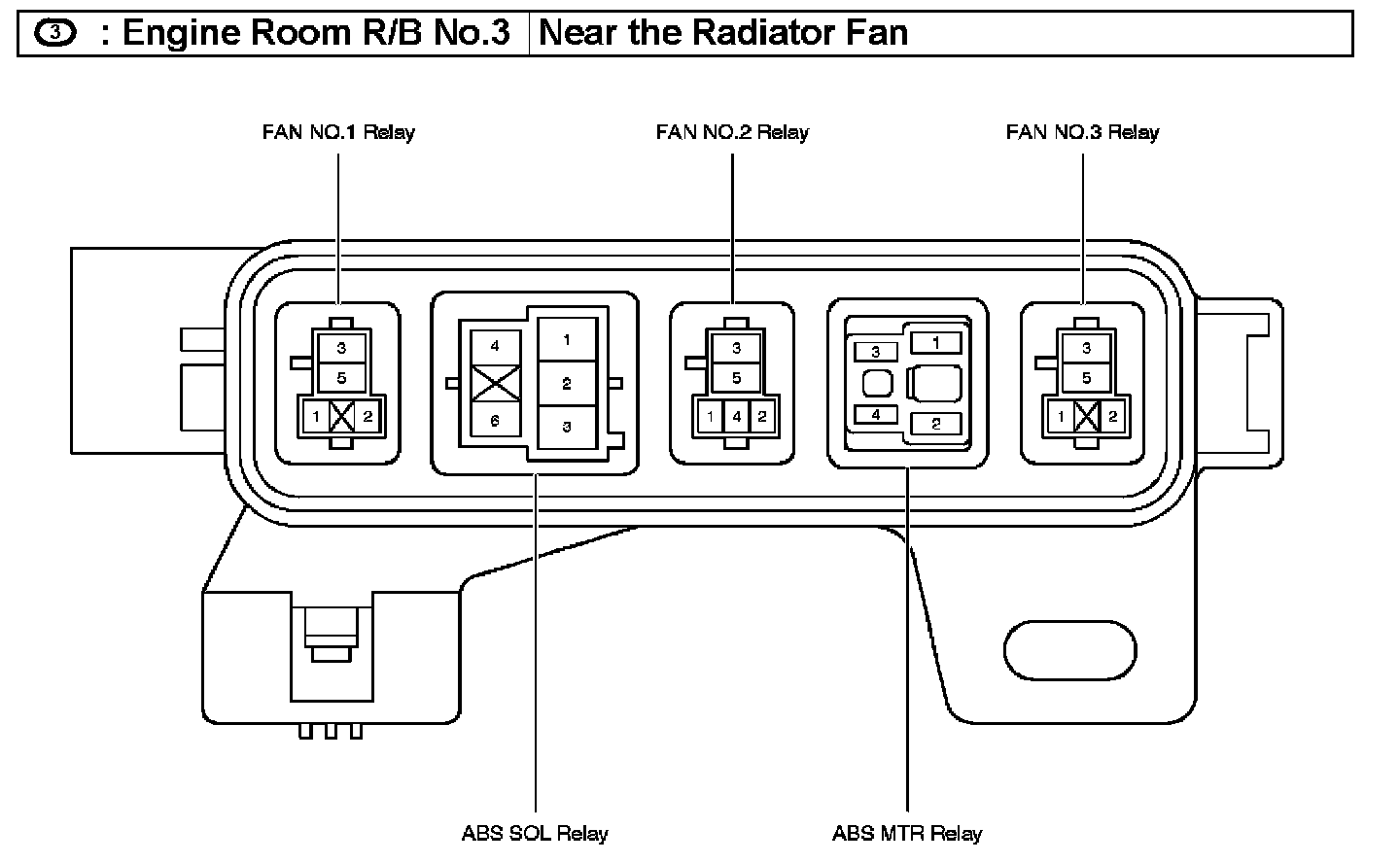

Engine Room R/B No.3 - Near The Radiator Fan:

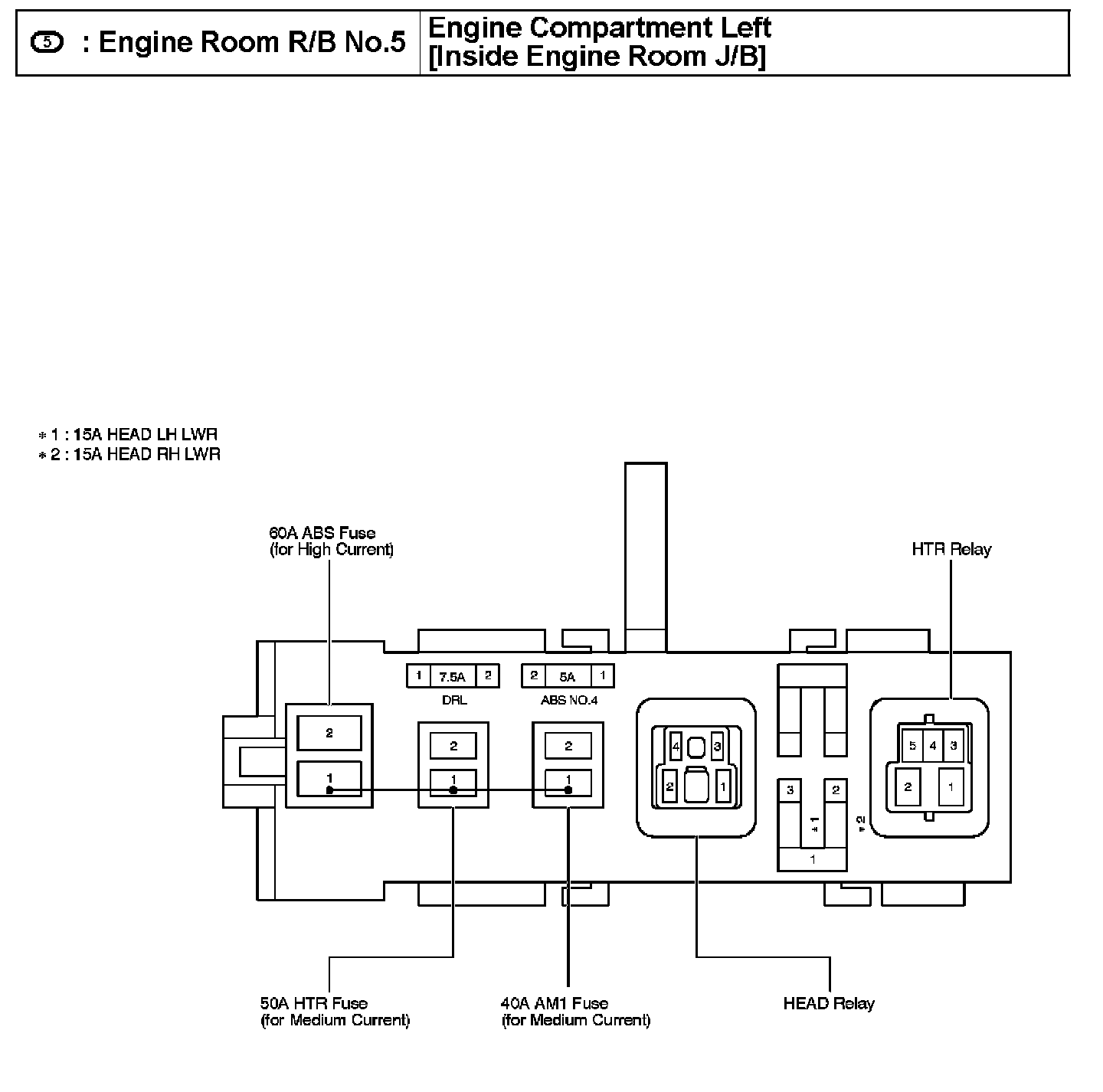

Engine Room R/B No.5 - Engine Compartment Left [Inside Engine Room J/B]:

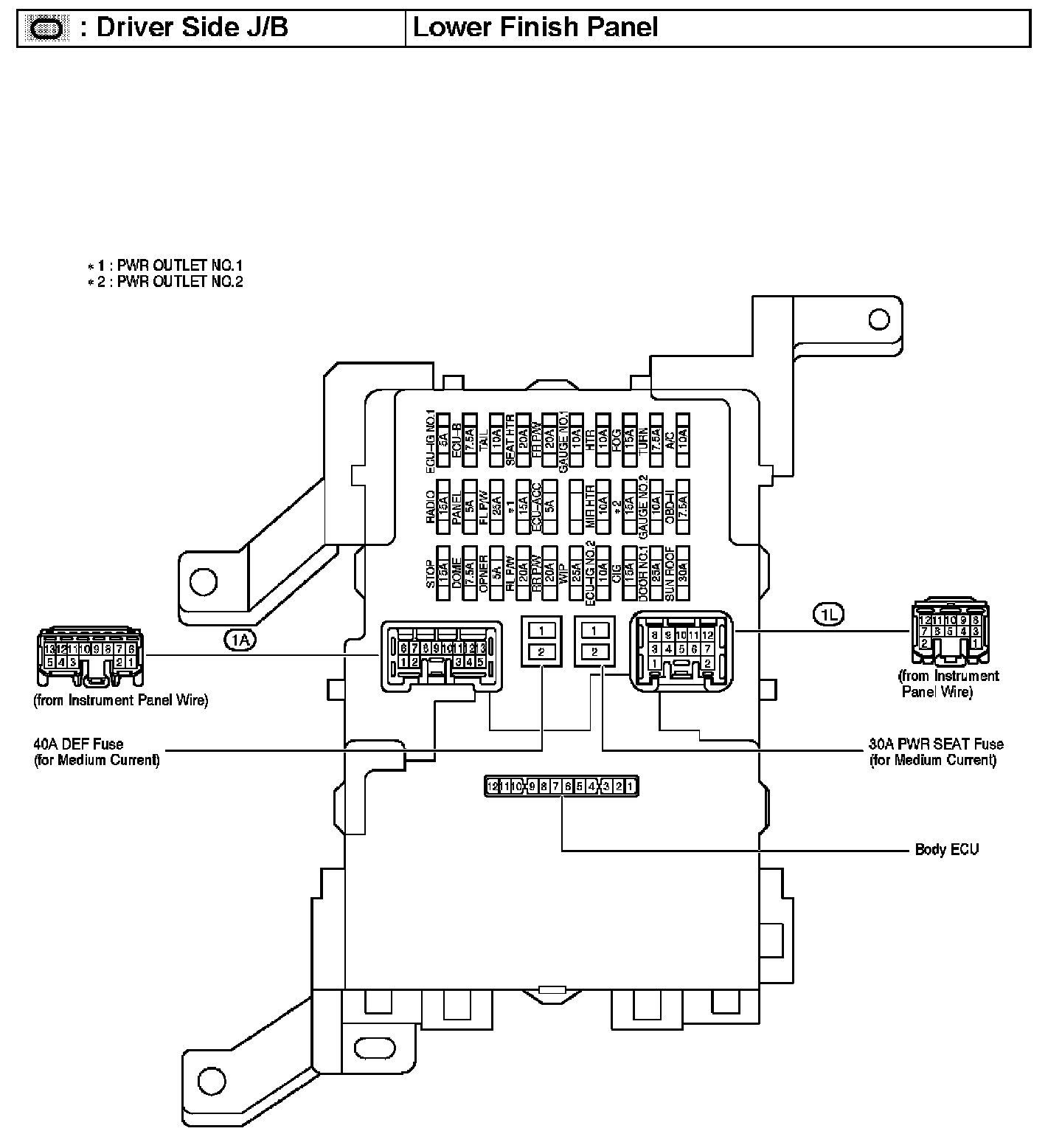

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

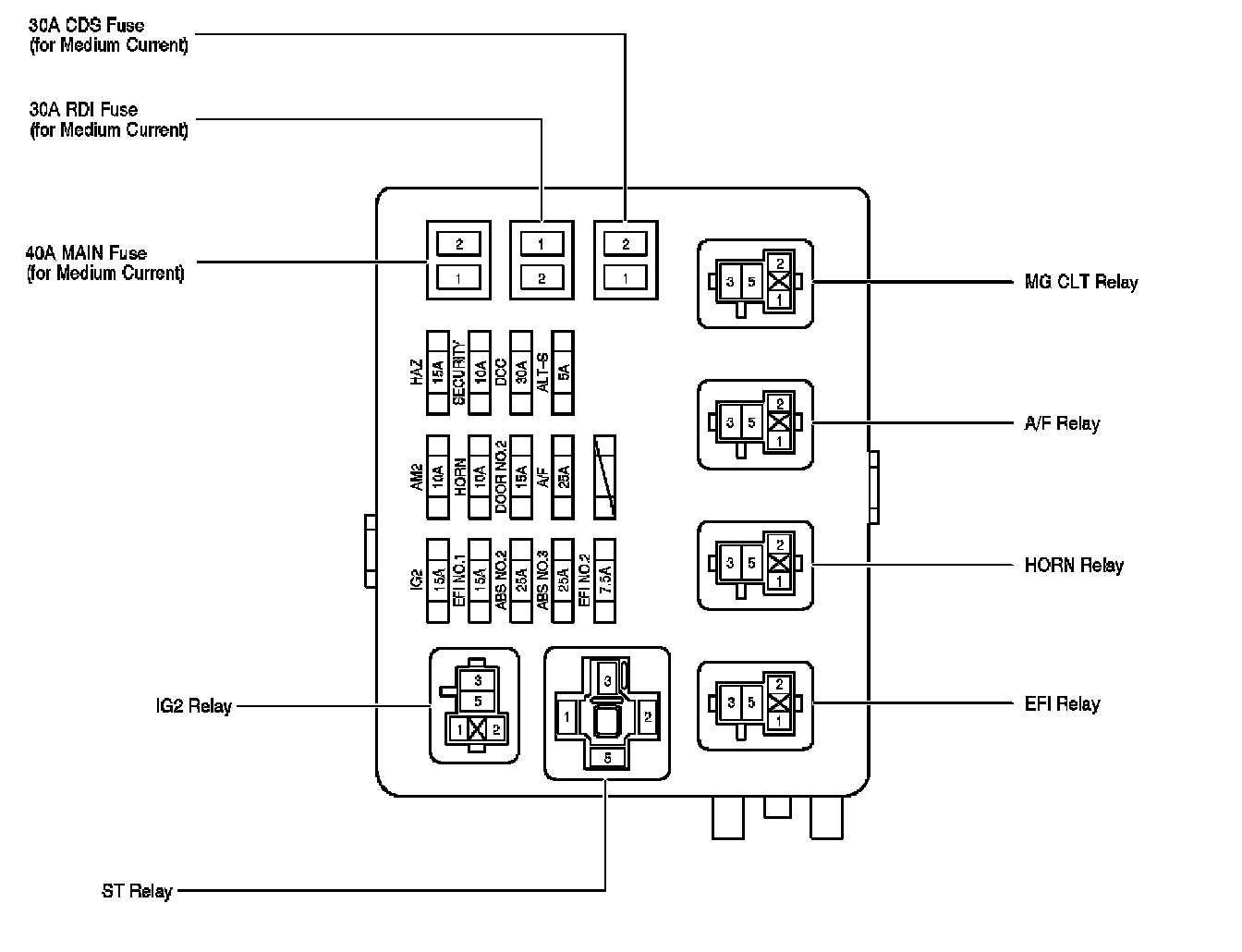

Engine Room J/B - Engine Compartment Left:

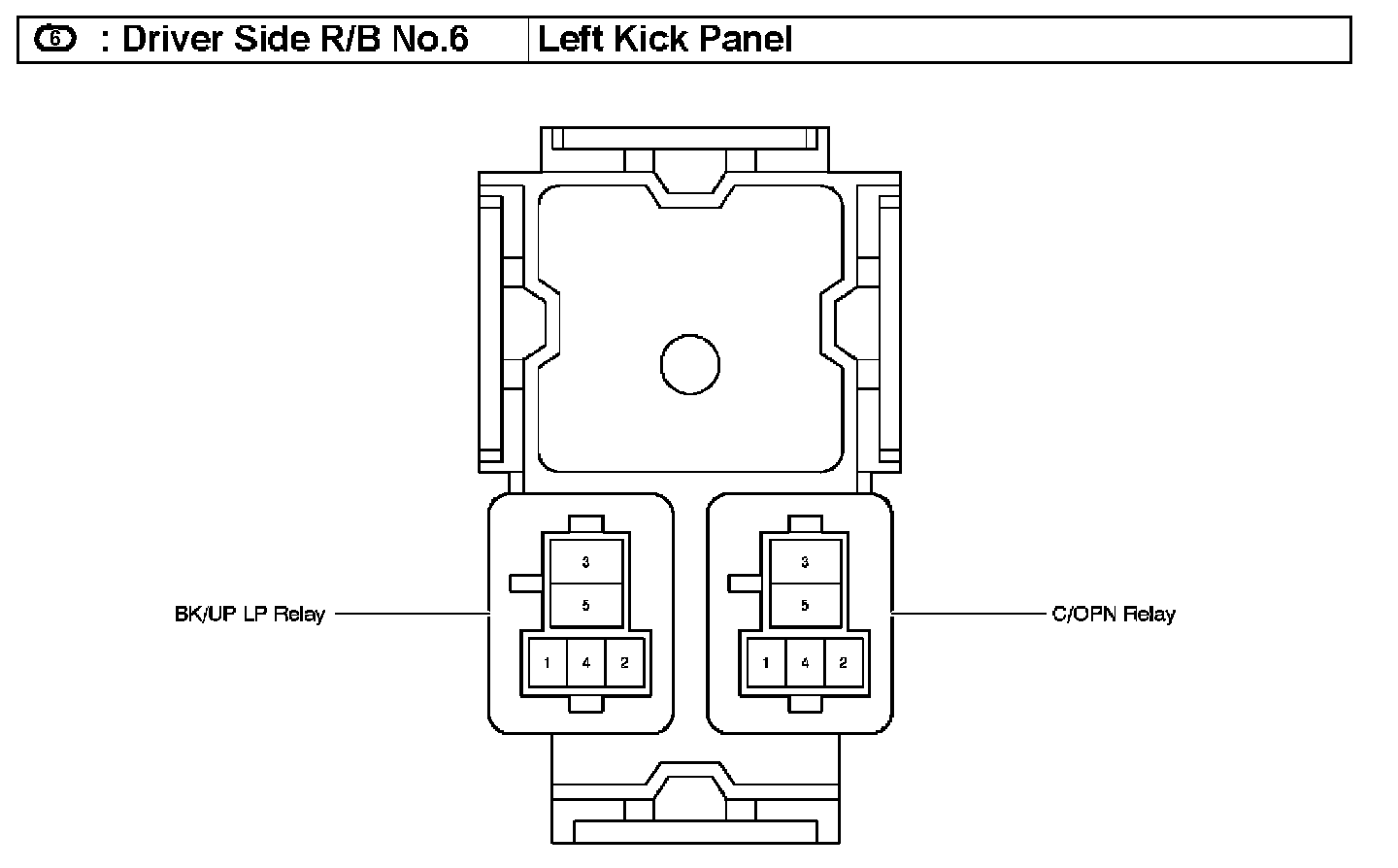

Driver Side R/B No.6 - Left Kick Panel:

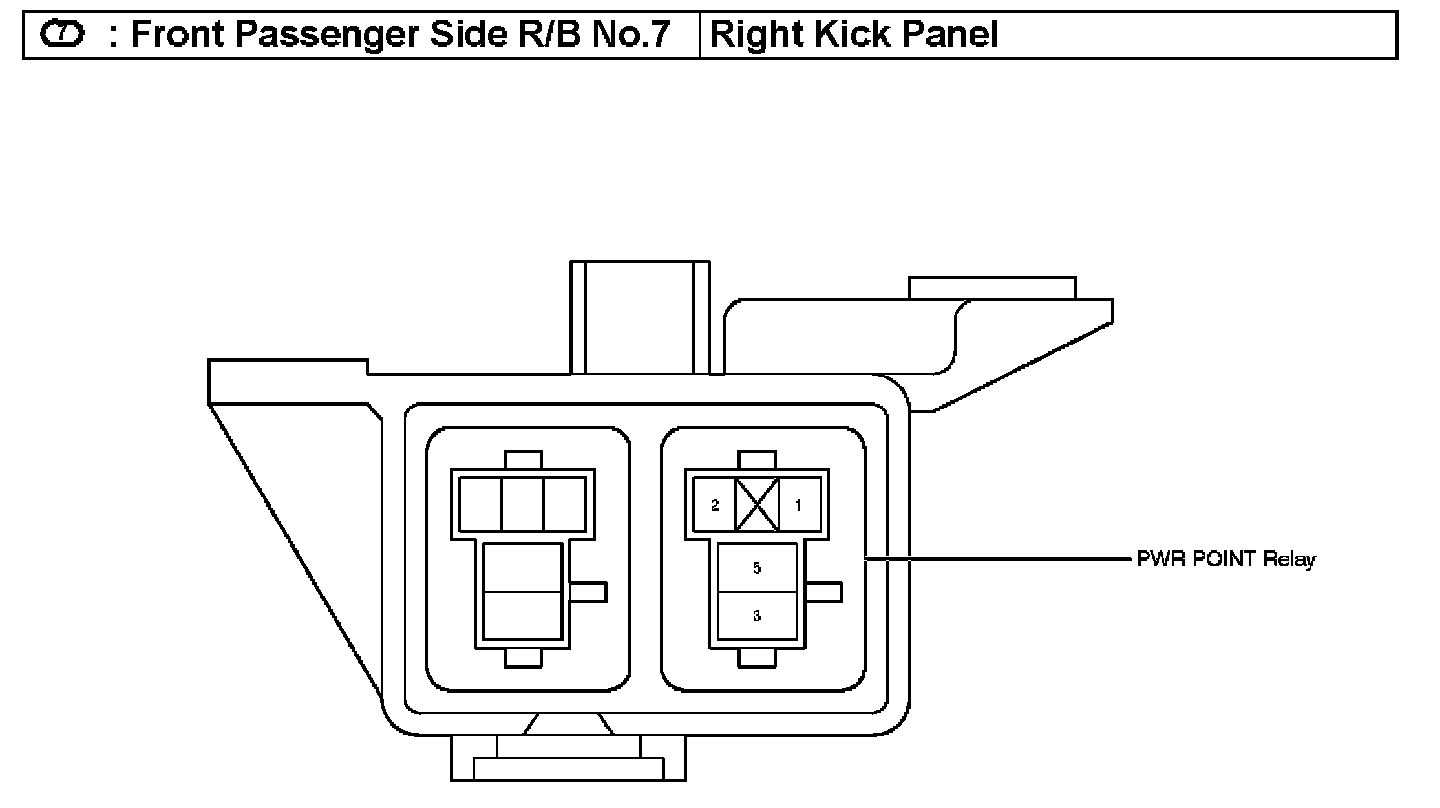

Front Passenger Side R/B No.7 - Right Kick Panel:

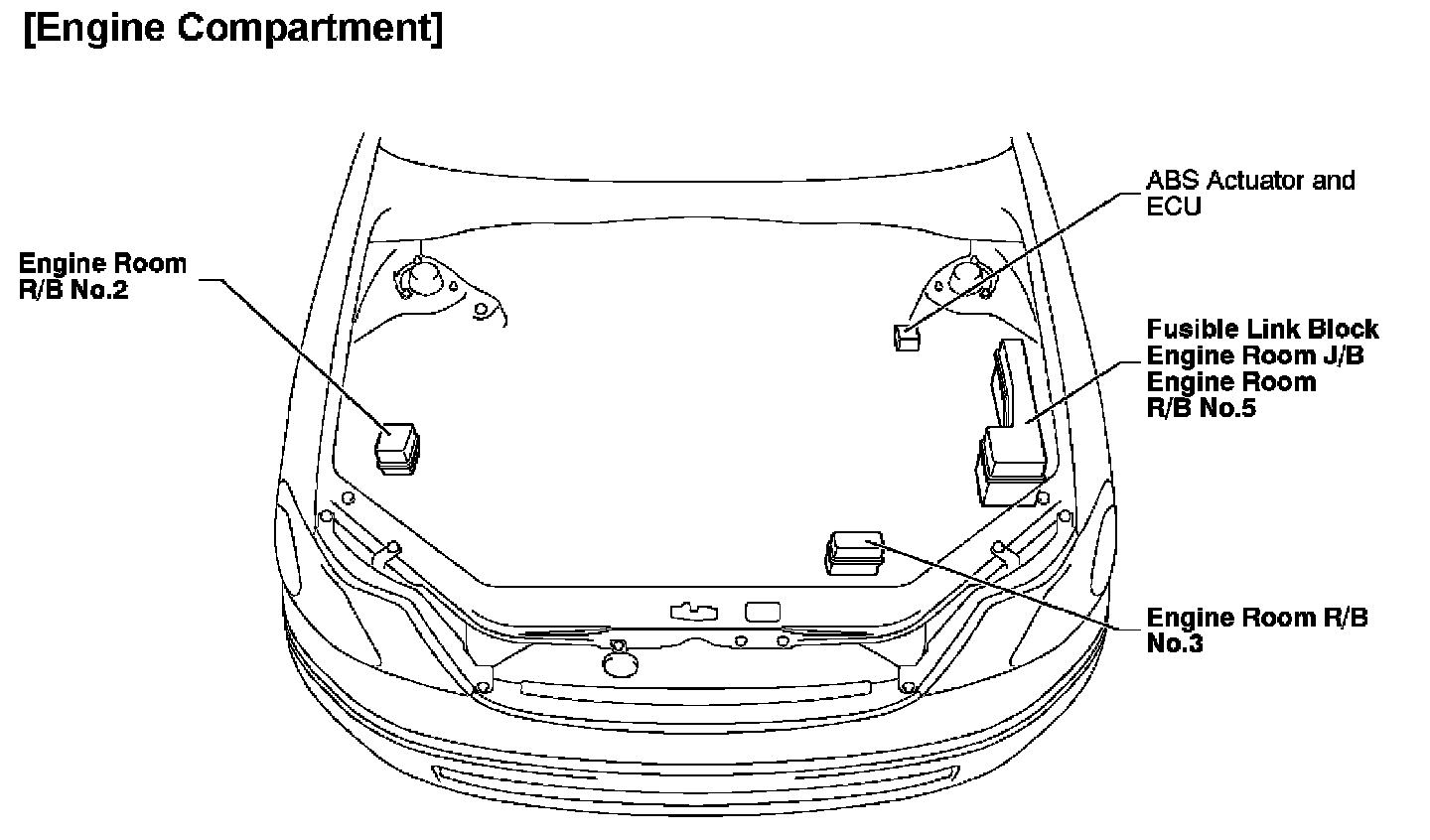

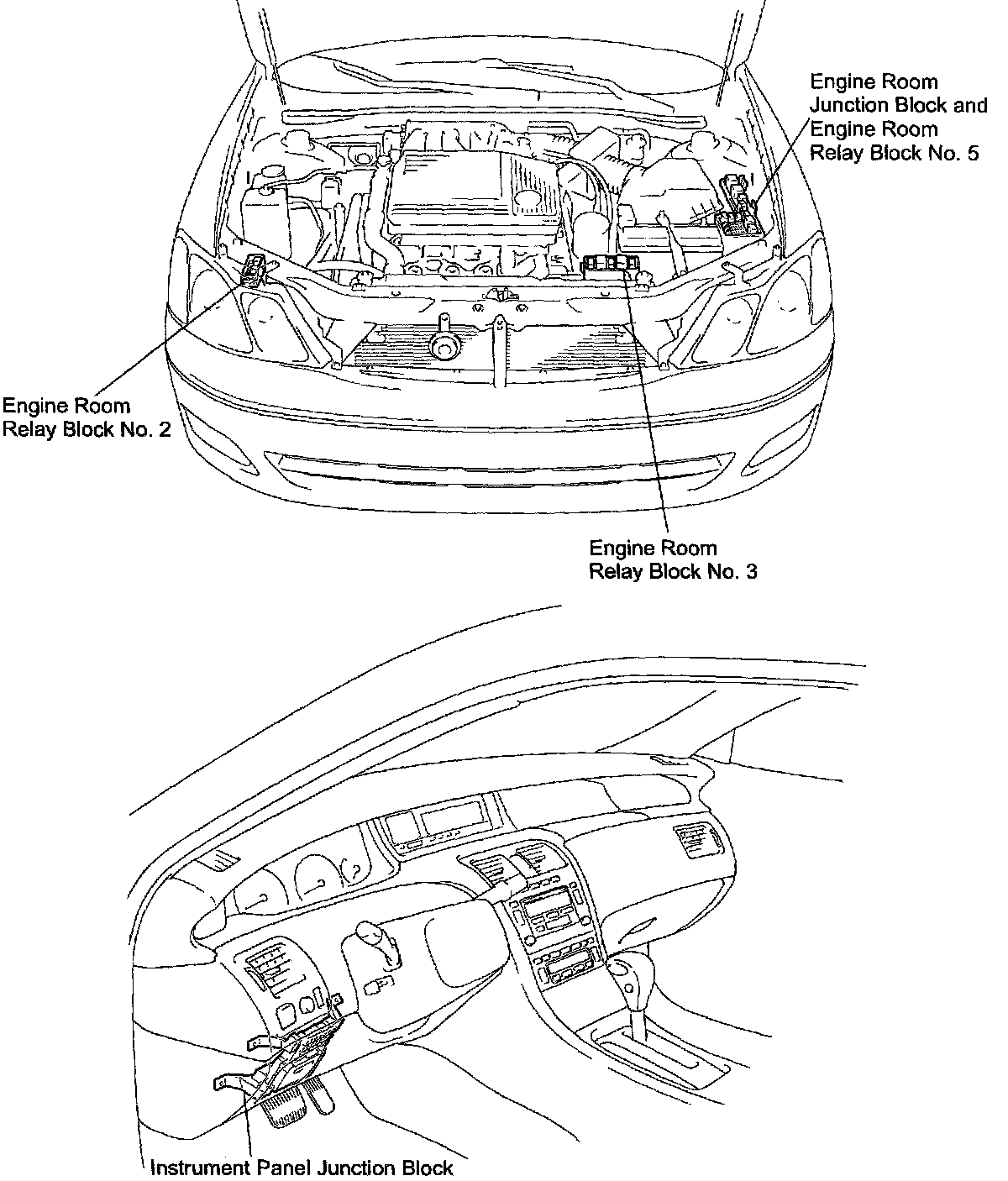

Engine Compartment:

Instrument Panel - Column Shift:

Instrument Panel - Floor Shift:
