Connector Views

Fusible Link Block - Engine Compartment Left [Inside Engine Room J/B]:




Driver Side J/B - Lower Finish Panel:




Driver Side J/B - Lower Finish Panel:

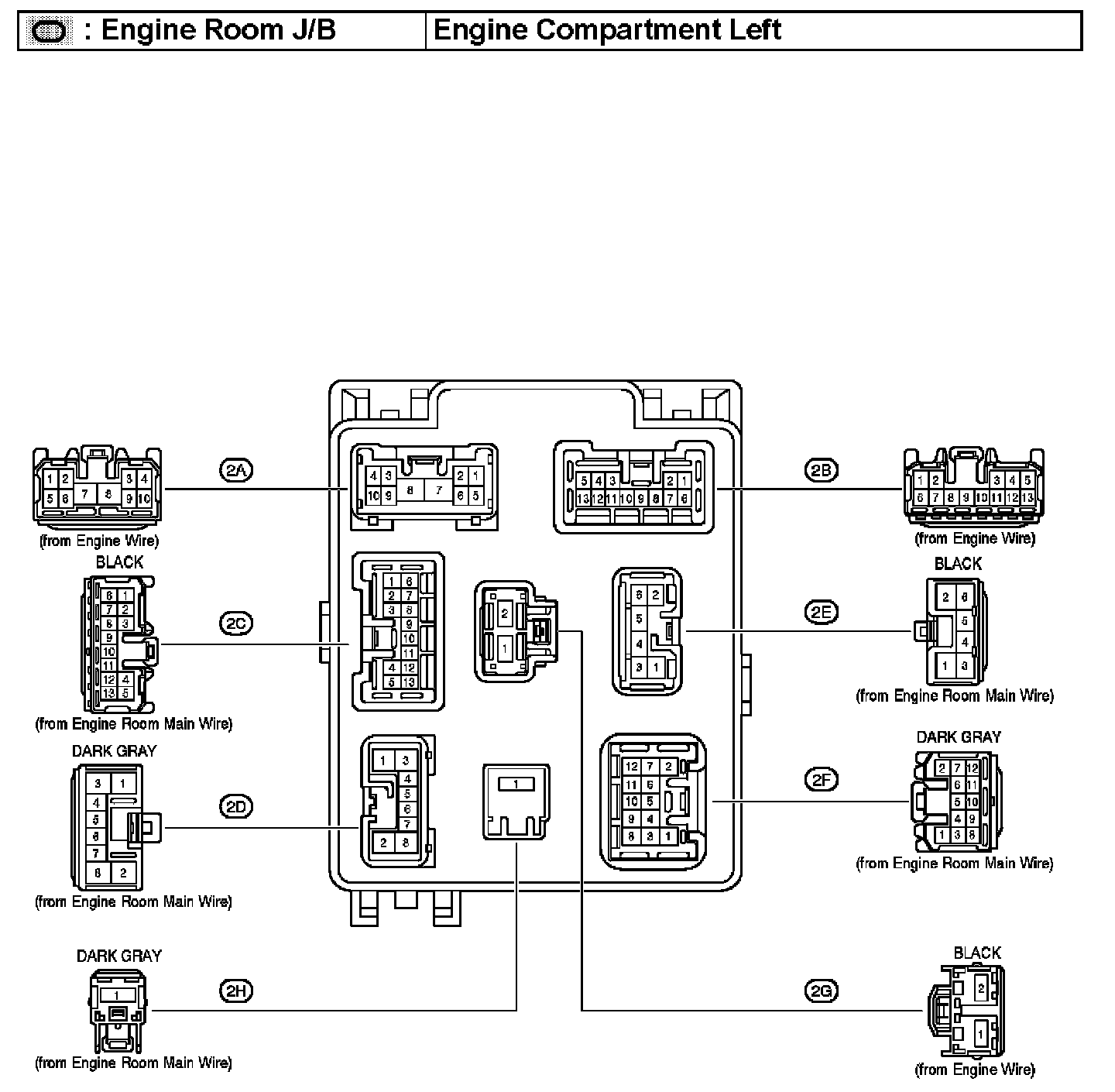

Engine Room J/B - Engine Compartment Left:

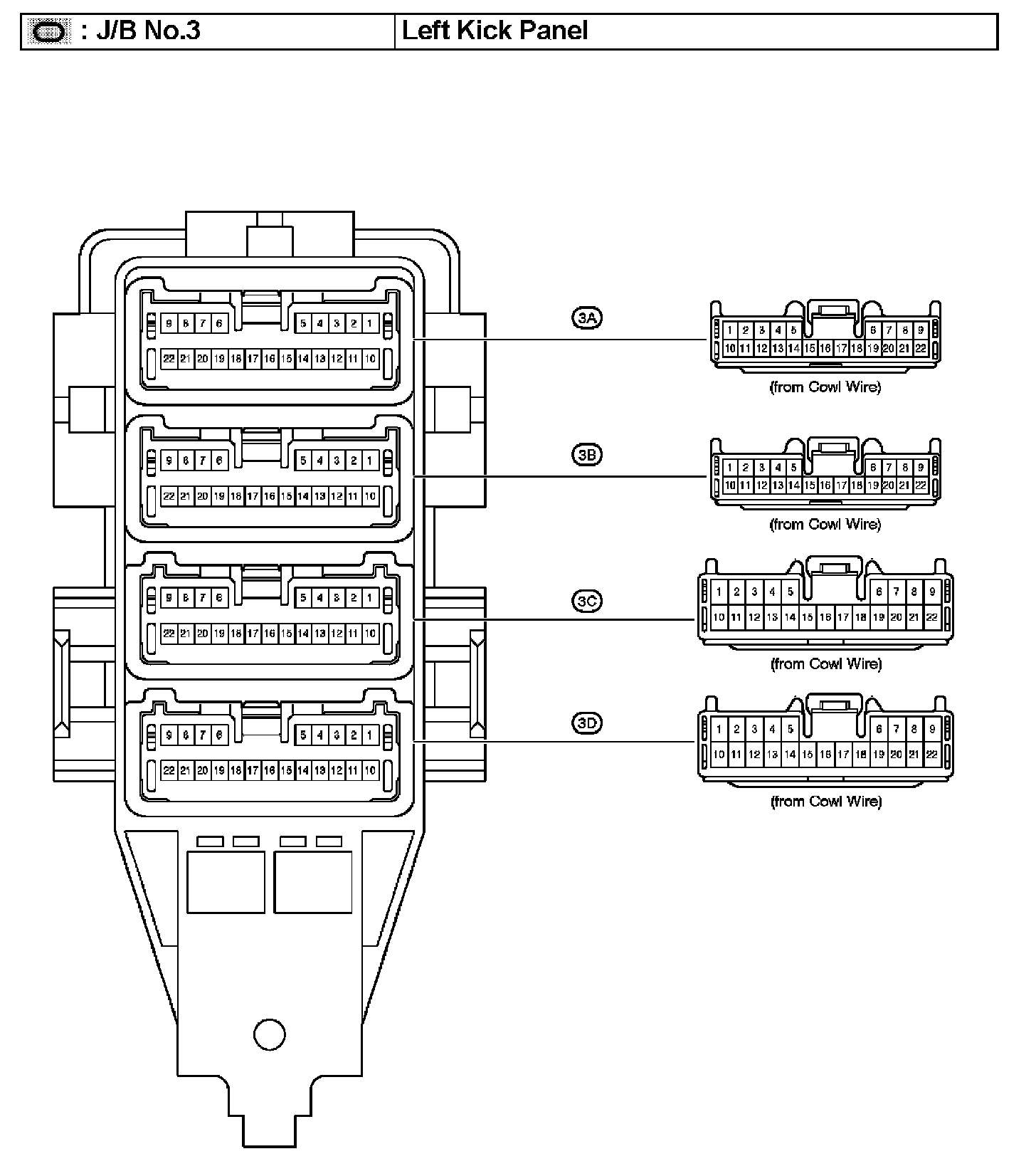

J/B No.3 - Left Kick Panel:

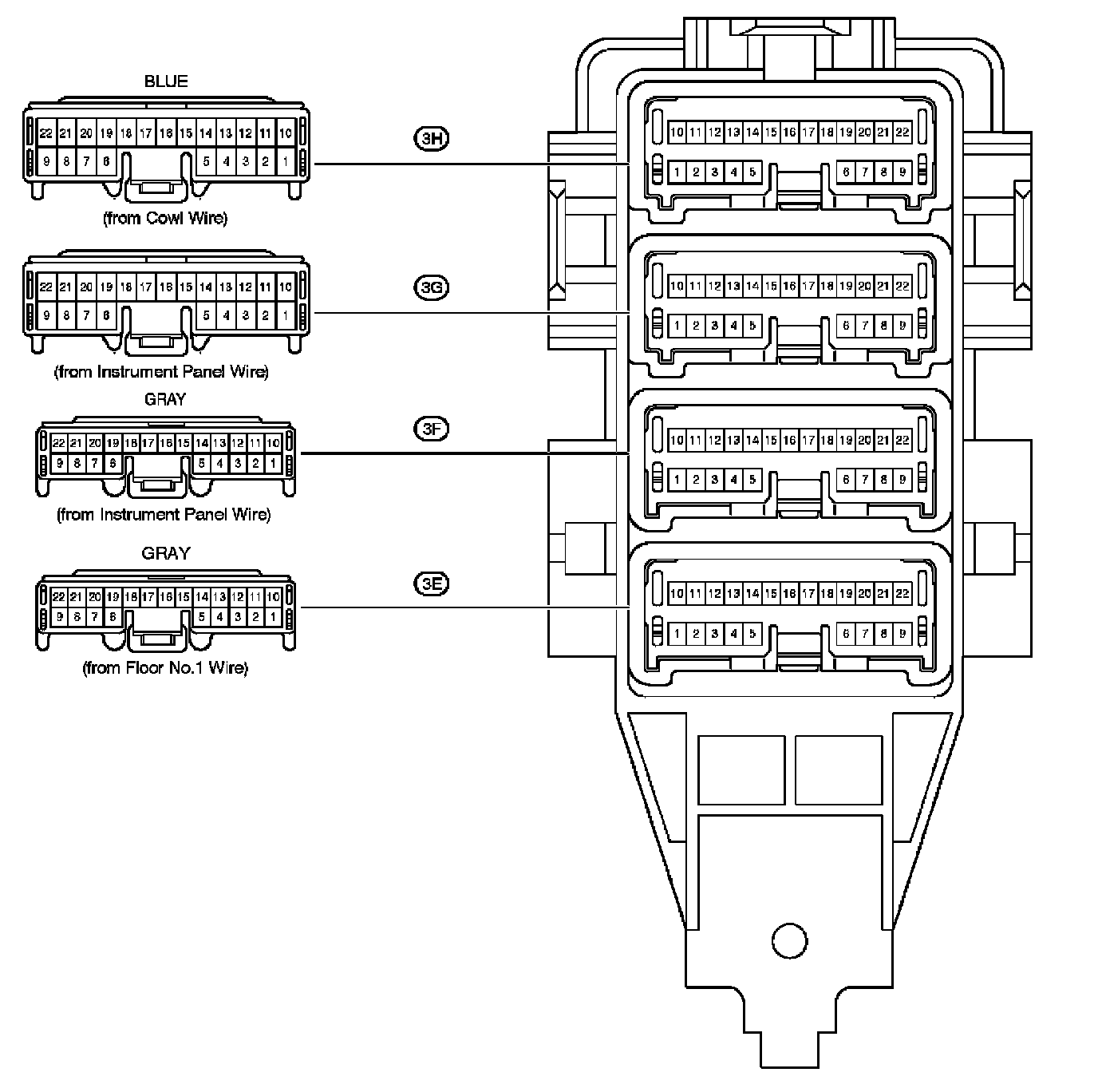

J/B No.3 - Left Kick Panel:

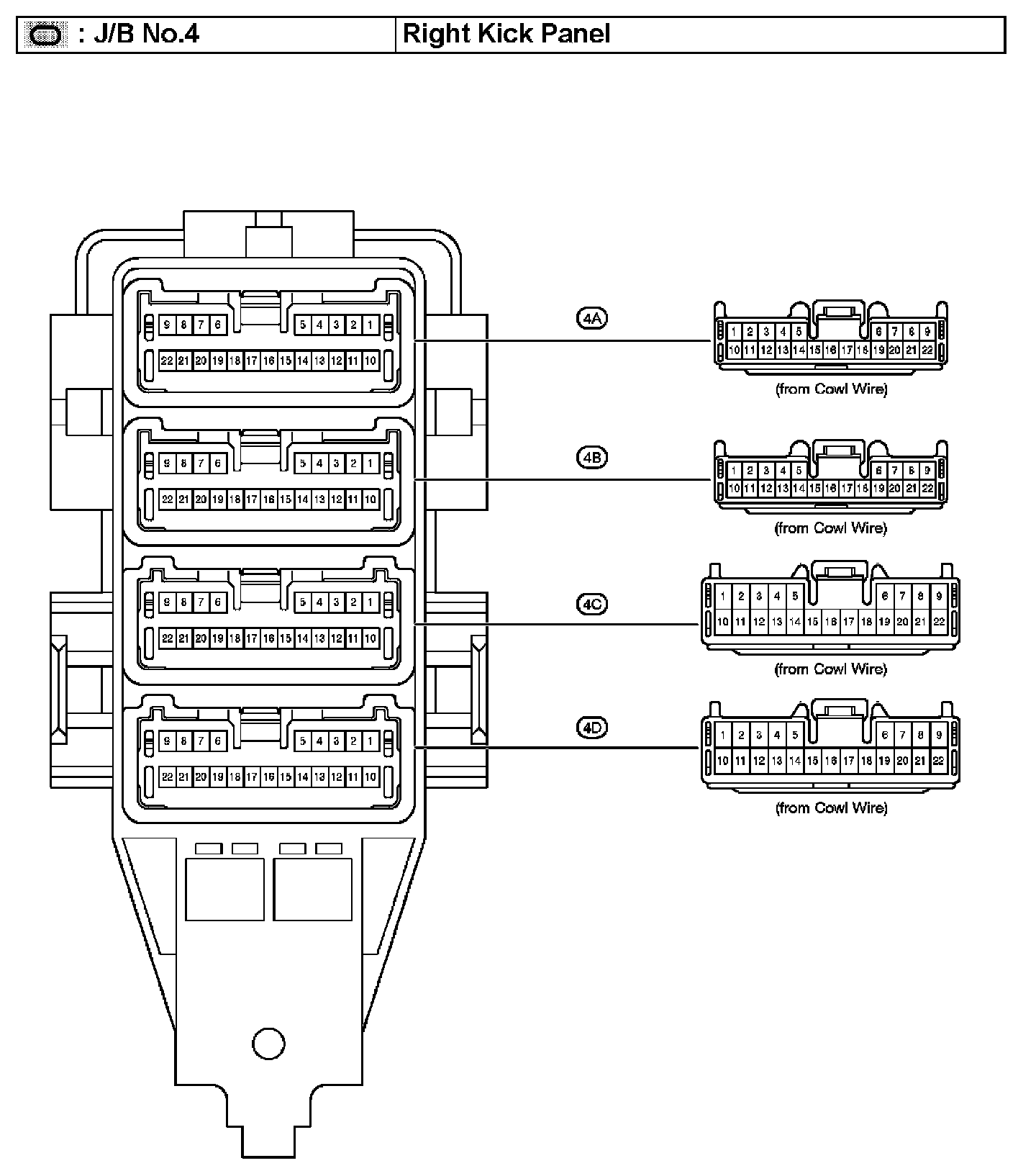

J/B No.4 - Right Kick Panel:

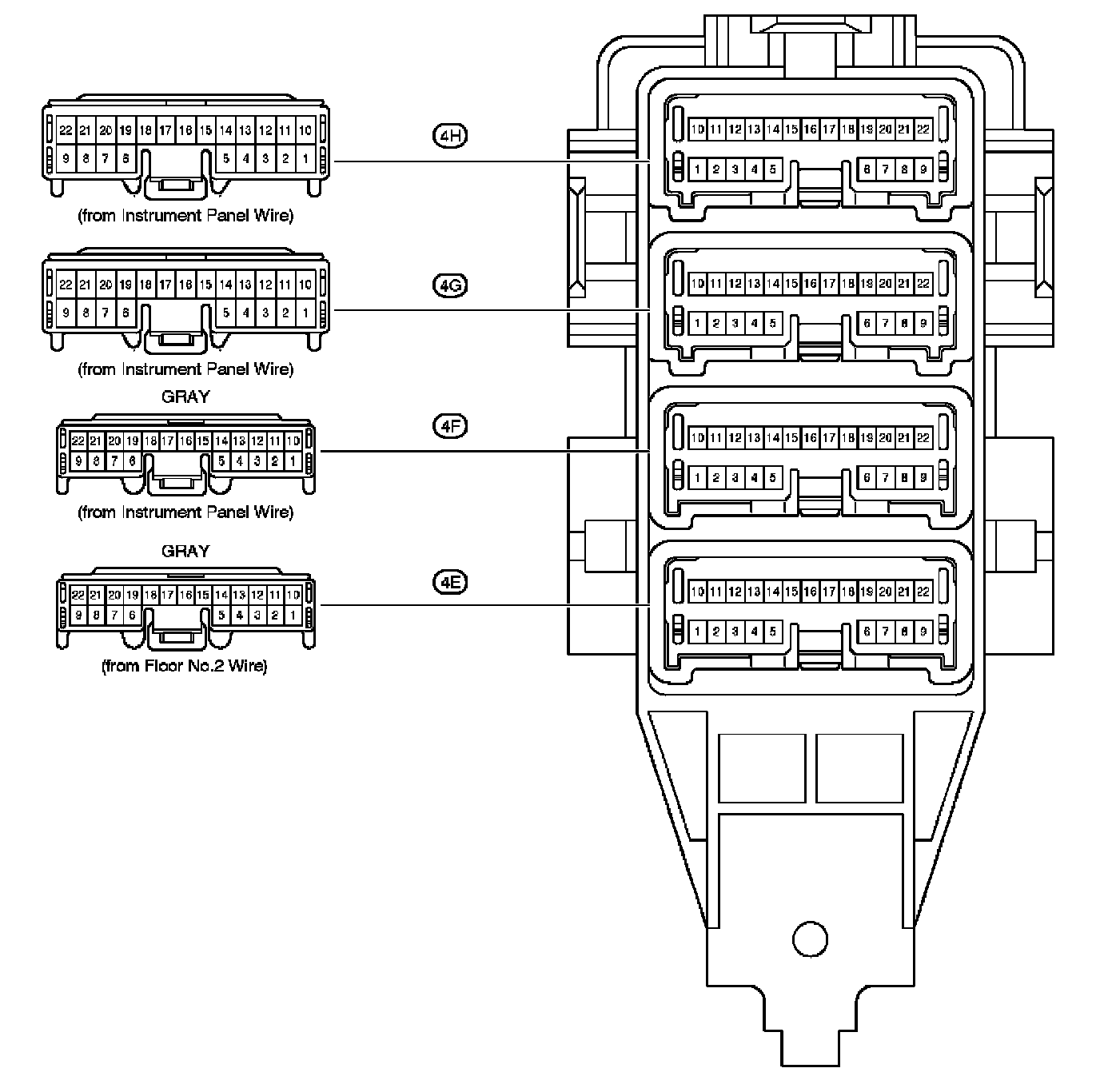

J/B No.4 - Right Kick Panel:
