Fuse: Application and ID

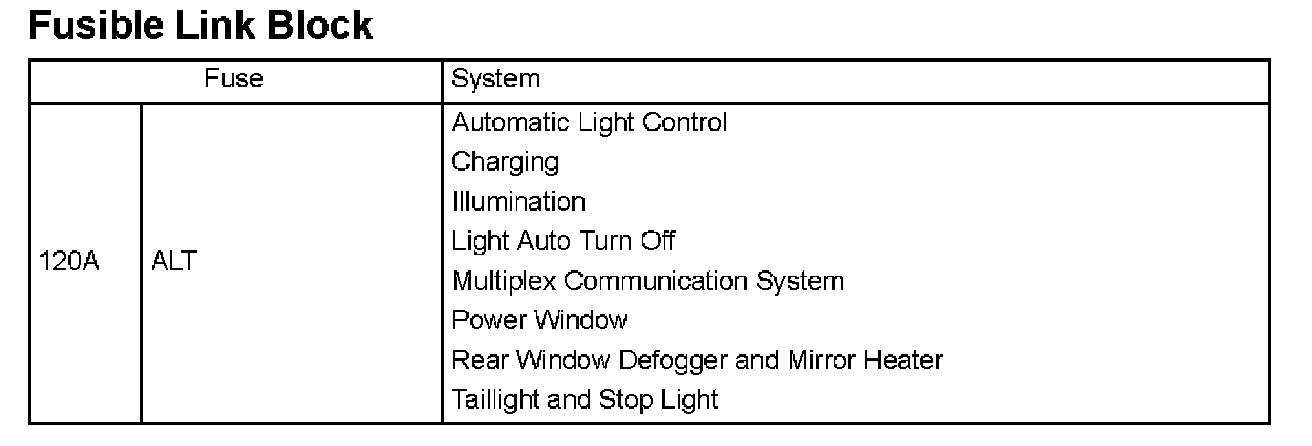

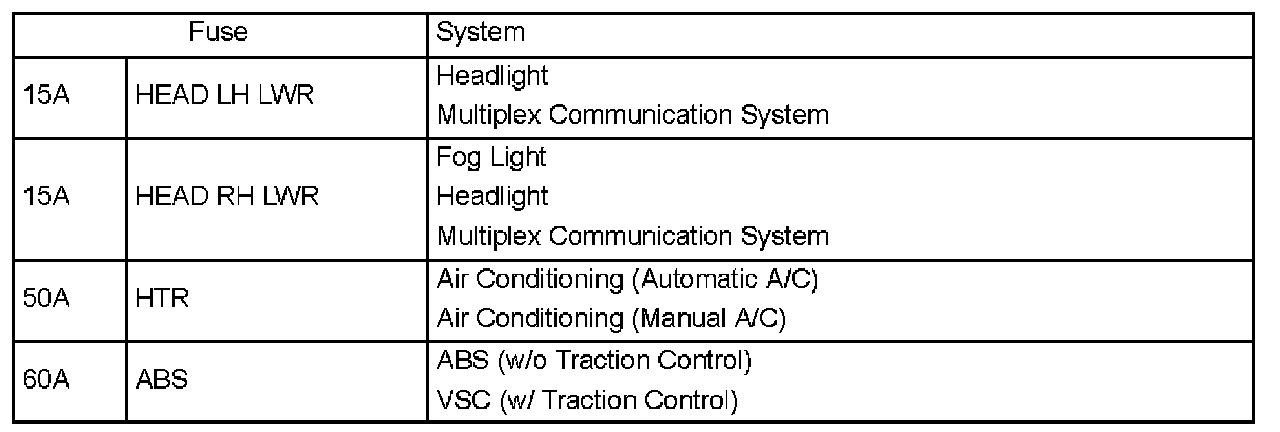

Fusible Link Block:

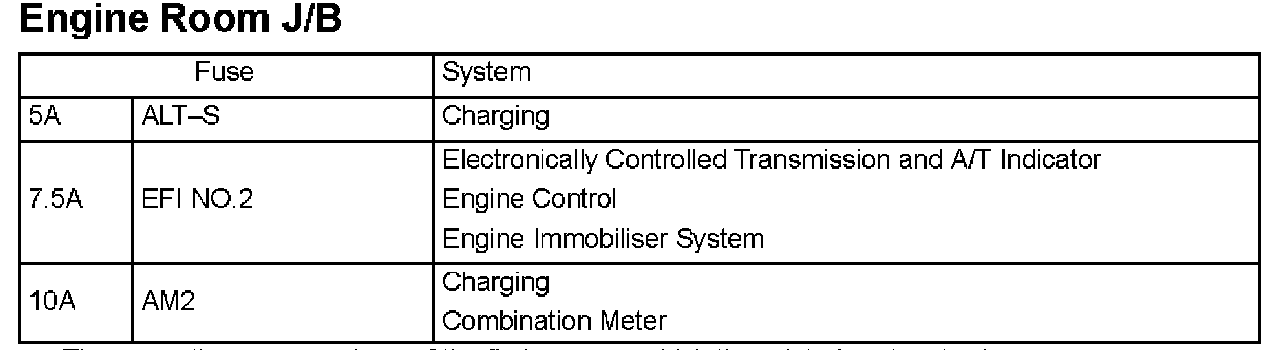

Engine Room J/B Part 1:

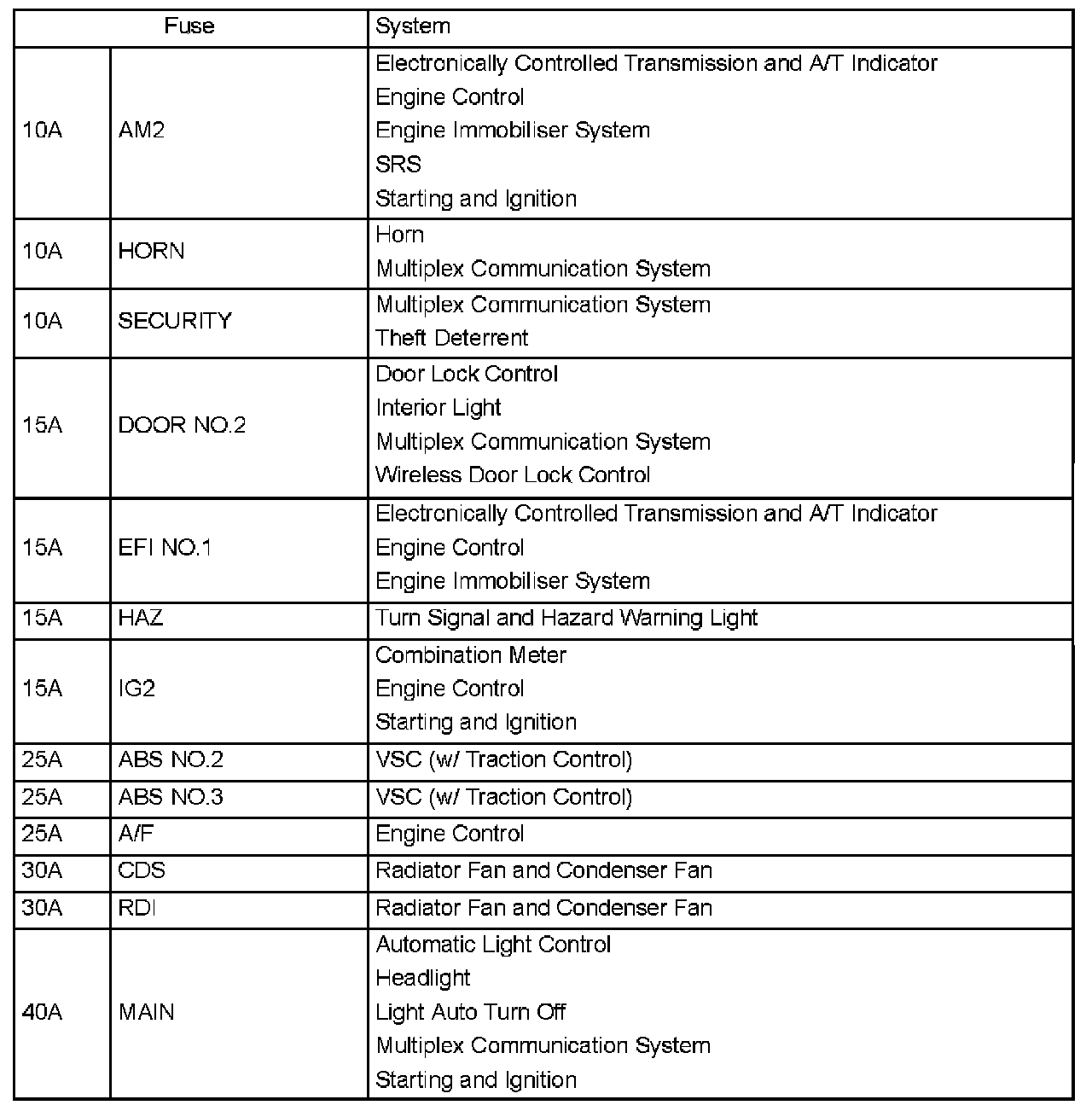

Engine Room J/B Part 2:

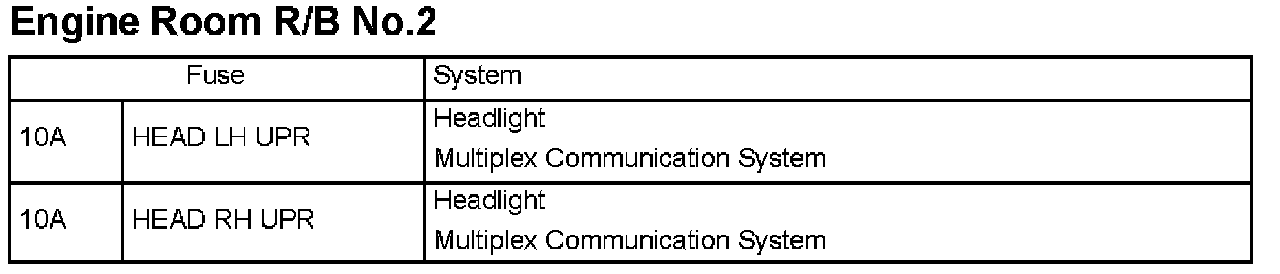

Engine Room R/B No 2:

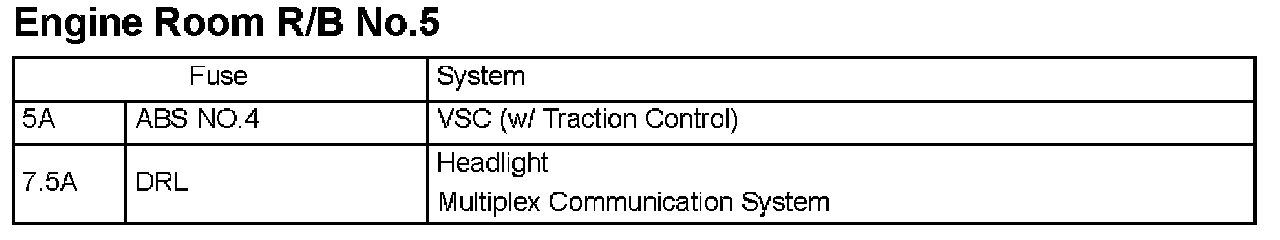

Engine Room R/B No 5 Part 1:

Engine Room R/B No 5 Part 2:

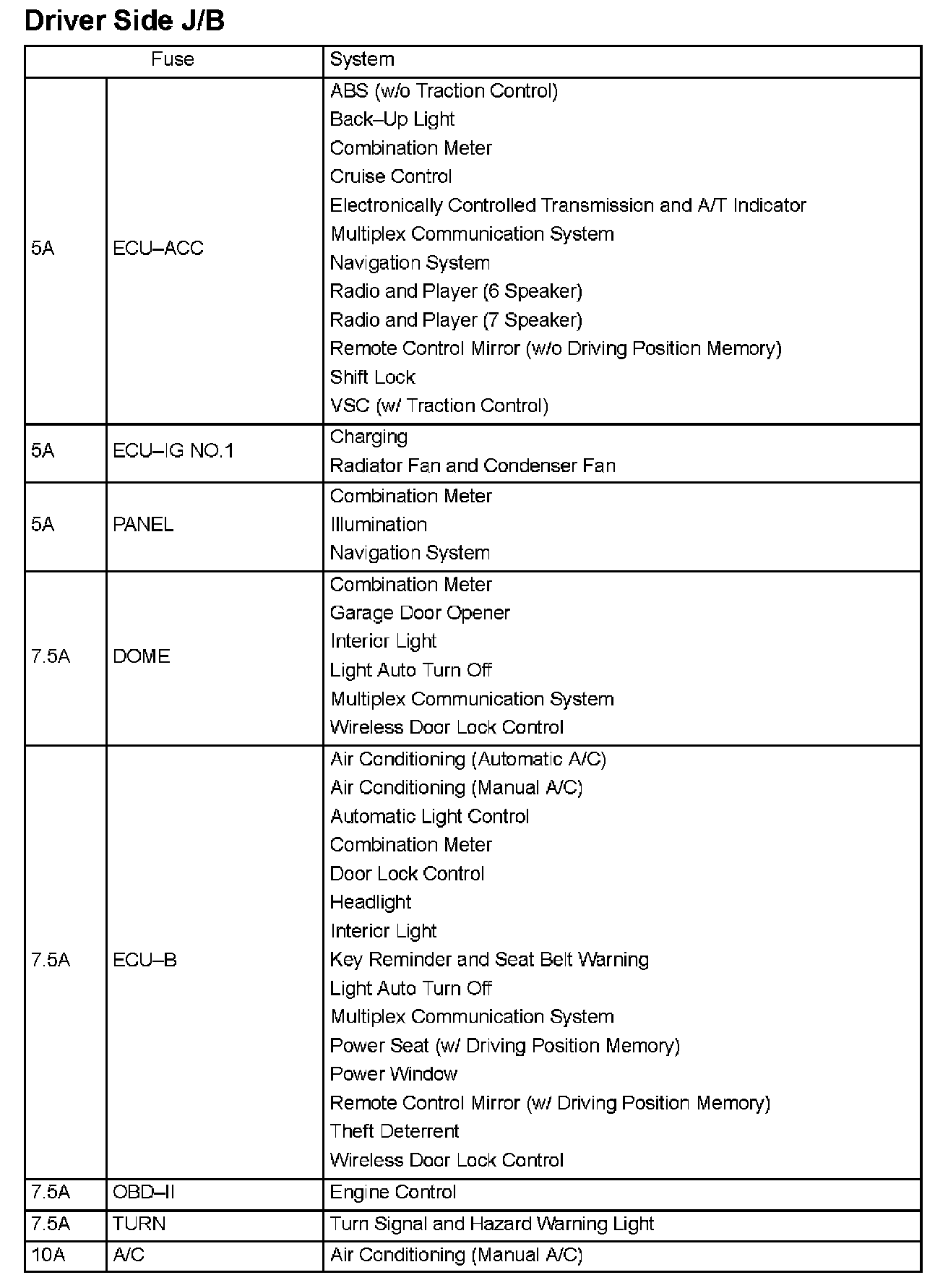

Driver Side J/B Part 1:

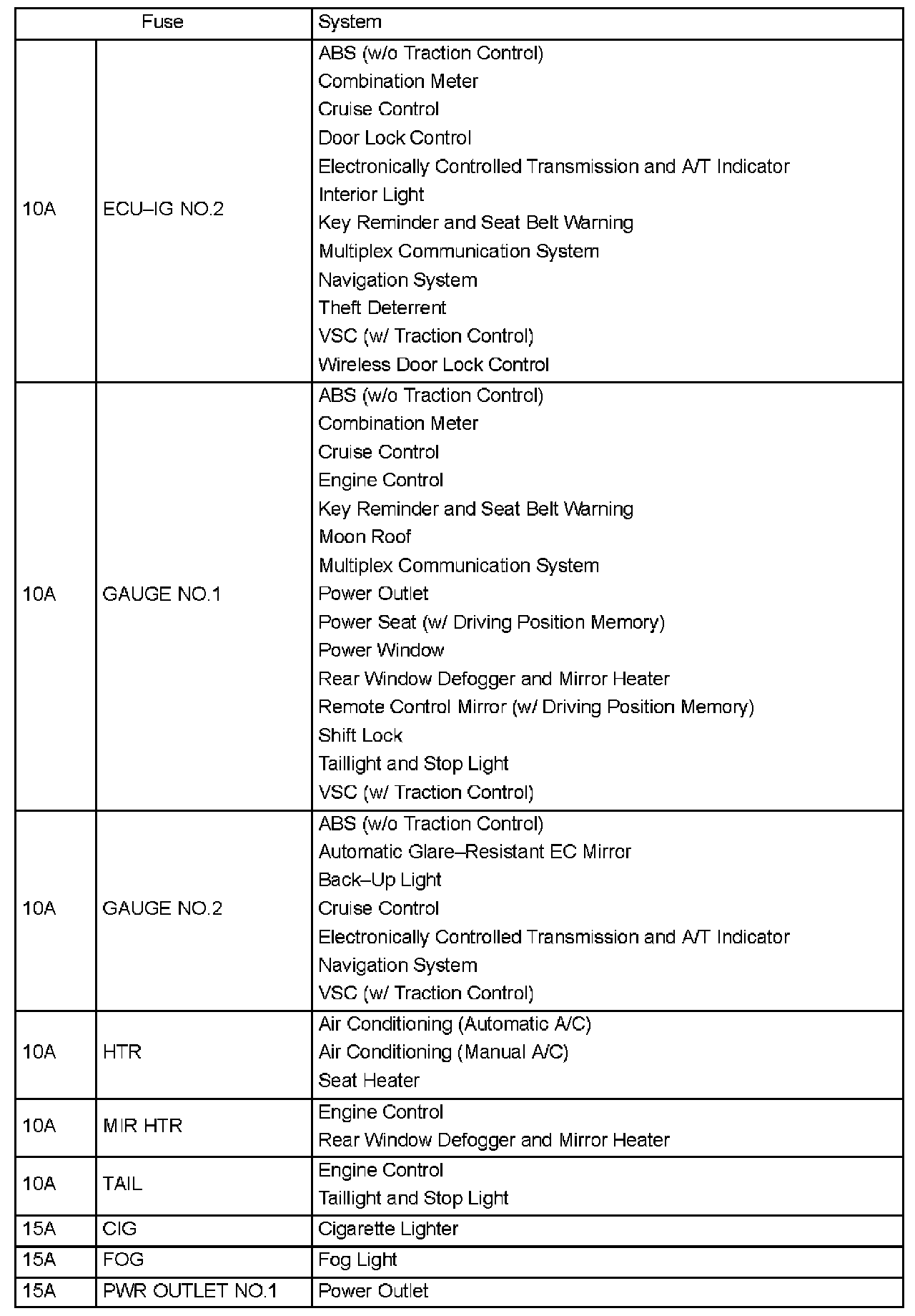

Driver Side J/B Part 2:

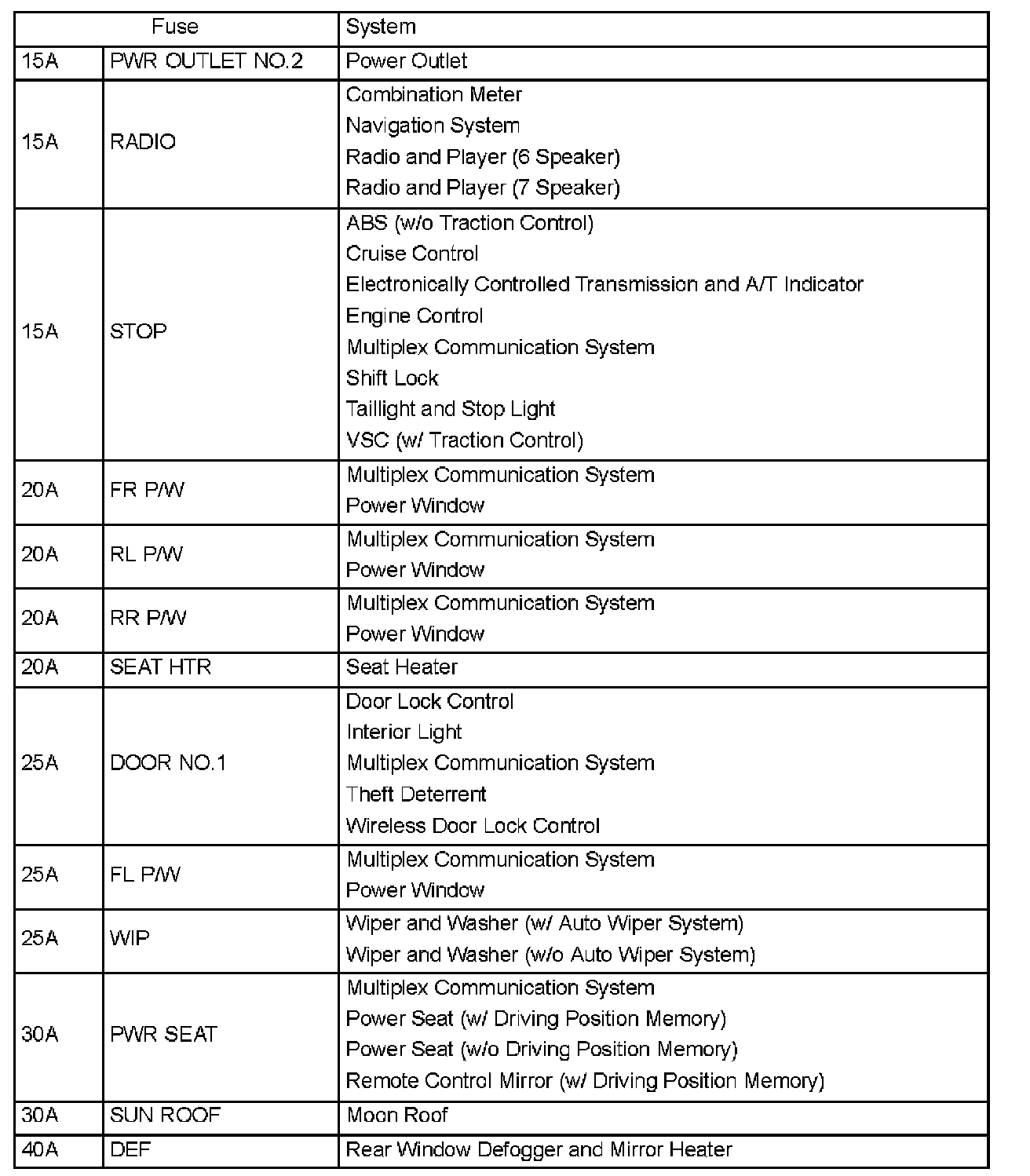

Driver Side J/B Part 3:
