Component Tests and General Diagnostics
INSPECTION

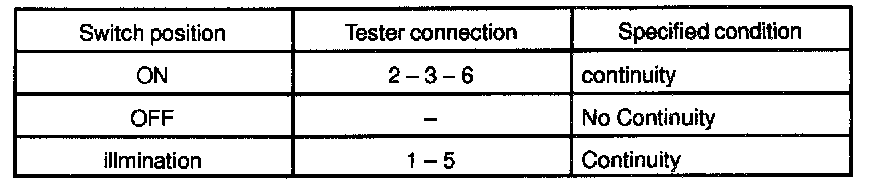

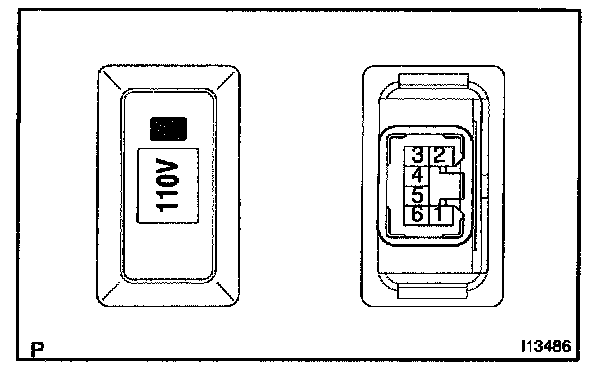

INSPECT POWER OUTLET MAIN SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
