System Specifications

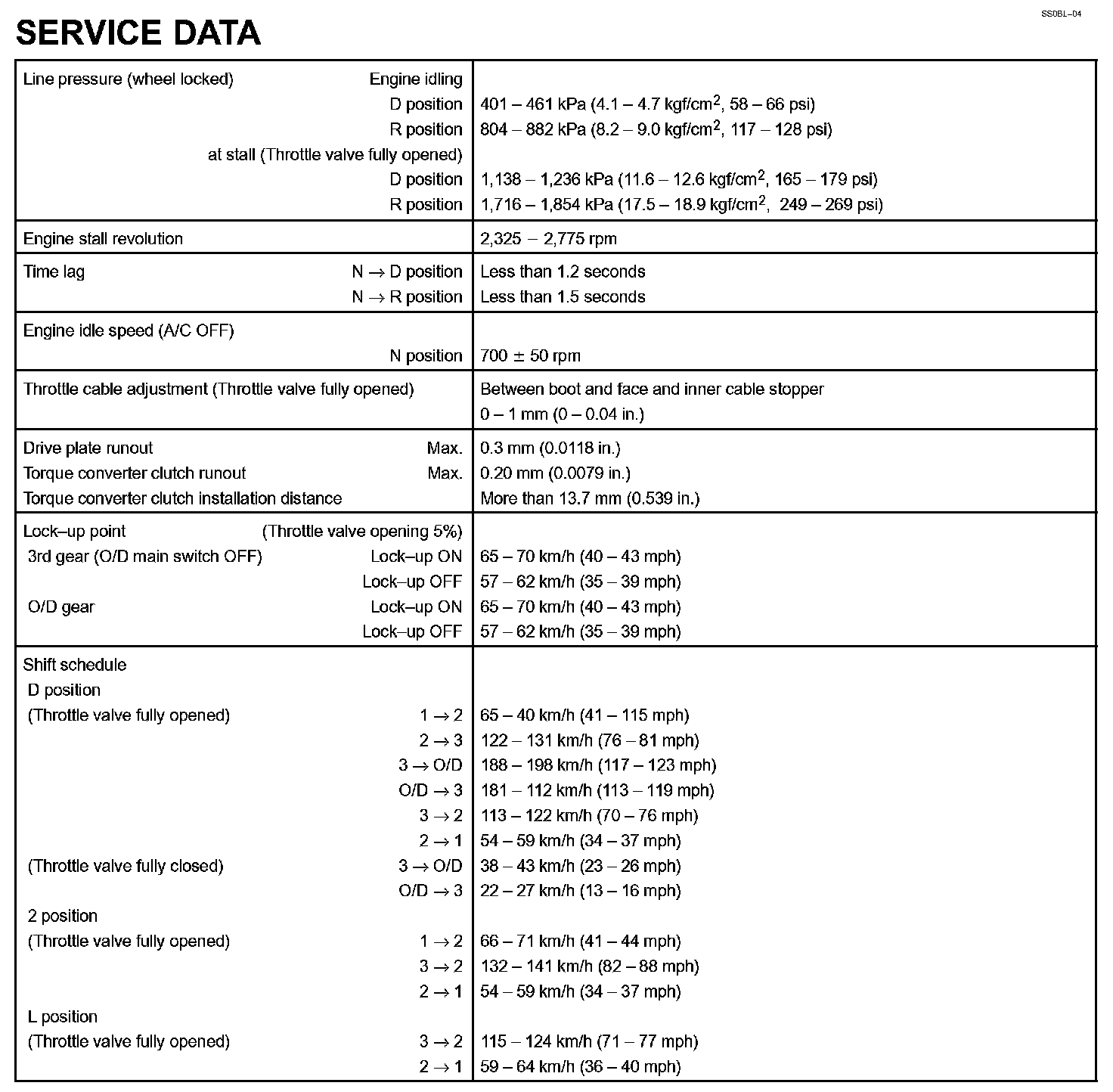

Automatic Transaxle - Service Data:

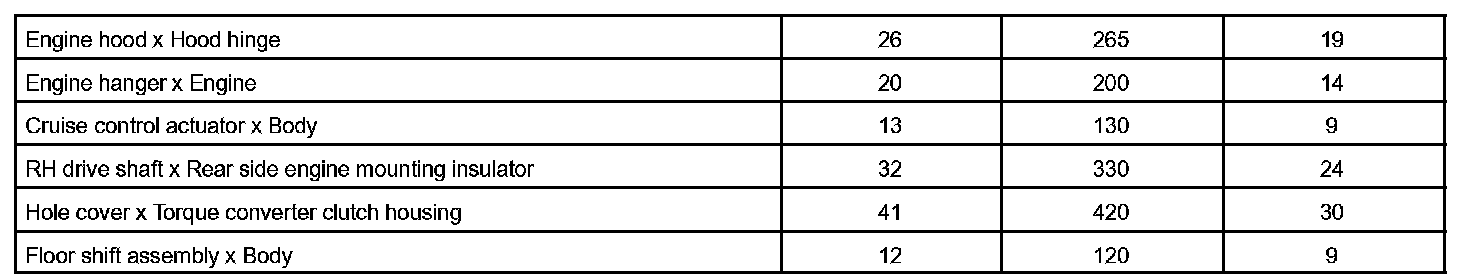

Automatic Transaxle - Torque Specification Part 1:




Automatic Transaxle - Torque Specification Part 2:
