Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR




a. Remove the sensor.

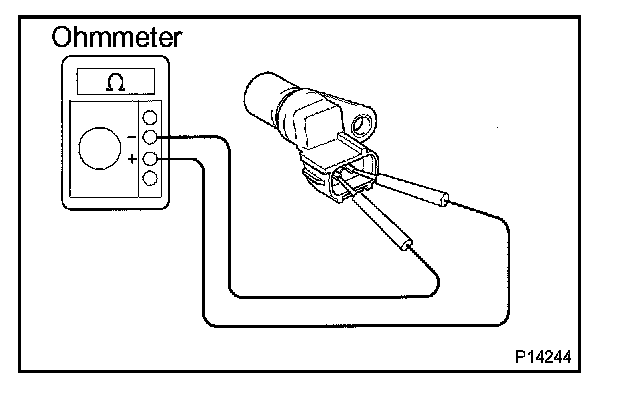

b. Using an ohmmeter, measure the resistance between the terminals.

Resistance:
Cold 1,630 - 2,740 Ohm
Hot 2,065 - 3,225 Ohm

If the resistance is not as specified, replace the sensor.

c. Reinstall the sensor.
