Door Switch: Testing and Inspection

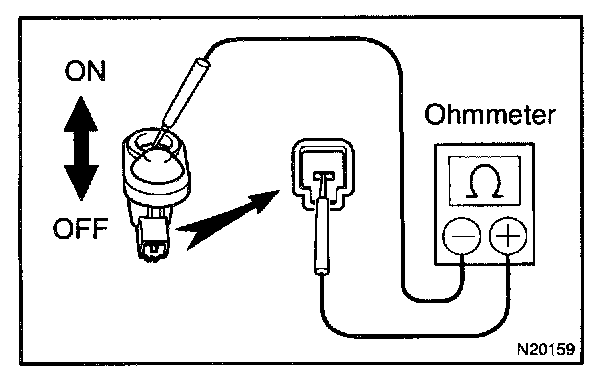

INSPECT DOOR COURTESY SWITCH CONTINUITY
a. Check that continuity exists between terminal and the switch body with the switch ON (switch pin released: opened door).
b. Check that no continuity exists between terminal and the switch body while the switch OFF (switch pin pushed in: closed doors).
If operation is not as specified, replace the switch.
