Solar Sensor: Testing and Inspection

INSPECTION

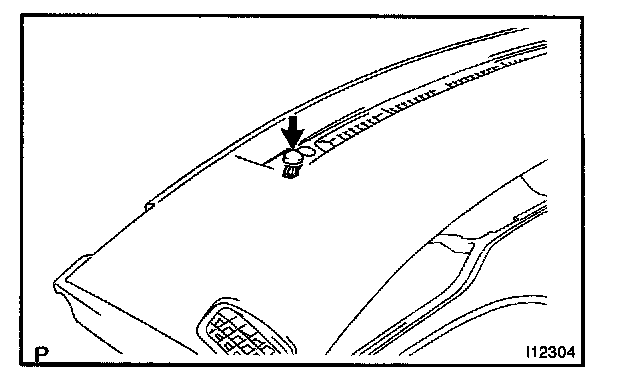

1. REMOVE SOLAR SENSOR
Using a screwdriver, pull out the sensor, then disconnect the connector.

HINT: Tape the screwdriver tip before use.

2. INSPECT SOLAR SENSOR CIRCUIT (See Heating and Air Conditioning; Testing and Inspection.)

3. INSTALL SOLAR SENSOR
Install the solar sensor, then connect the connector.
