Speed Sensor, Front

REMOVAL





1. DISCONNECT SPEED SENSOR CONNECTOR
a. Remove the fender liner.

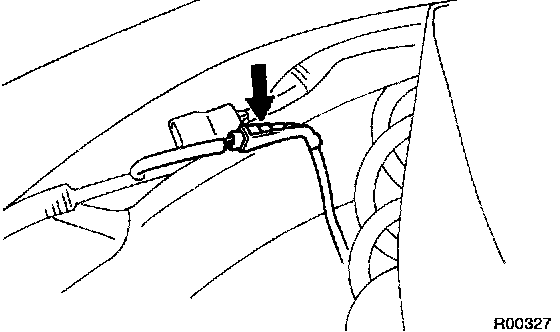

b. Disconnect the speed sensor connector.





2. REMOVE SPEED SENSOR
a. Remove the 2 clamp bolts holding the sensor harness to the body and shock absorber.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

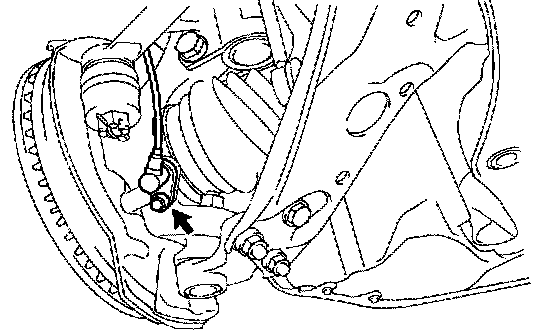

b. Remove the bolt and speed sensor from the steering knuckle.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

INSTALLATION
Installation is in the reverse order of removal.
AFTER INSTALLATION, CHECK SPEED SENSOR SIGNAL
