Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Locations

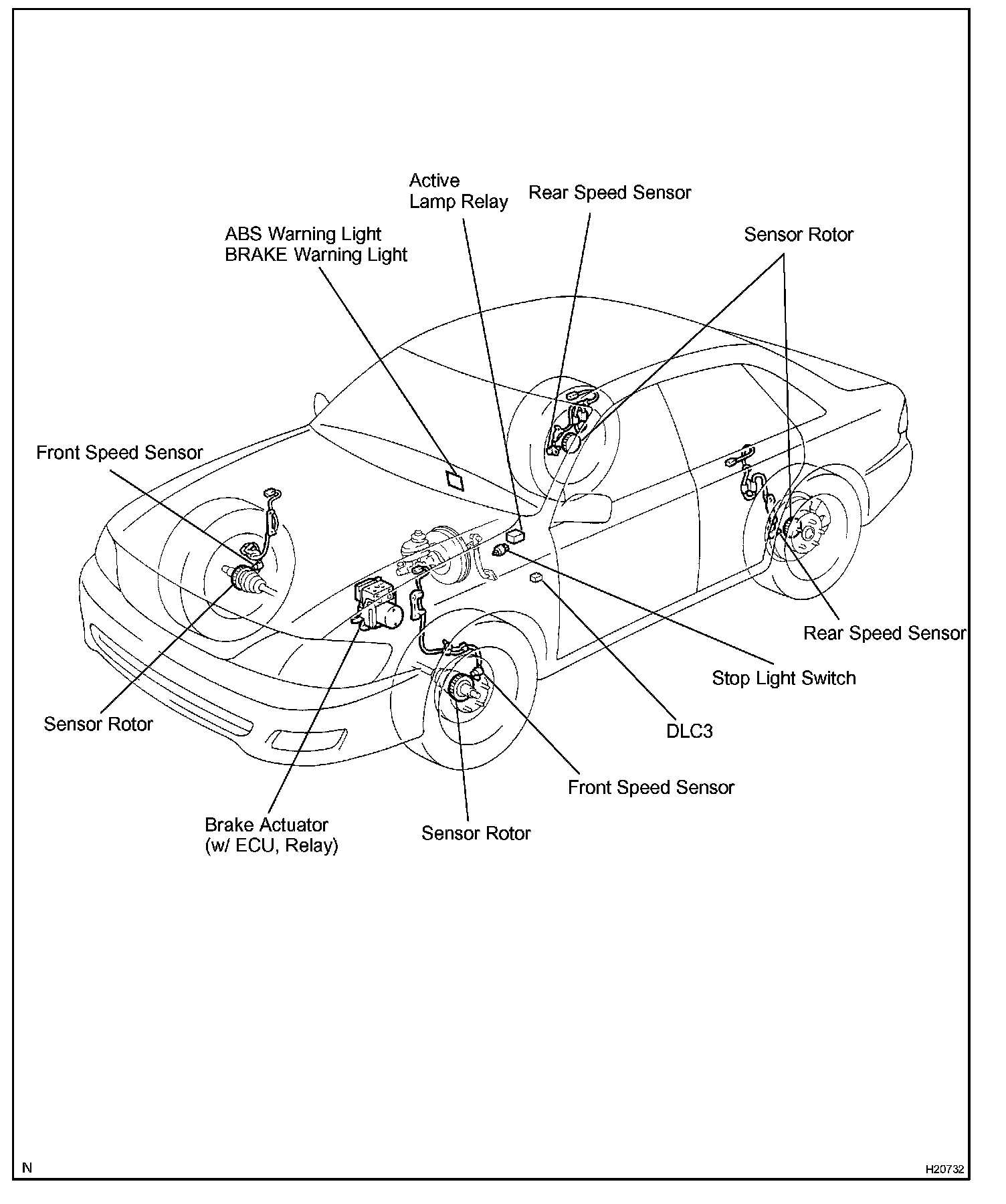

Wheel Speed Sensor: Locations

Anti-Lock Brake System With Electronic Brake Force Distribution:



A/C - Ho:



ABS - Lu:
