Seat Temperature Switch: Testing and Inspection

A/C control panel assembly:

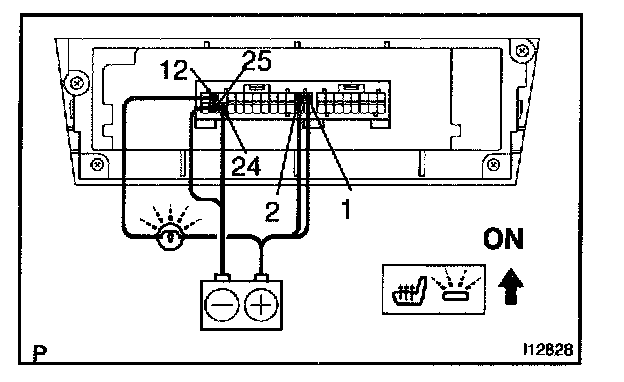

INSPECT DRIVERS SEAT HEATER SWITCH OPERATION




a. Connect the positive (+) lead from the battery to terminal 1 2 and negative (-) lead to terminal 24, 25.
b. Connect the positive (+) lead from the battery to terminal 12 through a 1.4 W test bulb.




c. Turn the drivers seat heater switch ON and check that the test bulb and indicator light turn ON.
If operation is not as specified, proceed to the next inspection.

A/C control panel assembly:

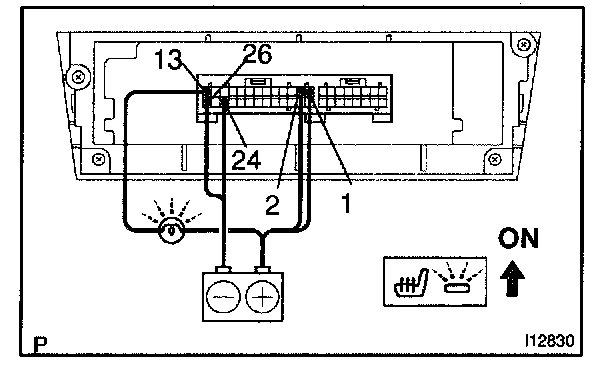

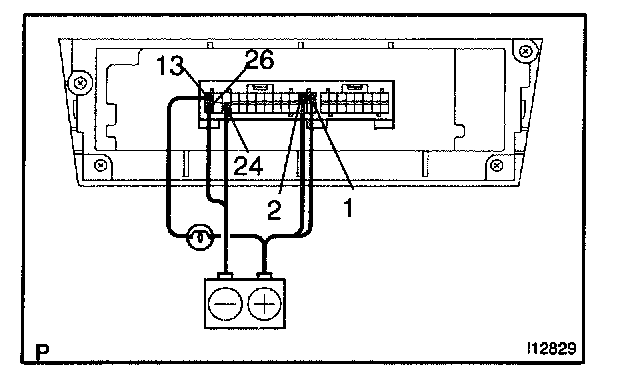

INSPECT PASSENGER SEAT HEATER SWITCH OPERATION




a. Connect the positive (+) lead from the battery to terminal 1, 2 and negative (-) lead to terminal 24, 26.
b. Connect the positive (+) lead from the battery to terminal 13 through a 1.4 W test bulb.




c. Turn the passenger seat heater switch ON and check that the test bulb and indicator light turn ON.
If operation is not as specified, proceed to the next inspection.
