Home >> Toyota >> 2004 >> Avalon V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Tools and Equipment

Restraints and Safety Systems: Tools and Equipment

Supplemental Restraint System - Recommended Tools:

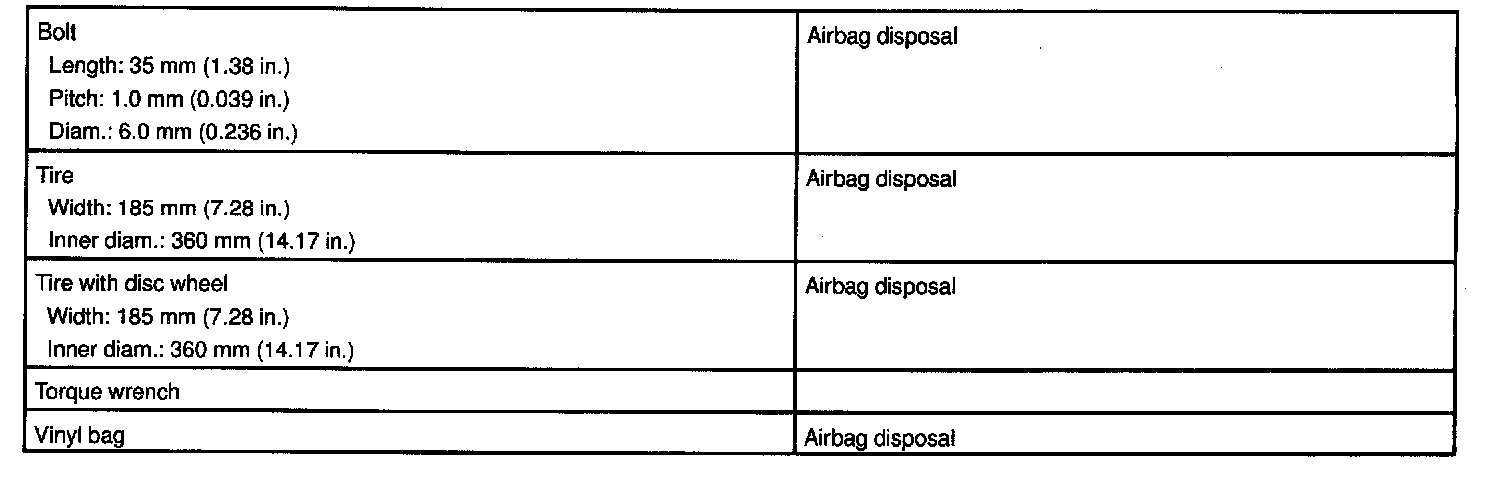

Supplemental Restraint System - Equipment:

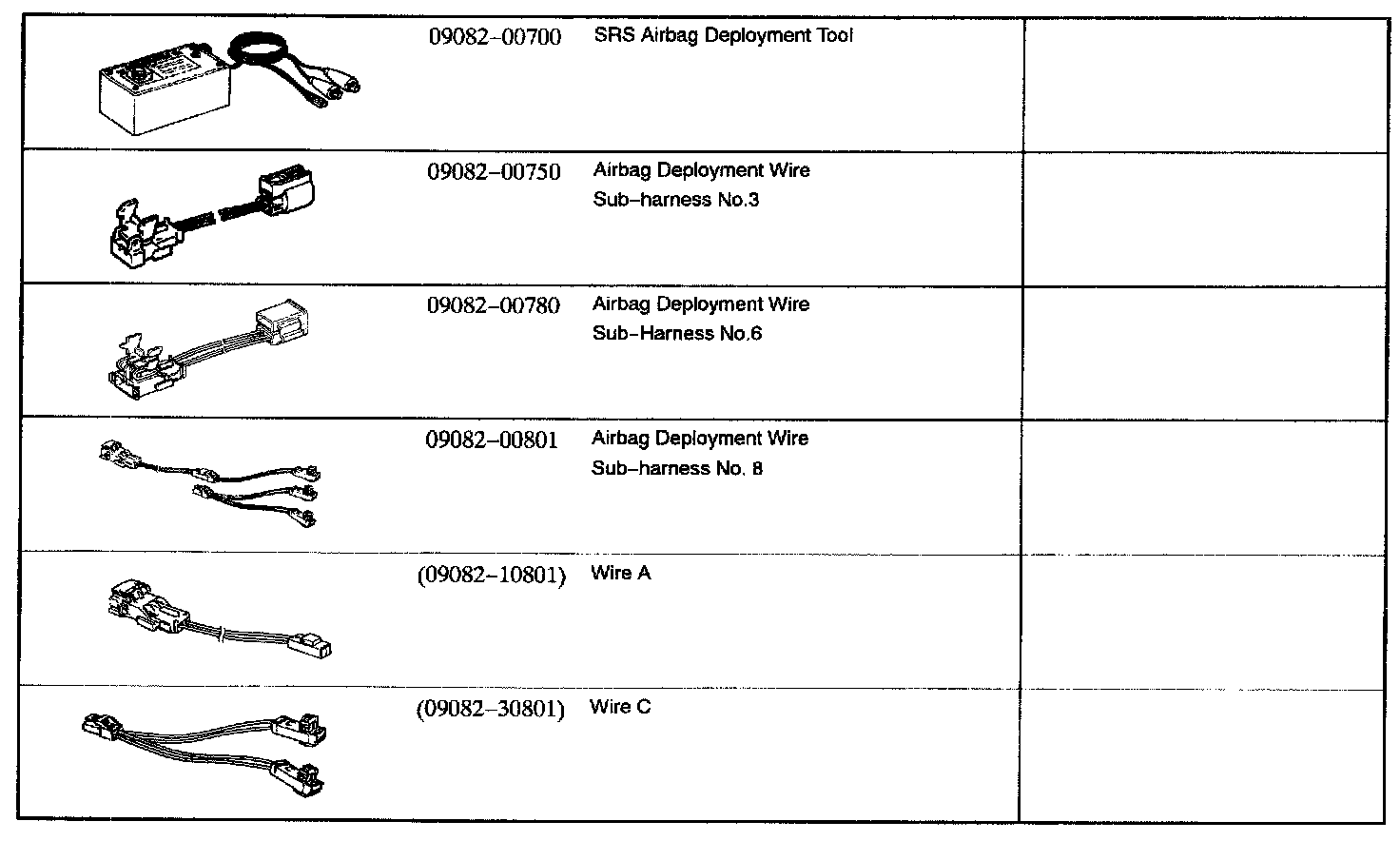

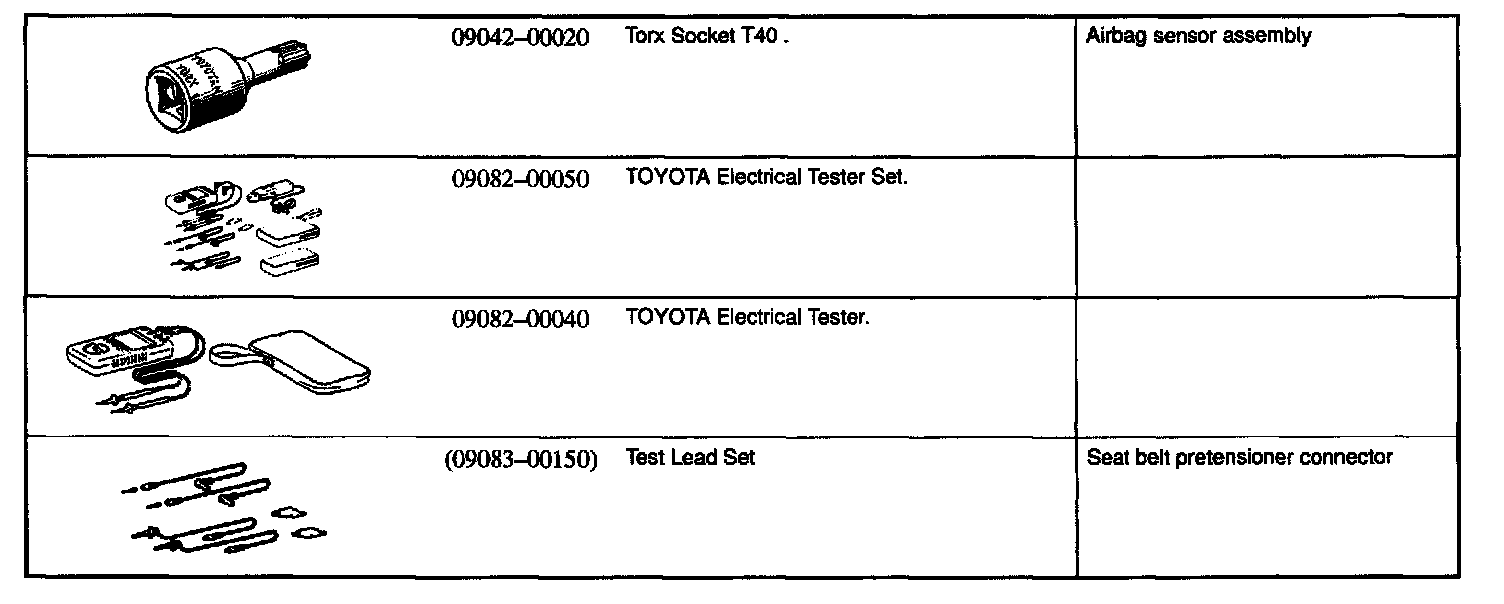

Supplemental Restraint System - SST (Special Service Tools):
