Power Seat
Side Airbag Assembly (Power Adjuster Type):
REMOVAL
NOTE:
- If the wiring connector of the SRS Is disconnected and the ignition switch is at ON or ACC position, DTCs will be recorded.
- Never use the airbag parts from another vehicle. When replacing parts, replace them with new parts.
1. REMOVE FRONT SEAT
a. Remove the 4 seat track covers and 4 bolts.
b. Disconnect the power seat and side airbag connector.
NOTE: When handling the airbag connectors take care not to damage the airbag wire harness.
c. Remove the front seat.
2. REMOVE HEADREST
3. Driver's seat with bench type:
REMOVE SEAT ARMREST ASSEMBLY
Remove the cover, bolt and seat armrest assembly.
4. REMOVE POWER SEAT SWITCH KNOBS
5. REMOVE FRONT SEAT CUSHION SHIELD
Remove the 5 screws and front seat cushion shield, as shown in the illustration.
6. REMOVE FRONT SEAT INNER BELT
7. REMOVE FRONT SEAT CUSHION INNER SHIELD
Remove the 2 screws and front seat inner belt.
8. REMOVE SEAT CUSHION ASSEMBLY
a. Remove the wire harness from the seat cushion assembly.
b. Driver's seat with bench type:
Remove the 5 bolts and seat cushion assembly
c. Except driver's seat with bench type:

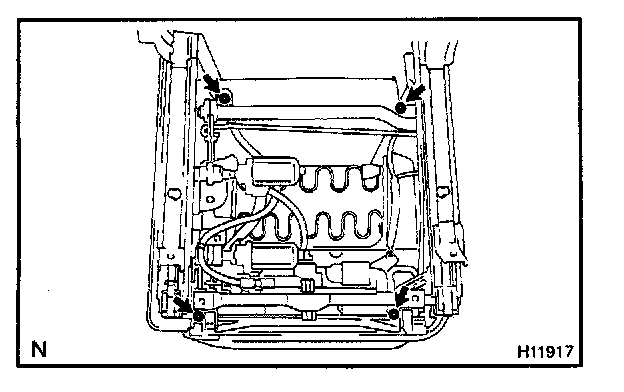

Remove the 4 bolts and seat cushion assembly.
9. REMOVE SEATBACK BOARD
10. REMOVE SEATBACK ASSEMBLY
a. Remove the hog rings, as shown in the illustration.
b. Remove the 4 bolts and seatback assembly.
NOTE: Do not apply unnatural force to the airbag harness.
c. Remove the 2 screws and reclining adjuster inside cover.
d. Separate the wire harness from the reclining adjuster inside cover.
HINT: Do the same for LH and RH.
INSTALLATION
NOTE: Never use airbag parts from another vehicle. When replacing parts, replace them with new parts.
1. INSTALL SEATBACK ASSEMBLY
a. Temporarily install the seatback assembly.
b. Install the wire harness to the reclining adjuster inside cover and install the cover to the seat adjuster with the 2 screws.
HINT: Do the same for LH and RH.
c. Install the 4 bolts.
Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)
NOTE:
- Make sure that the seatback assembly is installed with the specified torque.
- If the seatback assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the seatback assembly with a new one.
- When installing the seatback assembly, take care it is not pinched between other parts.
d. Install the new hog rings as shown in the illustration.
2. INSTALL SEATBACK BOARD
3. INSTALL SEAT CUSHION ASSEMBLY
a. Driver's seat with bench type:
Install the seat cushion assembly with the 5 bolts.
b. Except driver's seat with bench type:
Install the seat cushion assembly with 4 bolts.
c. Install the wire harness to the seat cushion assembly.
4. INSTALL FRONT SEAT CUSHION INNER SHIELD
Install the front seat inner shield with the 2 screws.
5. INSTALL FRONT SEAT INNER BELT
6. INSTALL FRONT SEAT CUSHION SHIELD
Install the front seat cushion shield with the 5 screws.
7. INSTALL POWER SEAT SWITCH KNOBS
8. Driver's seat with bench type:
INSTALL SEAT ARMREST ASSEMBLY
Install the seat armrest assembly with bolt and cover.
9. INSTALL HEADREST
10. INSTALL FRONT SEAT
NOTE: When mounting the seat to the vehicle, take care not to damage the airbag wire harness.
a. Connect the side airbag connector and power seat connector.
b. Slide the front seat to the most front position.
NOTE: Make sure that seat adjuster locks.
c. Without holding the seat track handle, mount the seat to the vehicle.
HINT: If holding the seat track handle, the adjusted rearmost position slip off.
d. Tighten the bolts on the front side temporarily, from the bolt on the inner side tighten them completely.
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
e. Slide the seat to the most front position to install the bolts on the rear side.
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
