Manual Seat

Side Airbag Assembly (Manual Adjuster Type):

REMOVAL

NOTE:
- If the wiring connector of the SRS Is disconnected and the ignition switch is at ON or ACC position, DTCs will be recorded.
- Never use the airbag parts from another vehicle. When replacing parts, replace them with new parts.

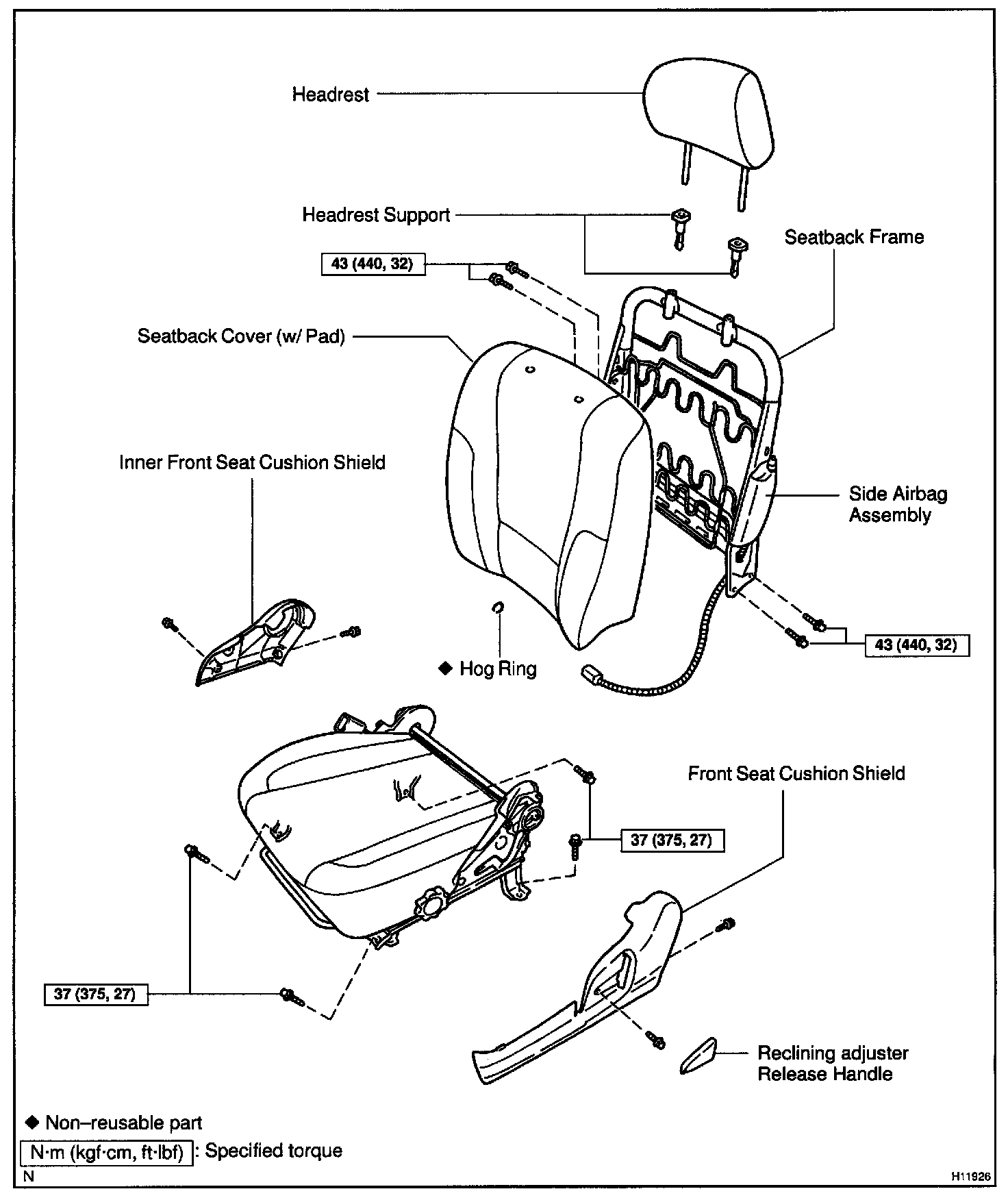

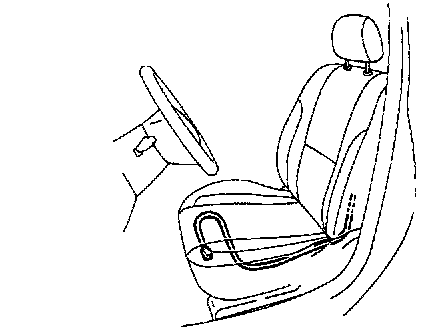

1. REMOVE FRONT SEAT
a. Remove the 4 seat track covers and 4 bolts.
b. Disconnect the side airbag connector.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

c. Remove the front seat.

2. REMOVE HEADREST
3. REMOVE RECLINING ADJUSTER KNOB

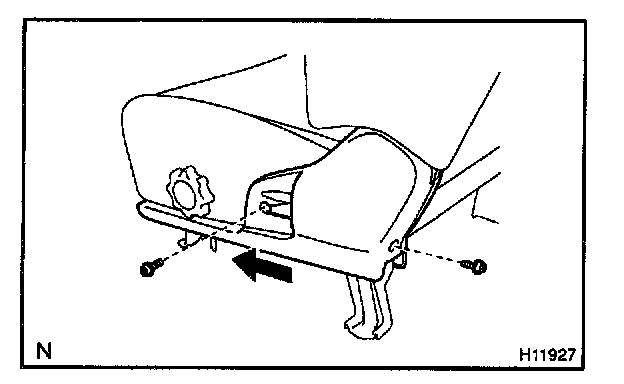

4. REMOVE FRONT SEAT CUSHION SHIELD

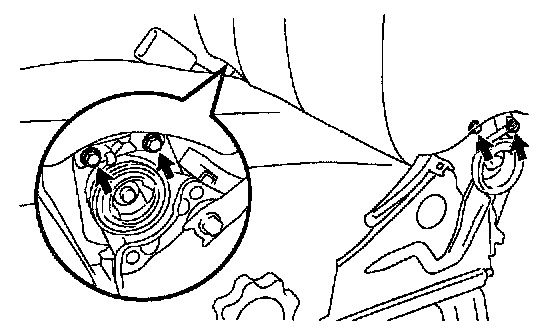

Remove the 2 screws and front seat cushion shield.

5. REMOVE INNER FRONT SEAT CUSHION SHIELD
Remove the 2 screws and front seat cushion inner shield.

6. REMOVE SEATBACK ASSEMBLY




a. Remove the hog rings.

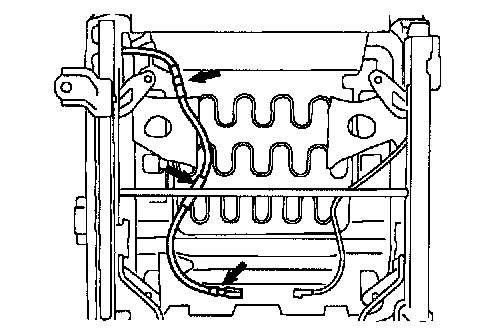

b. Remove the wire harness of the side airbag assembly.

NOTE: When handling the airbag wire harness, take care not to damage the airbag wire harness.




c. Remove the 4 bolts and seatback assembly.

INSTALLATION

NOTE: Never use airbag parts from another vehicle. When replacing parts, replace them with new parts.

1. INSTALL SEATBACK ASSEMBLY




a. Install the 4 bolts.

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

NOTE:
- Make sure that the seatback assembly is installed with the specified torque.
- If the seatback assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the seatback assembly with a new one.
- When installing the seat back assembly, take care it is not pinched between other parts.




b. Install 3 new hog rings as shown in the illustration

HINT: When installing the hog rings, take care to prevent wrinkles as little as possible.




c. Install the wire harness of the side airbag assembly to the seat cushion assembly.

2. INSTALL INNER FRONT SEAT CUSHION SHIELD
Install the inner front seat cushion shield with the 2 screws.

3. INSTALL FRONT SEAT CUSHION SHIELD
Install the front seat cushion shield with the 2 screws.

4. INSTALL RECLINING ADJUSTER KNOBS
5. INSTALL HEADREST

6. INSTALL FRONT SEAT

NOTE: When mounting the seat to the vehicle, take care not to damage the airbag wire harness.

a. Connect the side airbag connector.
b. Slide the front seat to the most front position.

NOTE: Make sure that seat adjuster locks.

c. Without holding the seat track handle, mount the seat to the vehicle.

HINT: If holding the seat track handle, the adjusted rearmost position slip off.

d. Tighten the bolts on the front side temporarily, from the bolt on the inner side tighten them completely.

Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

e. Slide the seat to the most front position to install the bolts on the rear side.

Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
