Ignition Relay No. 2

IGNITION RELAY (NO. 2)

INSPECTION

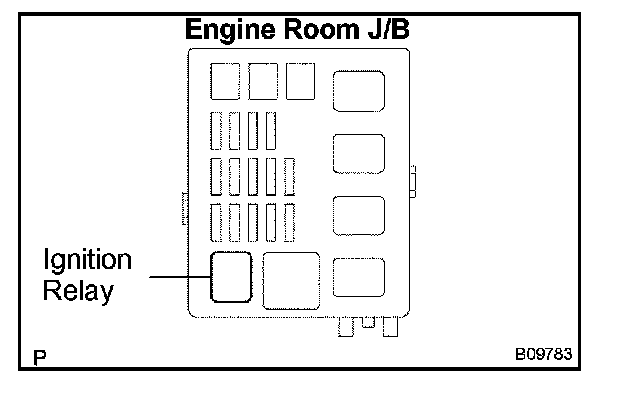

1. REMOVE IGNITION RELAY (Marking: IG2)

2. INSPECT IGNITION RELAY




a. Inspect the relay continuity.

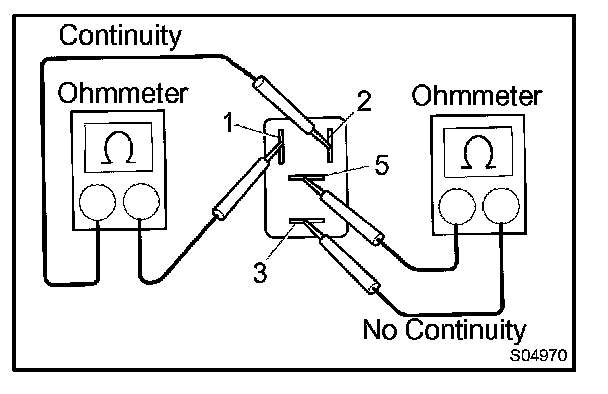

1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
2. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.




b. Inspect the relay operation.

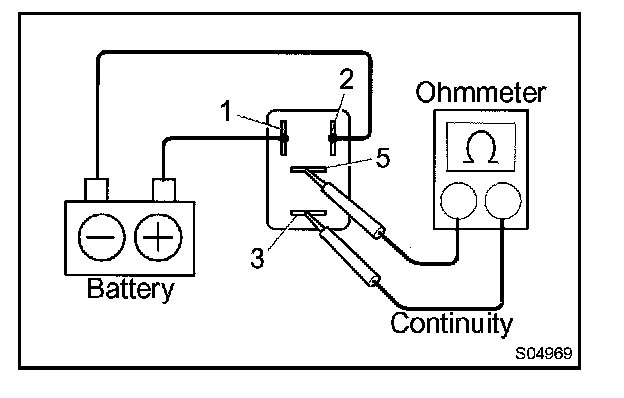

1. Apply battery positive voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.

3. REINSTALL IGNITION RELAY
