Blower Motor Relay: Testing and Inspection

INSPECTION

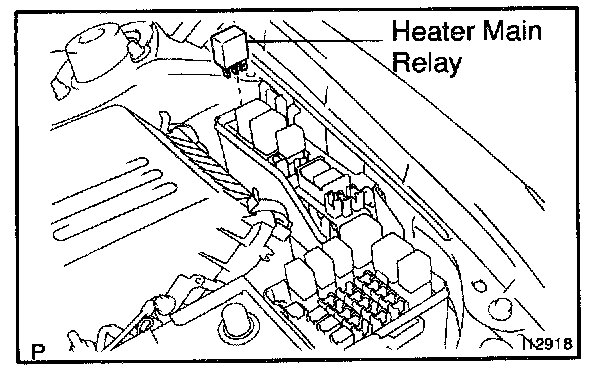

1. REMOVE HEATER MAIN RELAY FROM N0.2 J/B

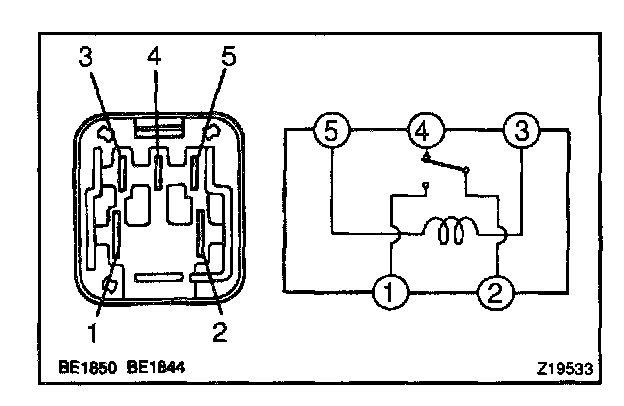

2. INSPECT HEATER MAIN RELAY (Marking: HTR) CONTINUITY
If continuity is not as specified, replace the relay
