Definition of Terms
Definition of Terms
Definition Of Terms:

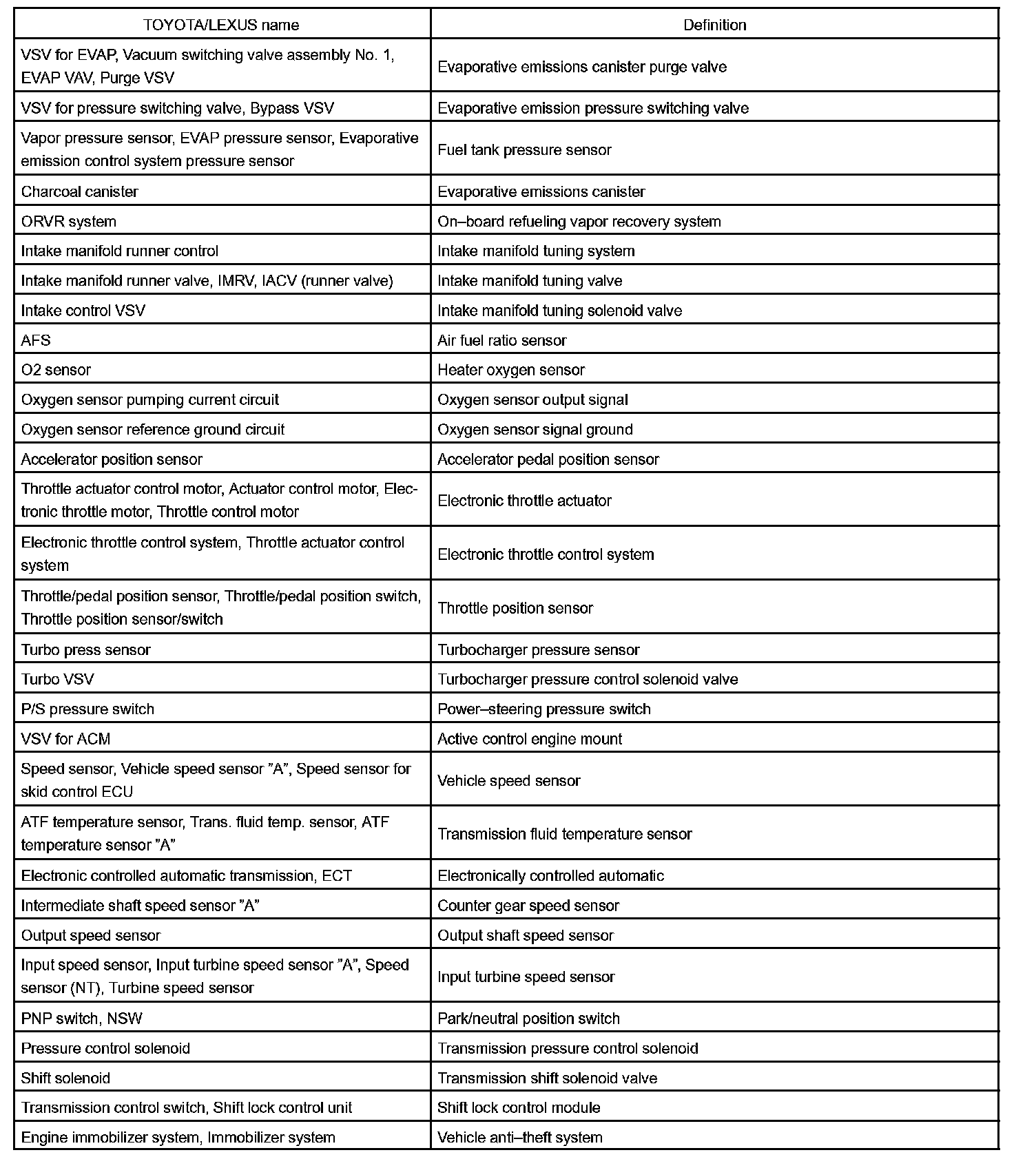

Toyota/Lexus Part And System Name List Part 1:

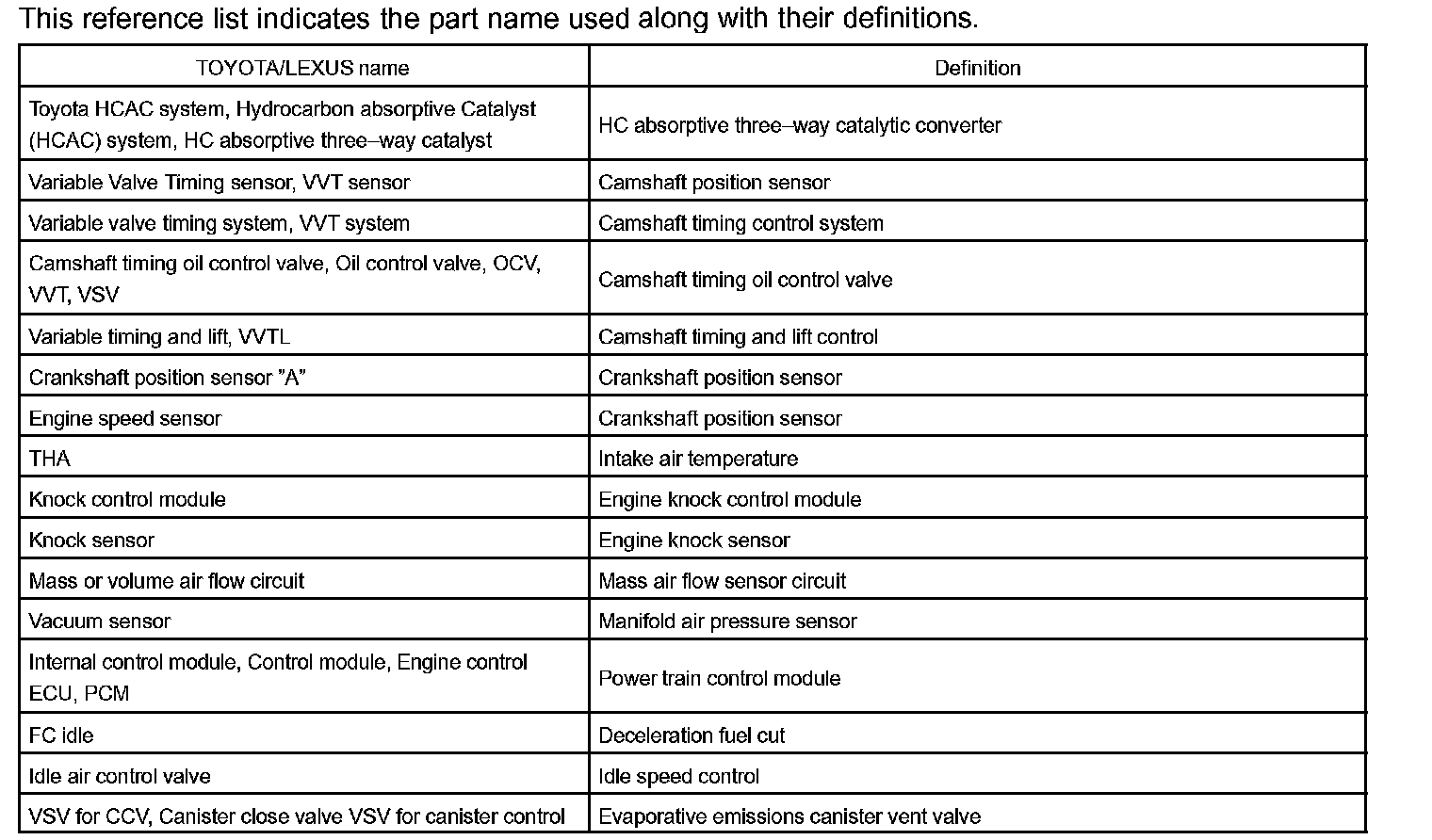

Toyota/Lexus Part And System Name List Part 2:
