Catalytic Converter: Locations

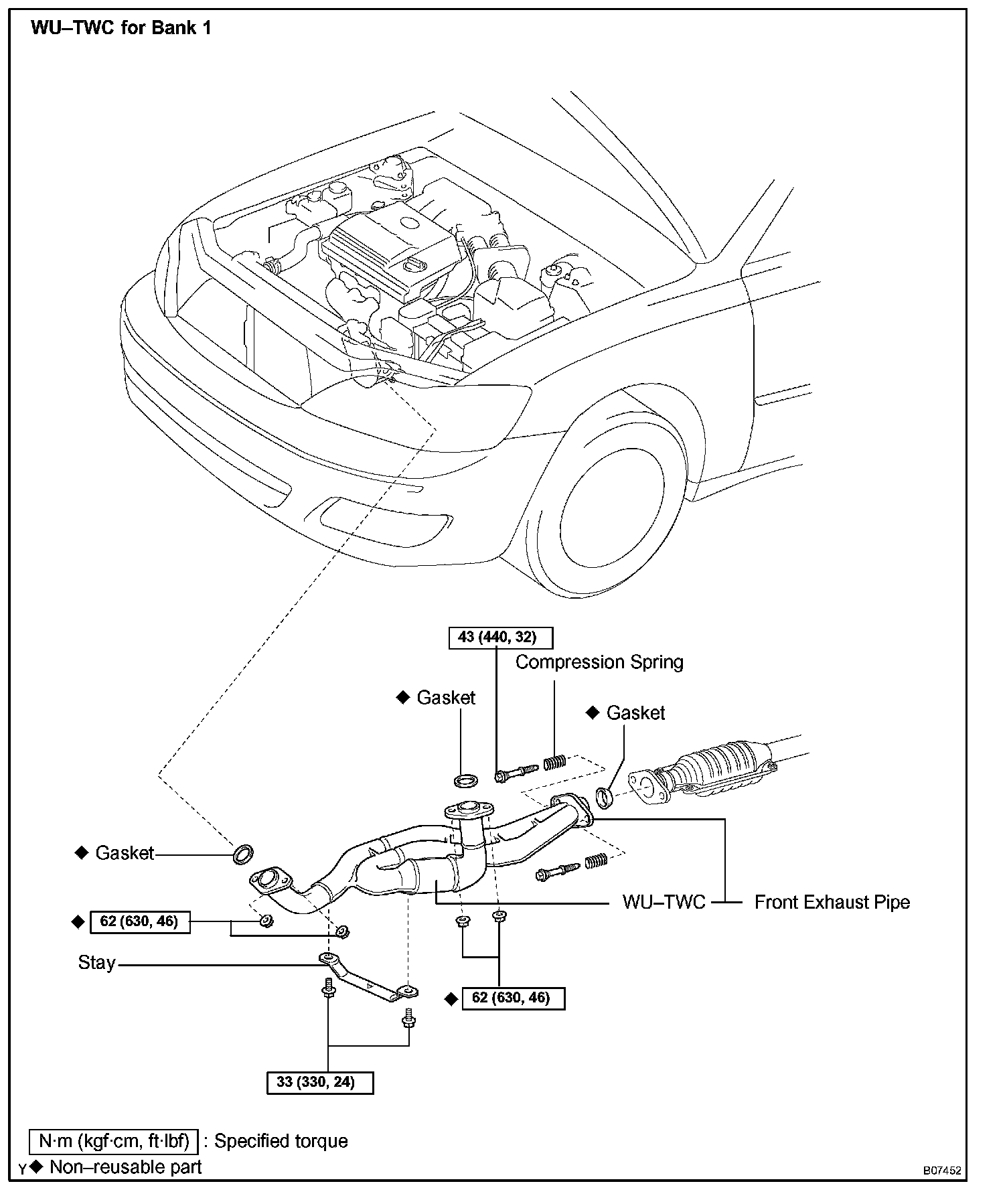

Warm Up Three-way Catalytic Converter (WU-TWC) System Part 1:

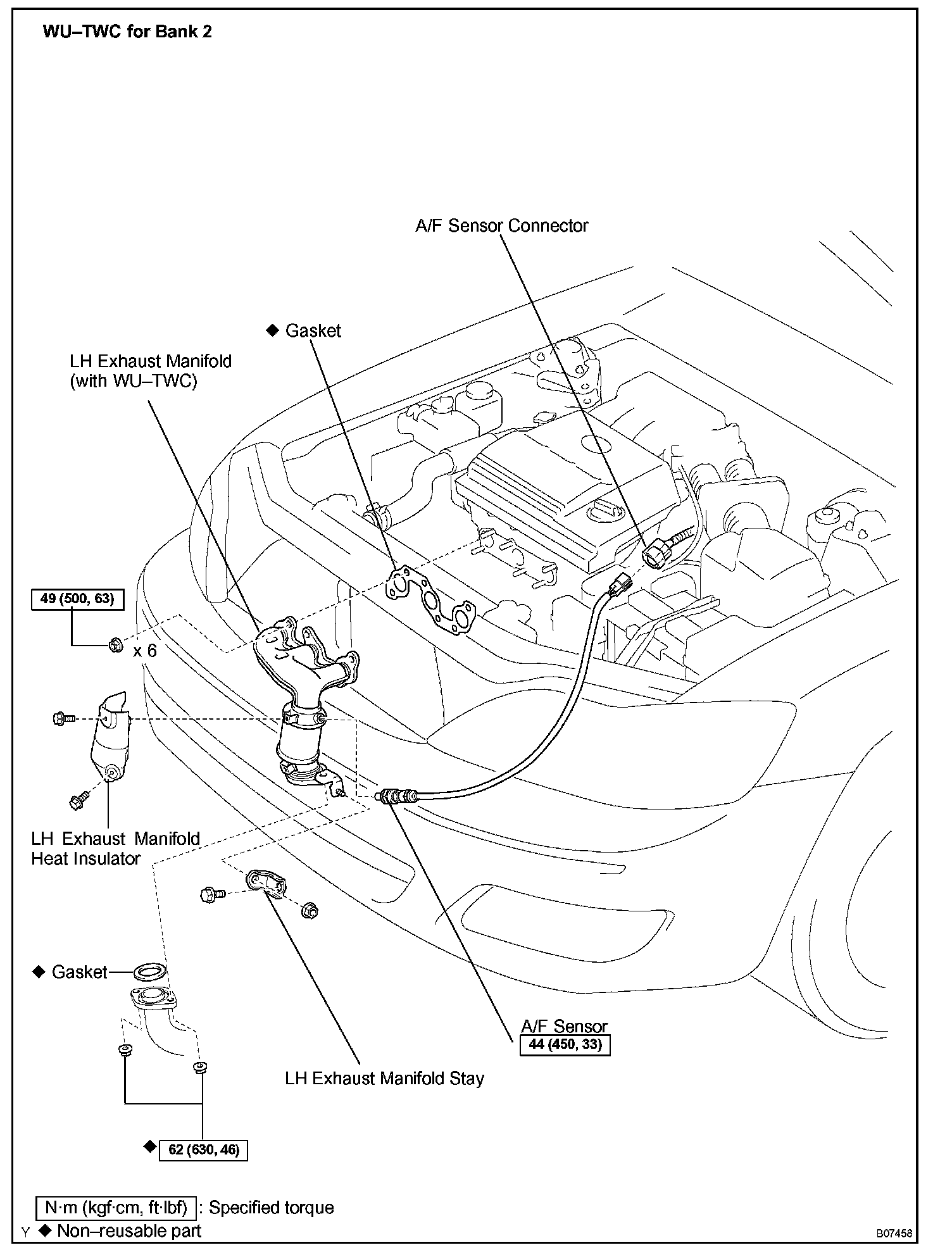

Warm Up Three-way Catalytic Converter (WU-TWC) System Part 2:

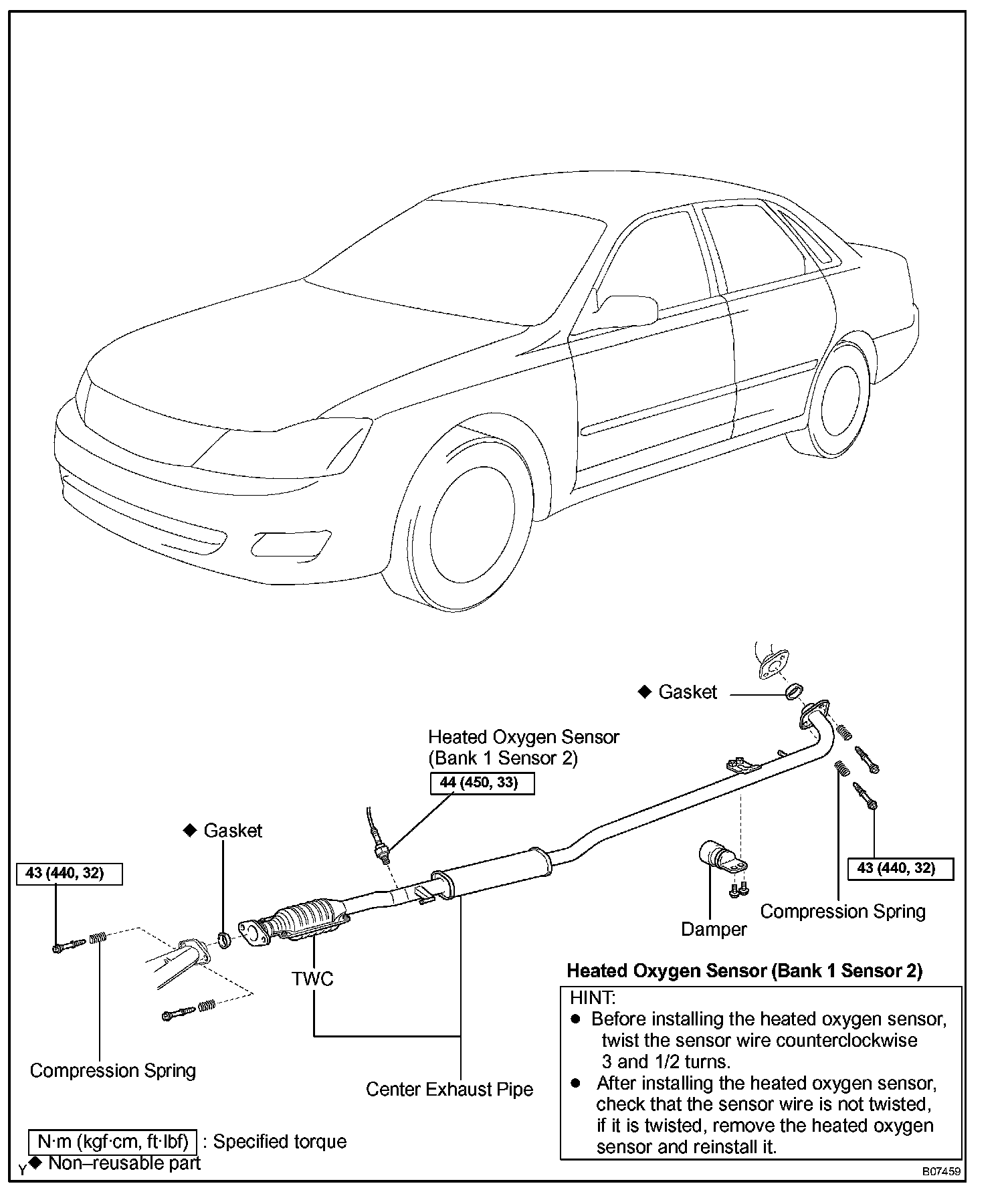

Three-way Catalytic Converter (TWC) System:
