Lamp Out Indicator: Testing and Inspection

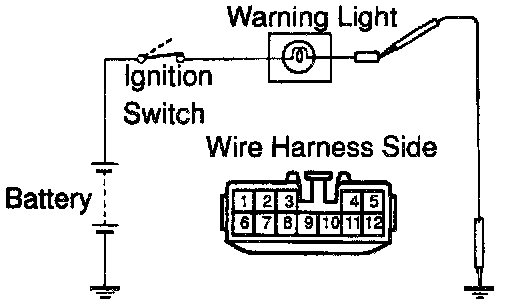

INSPECT REAR LIGHTS WARNING LIGHT
a. Disconnect the connector from the light failure sensor and ground terminal 4 on the wire harness side connector.
b. Start the engine, check that the warning light lights up.
If the warning light does not light up, test the bulb or inspect wire harness.







INSPECT LIGHT FAILURE SENSOR CIRCUIT

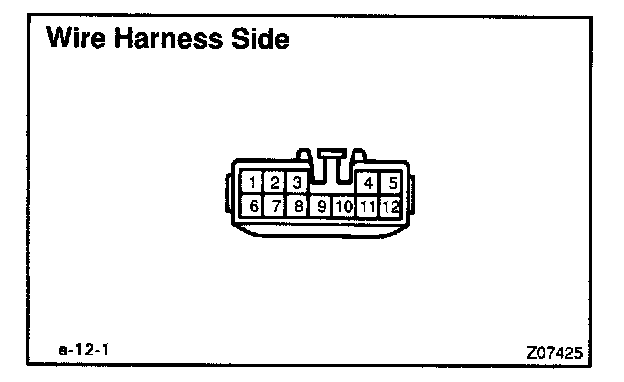

Disconnect the connector from the sensor and inspect the connector on the wire harness side, as shown.
If the circuit is as specified, replace the sensor. If the circuit is not as specified, inspect the circuits connected to other parts.
