Component Tests and General Diagnostics

INSPECTION

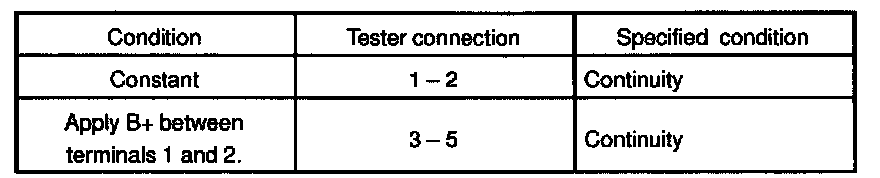

INSPECT BACK-UP LIGHT RELAY CONTINUITY
If continuity is not as specified, replace the relay.
