Driver/Vehicle Information Display: Testing and Inspection

Combination Meter:

INSPECT MULTI INFORMATION DISPLAY CIRCUIT

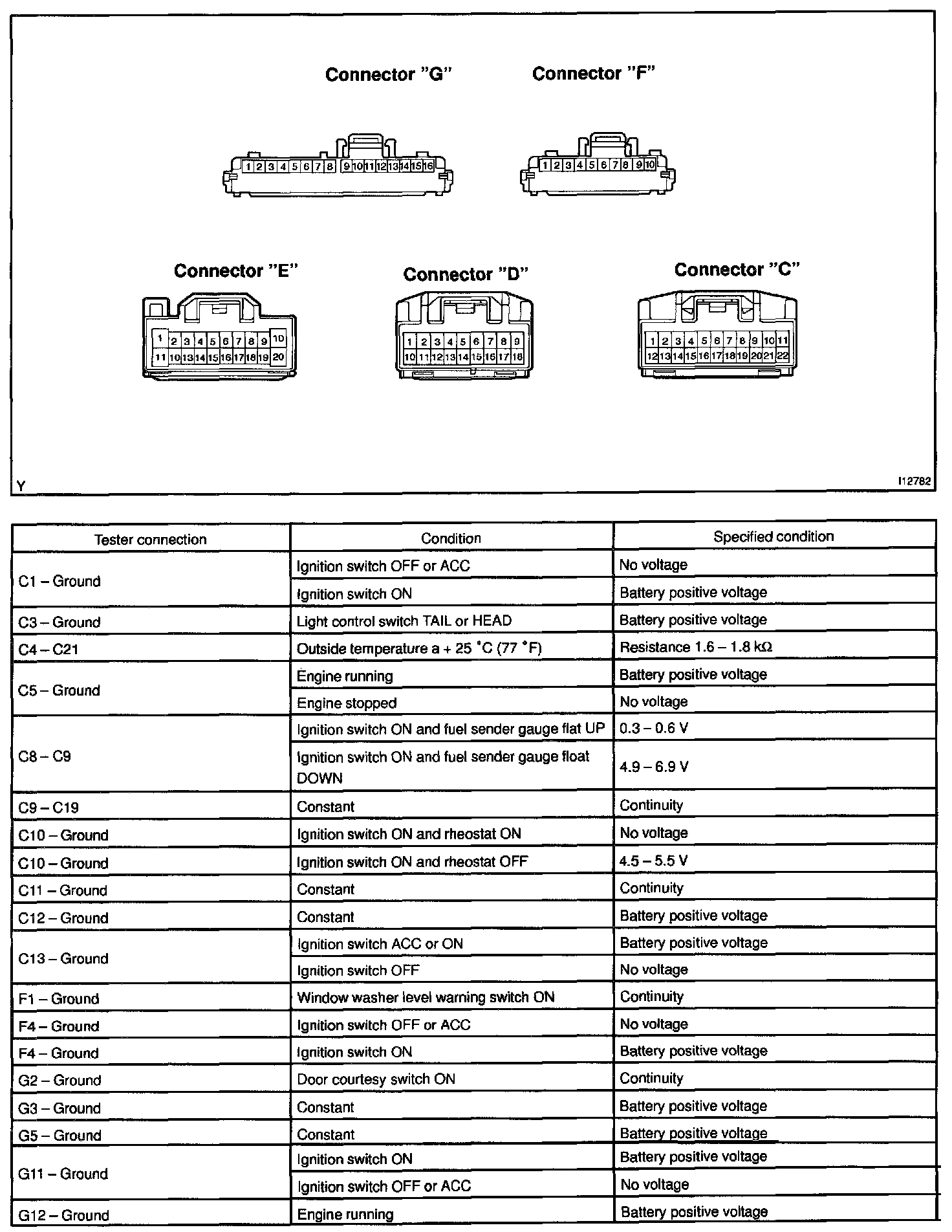

Disconnect connector "C", "D", "E", "F", "G" from the multi information display and inspect the connectors on the wire harness side.
If circuit is not as specified, wiring diagram and inspect the circuits connected to other parts.




INSPECT BETWEEN COMBINATION METER AND MULTI INFORMATION DISPLAY CIRCUIT
Disconnect connector "B", "D" from the multi information display and combination meter inspect the connectors on the wire harness side as shown in the table.




If circuit is not as specified, wiring diagram and inspect the circuits connected to other parts.
