IG Power Source Circuit
CIRCUIT DESCRIPTIONThis is the power source for the A/C control assembly (contains the ECU) and servomotors, etc

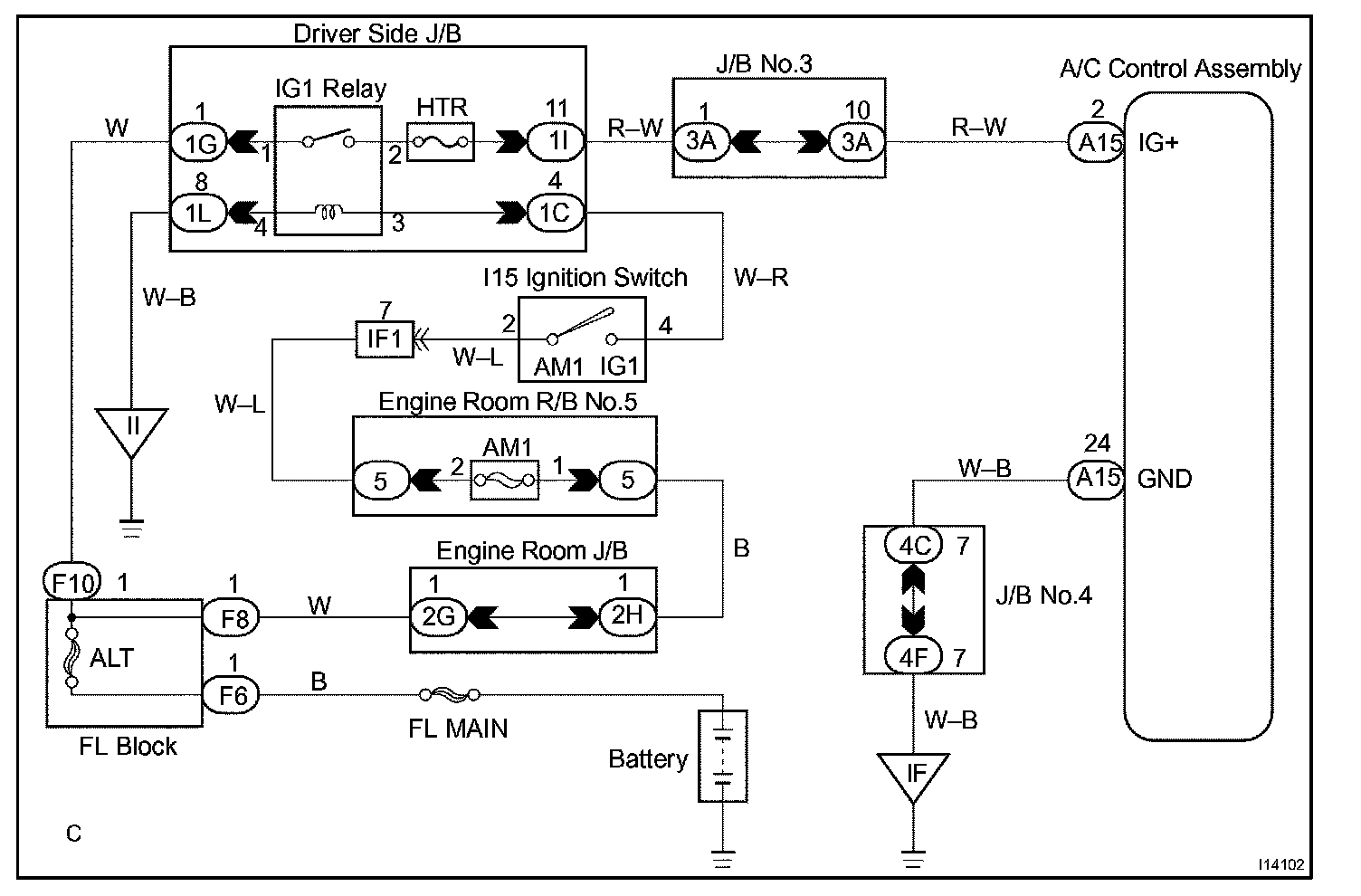

Wiring Diagram:

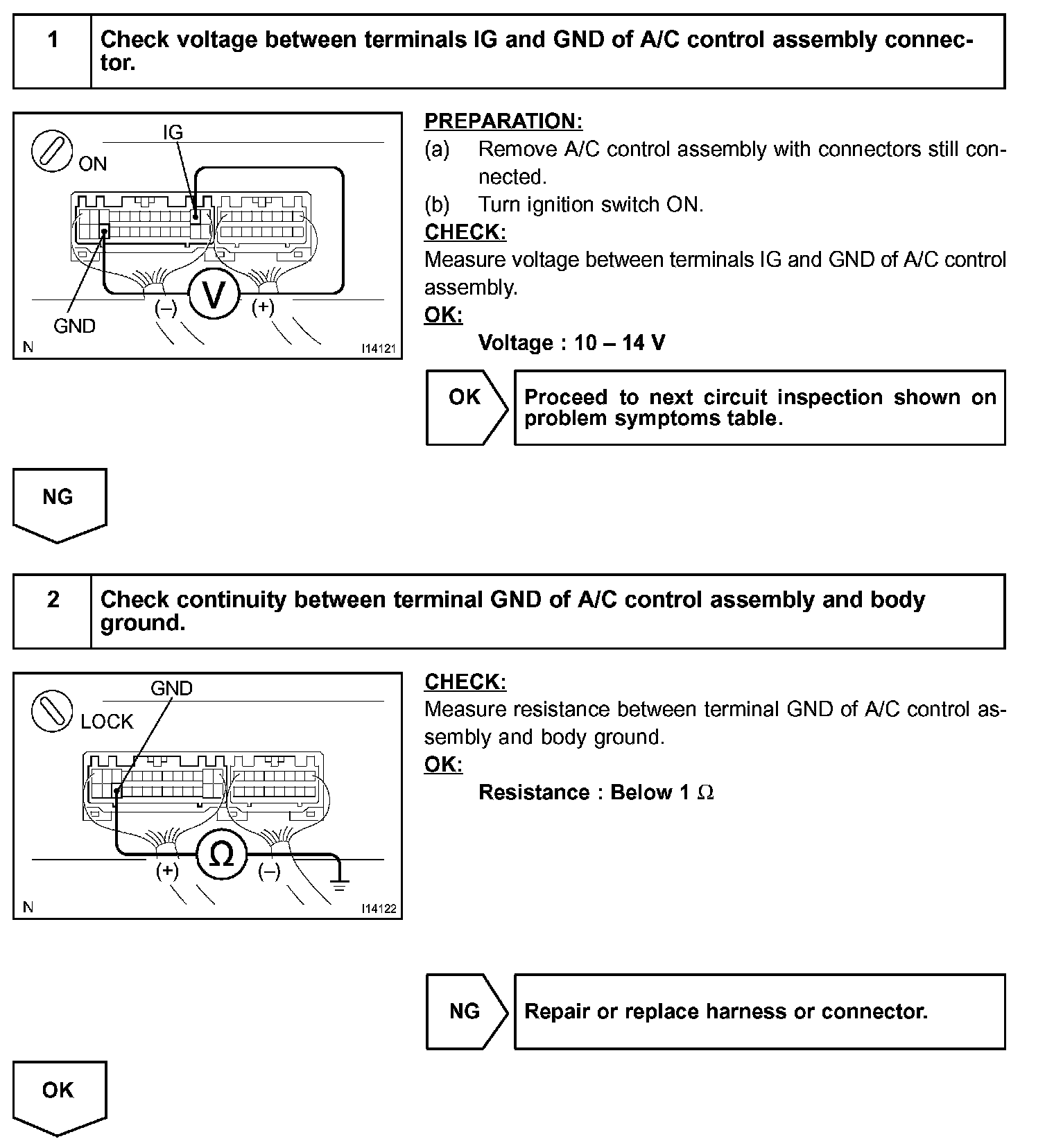

Step 1 - 2:
Step 3:
INSPECTION PROCEDURE
This is the power source for the A/C control assembly (contains the ECU) and servomotors, etc
INSPECTION PROCEDURE
