Cabin Temperature Sensor / Switch: Testing and Inspection
ROOM TEMPERATURE SENSORINSPECTION

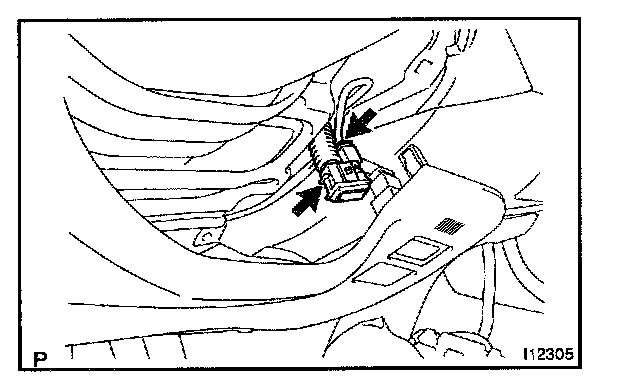

1. REMOVE ROOM TEMPERATURE SENSOR
a. Remove the lower No.1 panel.
b. Disconnect the connector.
c. Remove the sensor from the aspirator hose.
2. INSPECT ROOM TEMPERATURE SENSOR CIRCUIT (See Heating and Air Conditioning; Testing and Inspection.)
3. INSTALL ROOM TEMPERATURE SENSOR
a. Install the sensor to the aspirator hose.
b. Connect the connector.
c. Install the lower No.1 panel.
