Cylinder Head Assembly: Application and ID

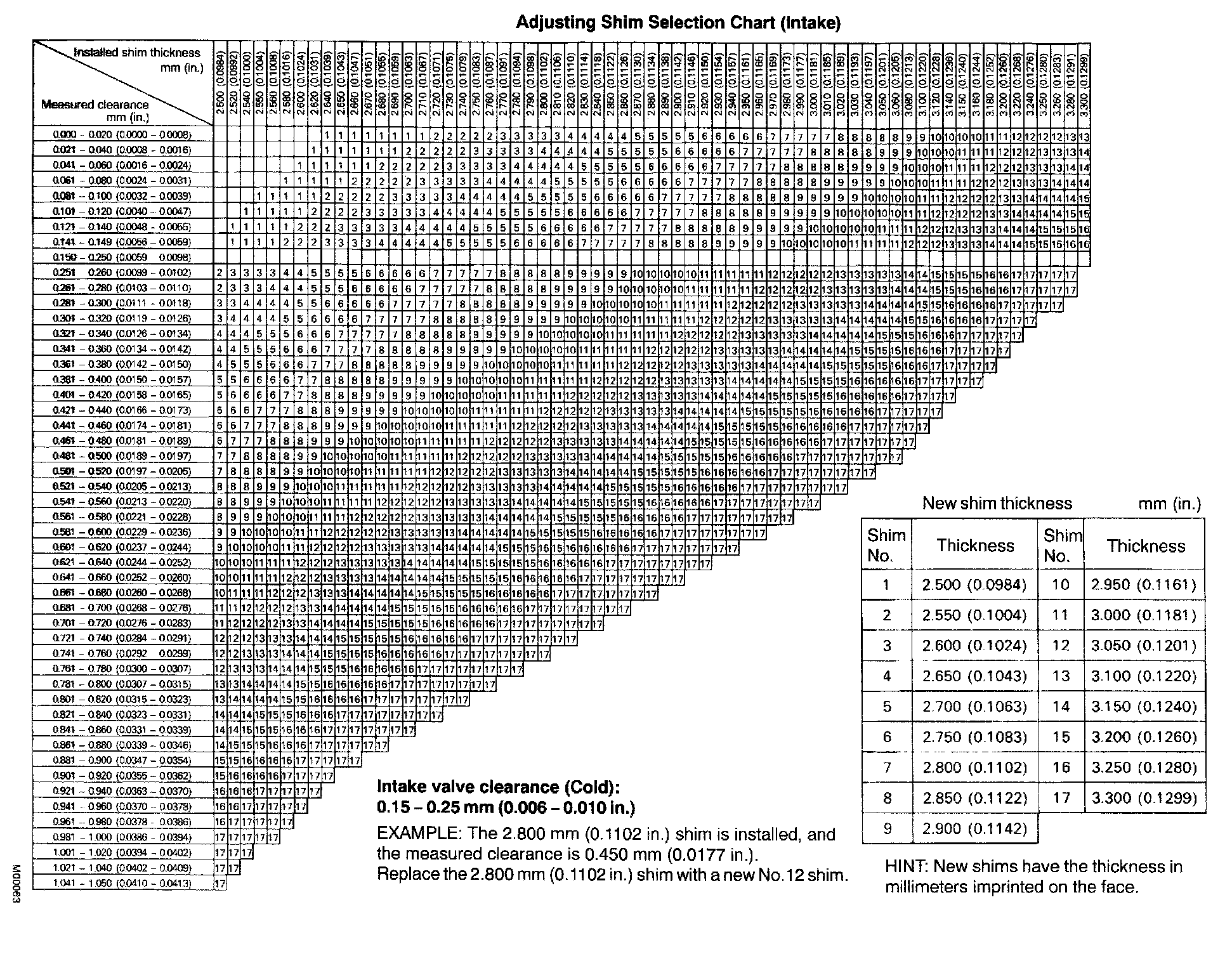

Adjusting Shim Selection Chart (Intake)

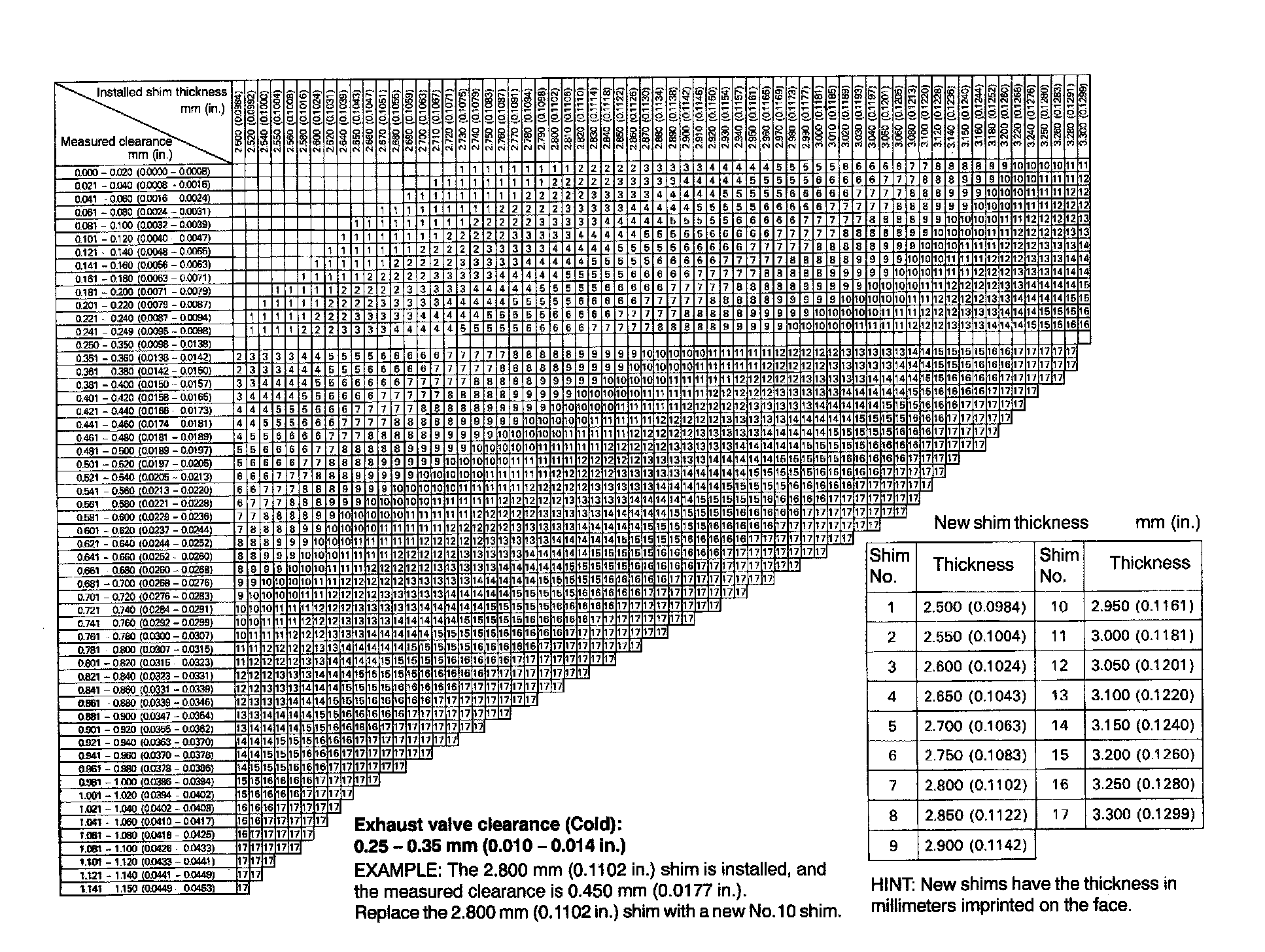

Adjusting Shim Selection Chart (Exhaust)
