Air Conditioning (Automatic A/C)

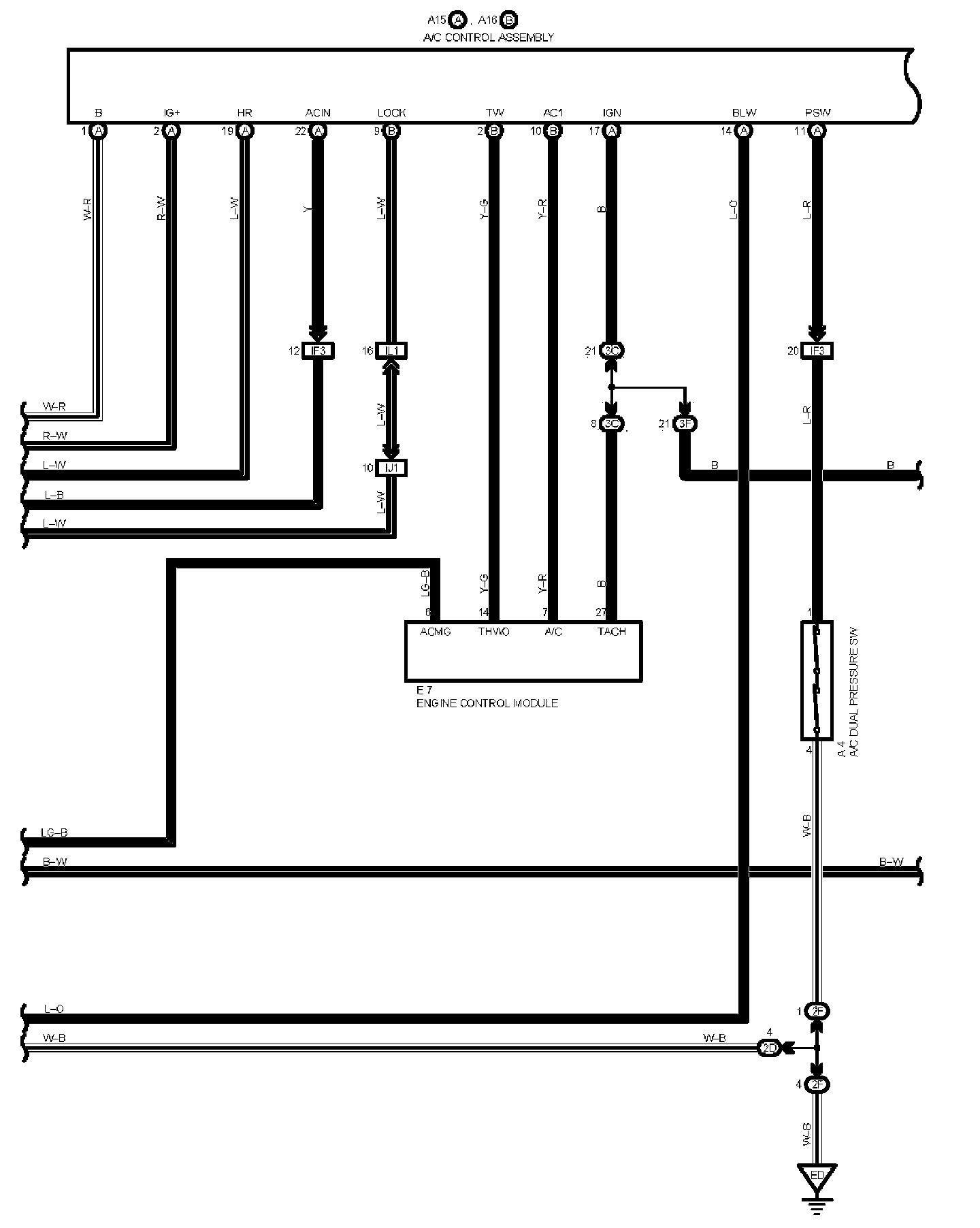

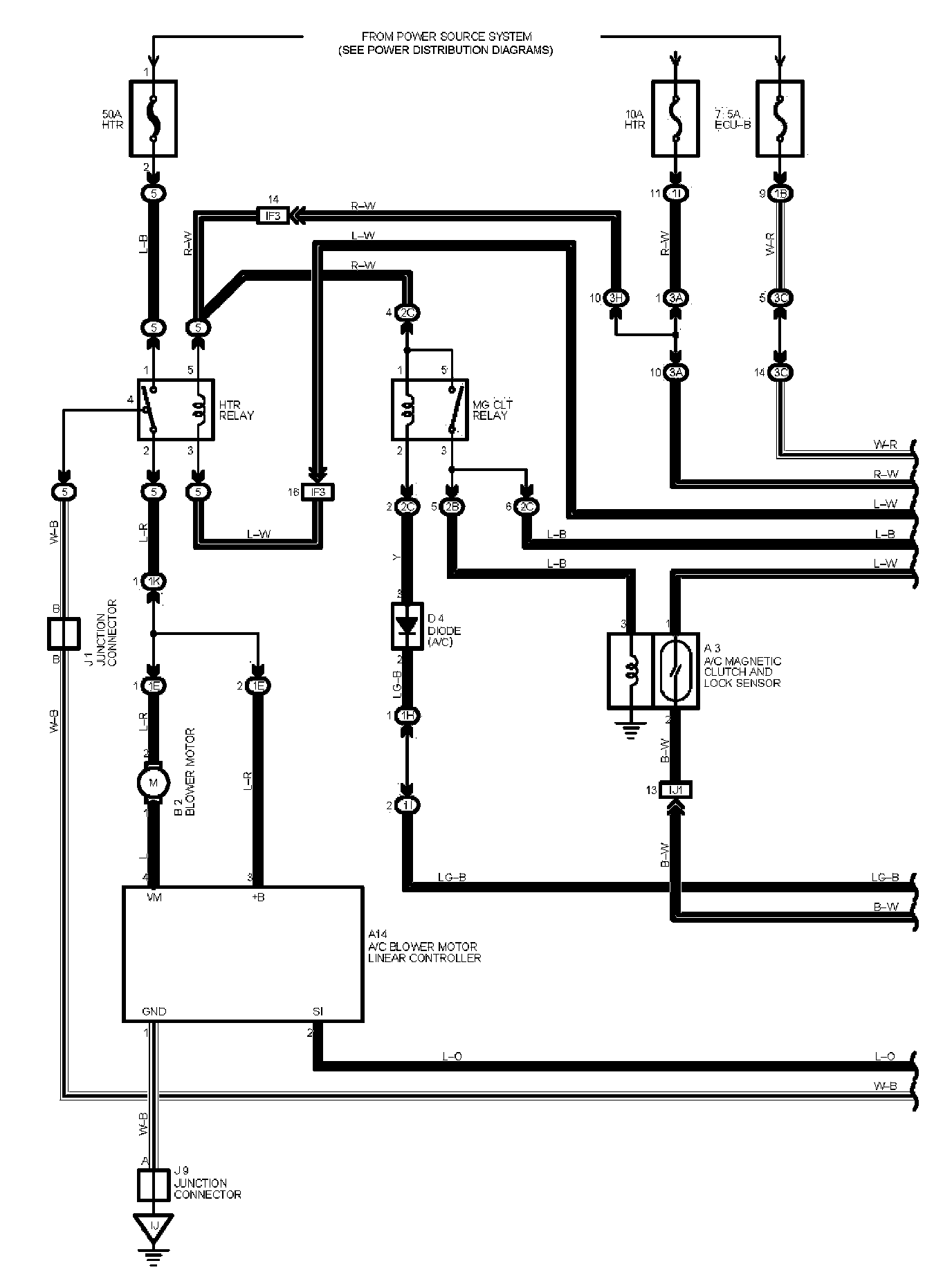

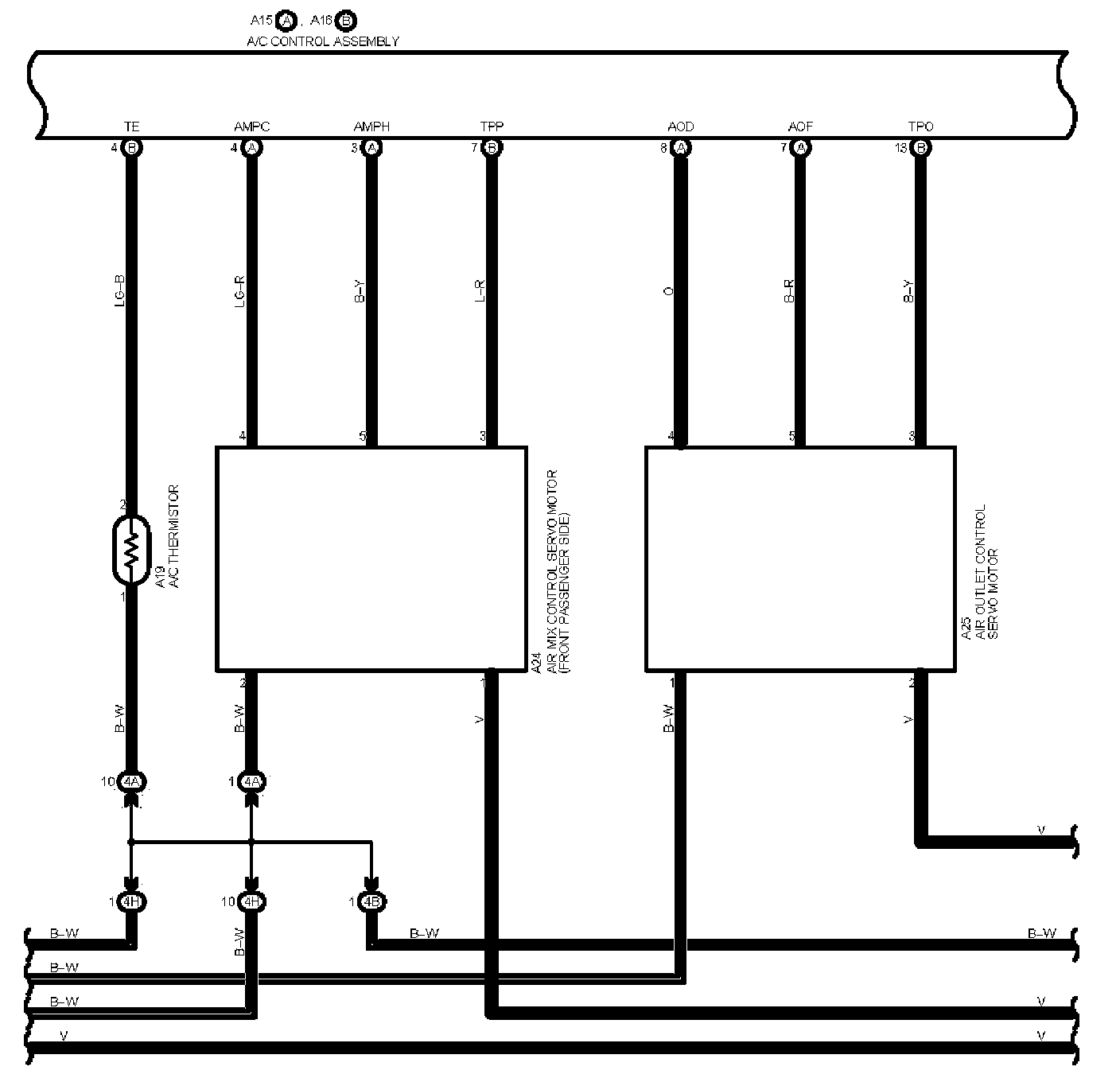

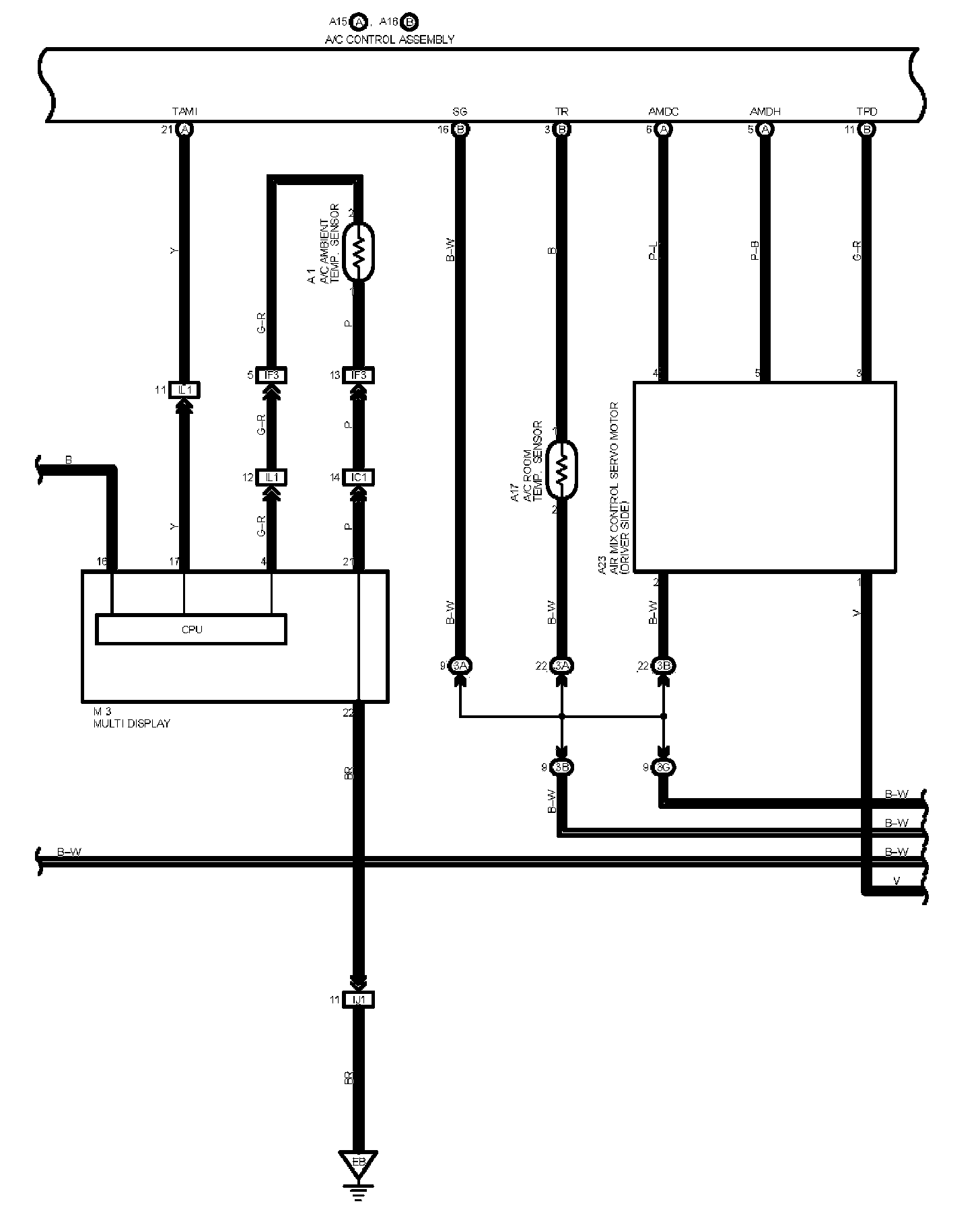

Air Conditioning (Automatic A/C) Part 1:

Air Conditioning (Automatic A/C) Part 2:

Air Conditioning (Automatic A/C) Part 3:

Air Conditioning (Automatic A/C) Part 4:

Air Conditioning (Automatic A/C) Part 5:

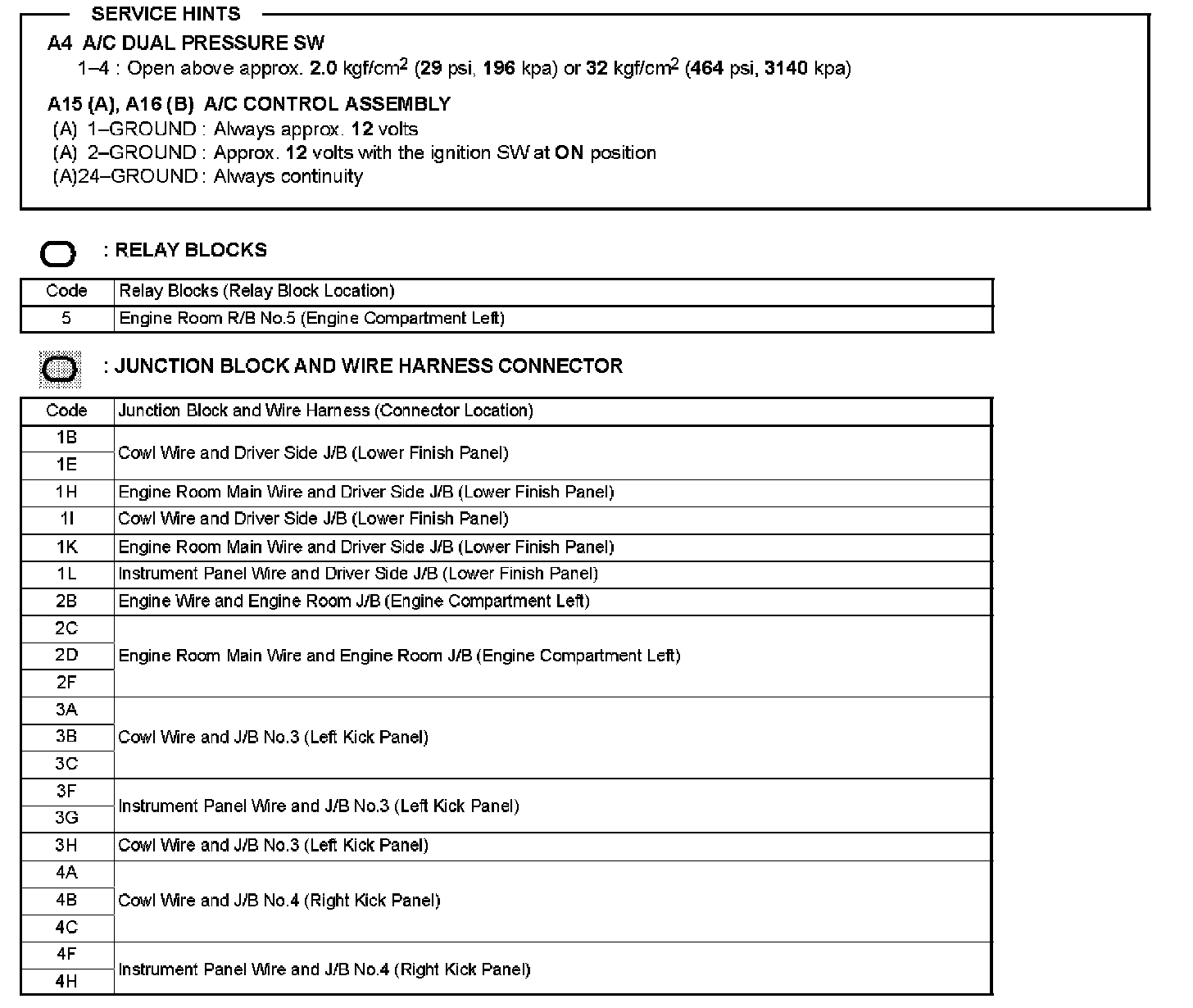

Diagram Legend Part 1:

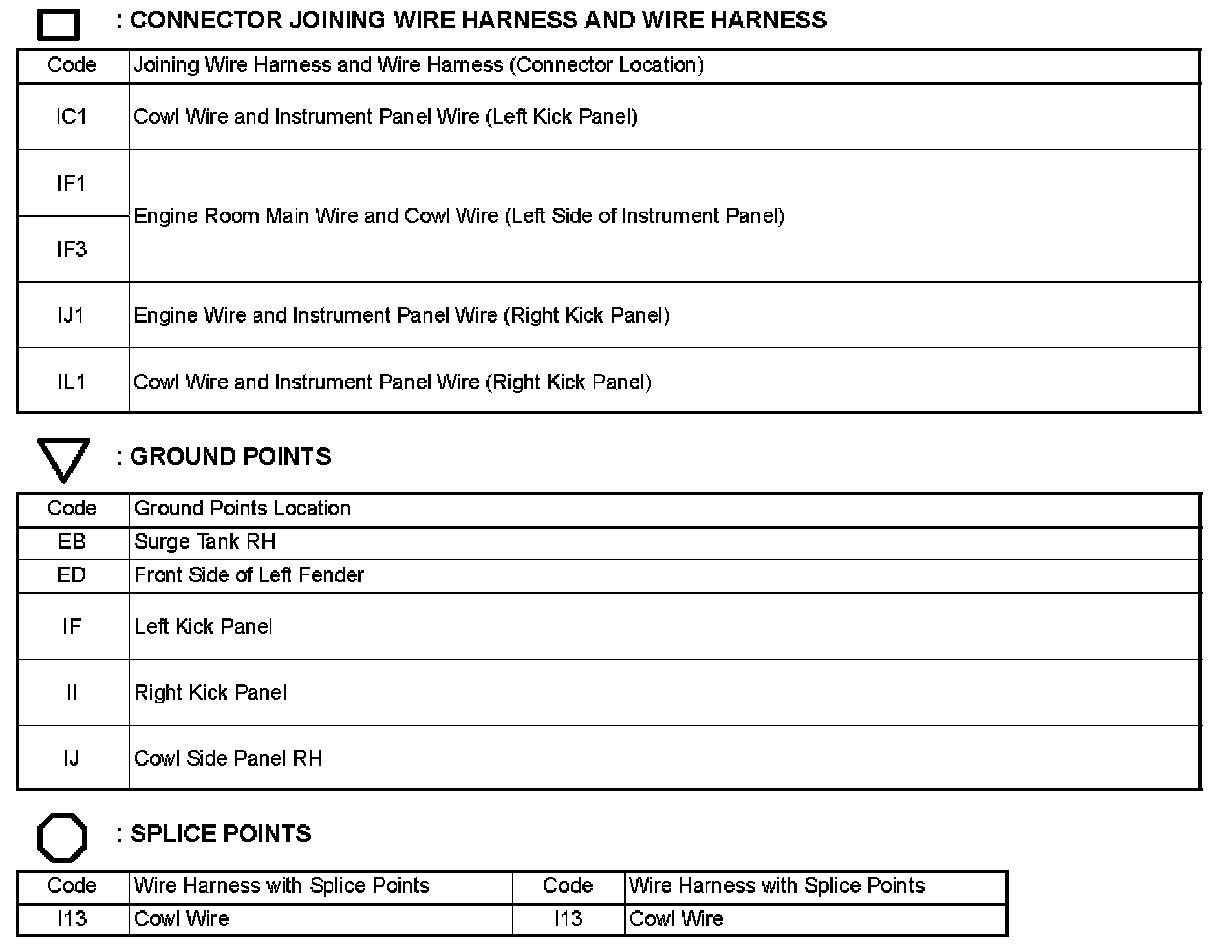

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
