VSC (w/ Traction Control)

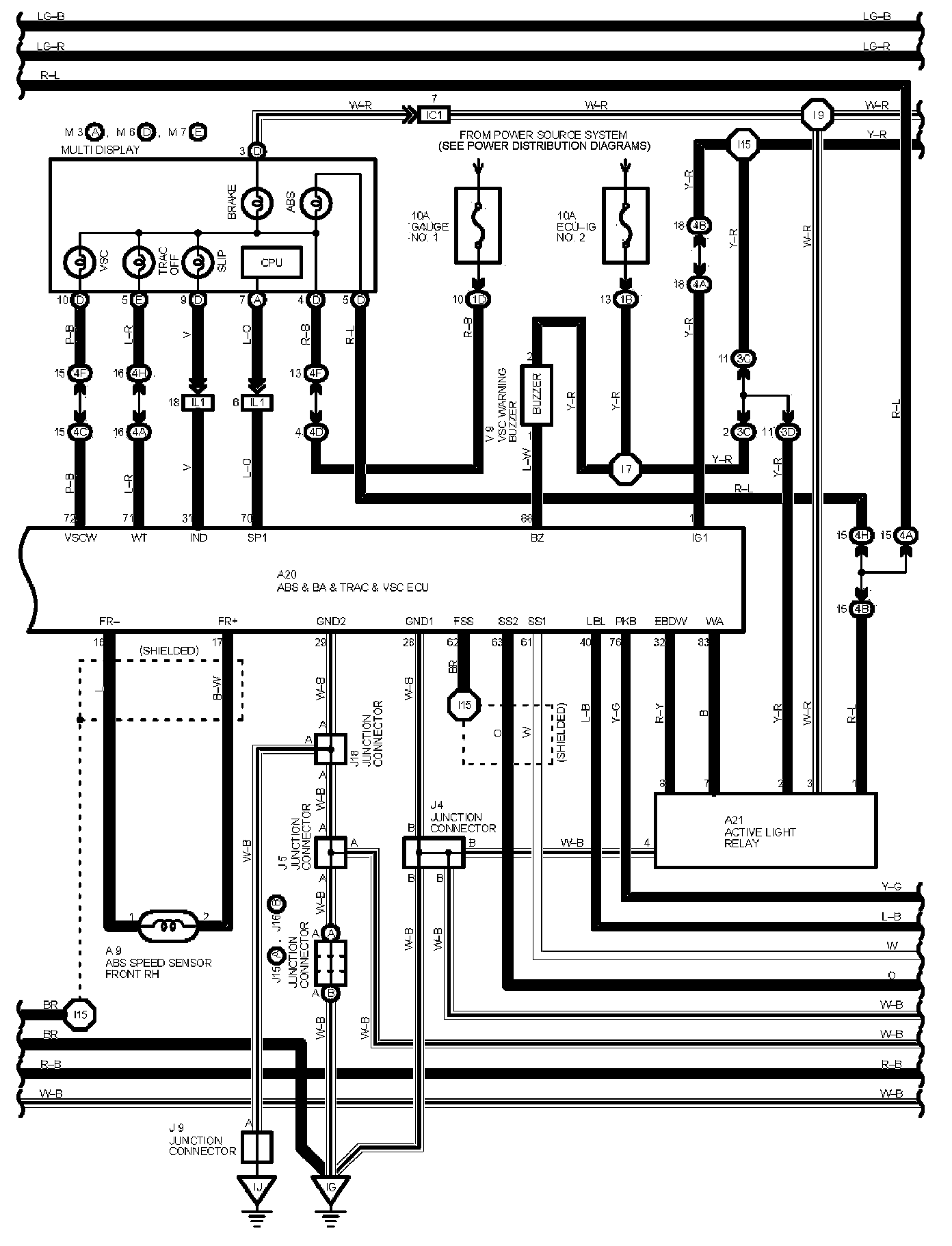

VSC (W/ Traction Control) Part 1:

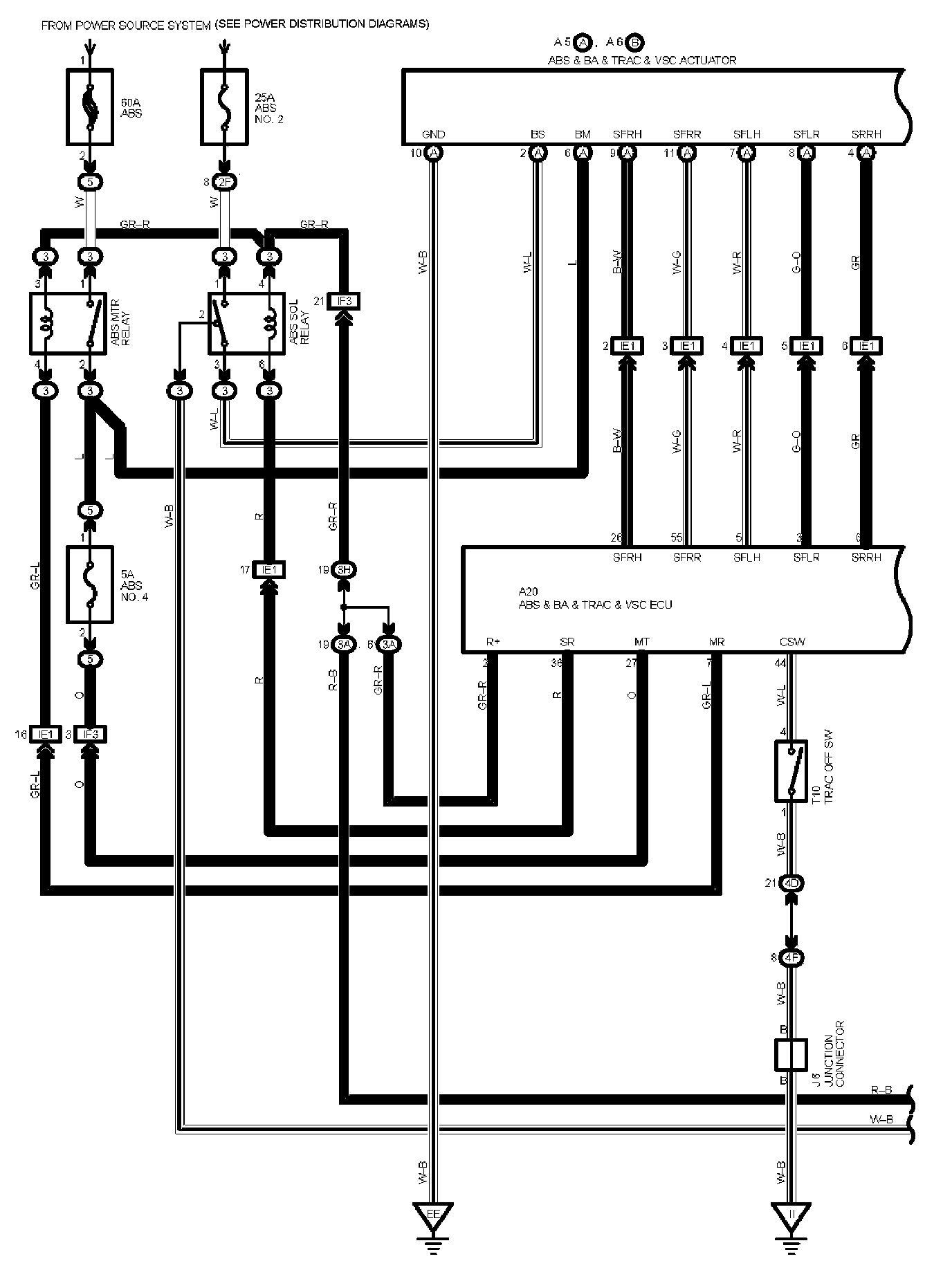

VSC (W/ Traction Control) Part 2:

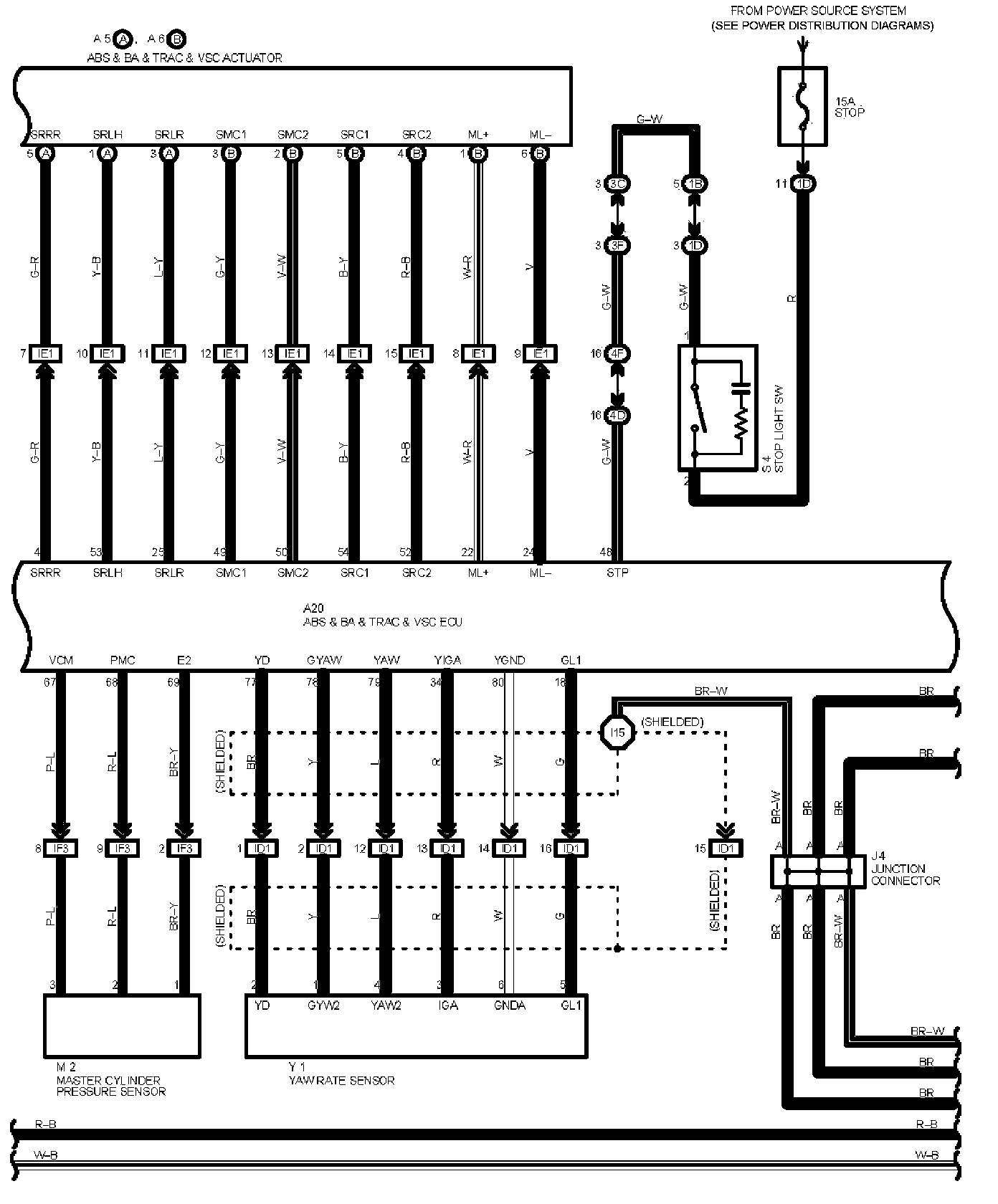

VSC (W/ Traction Control) Part 3:

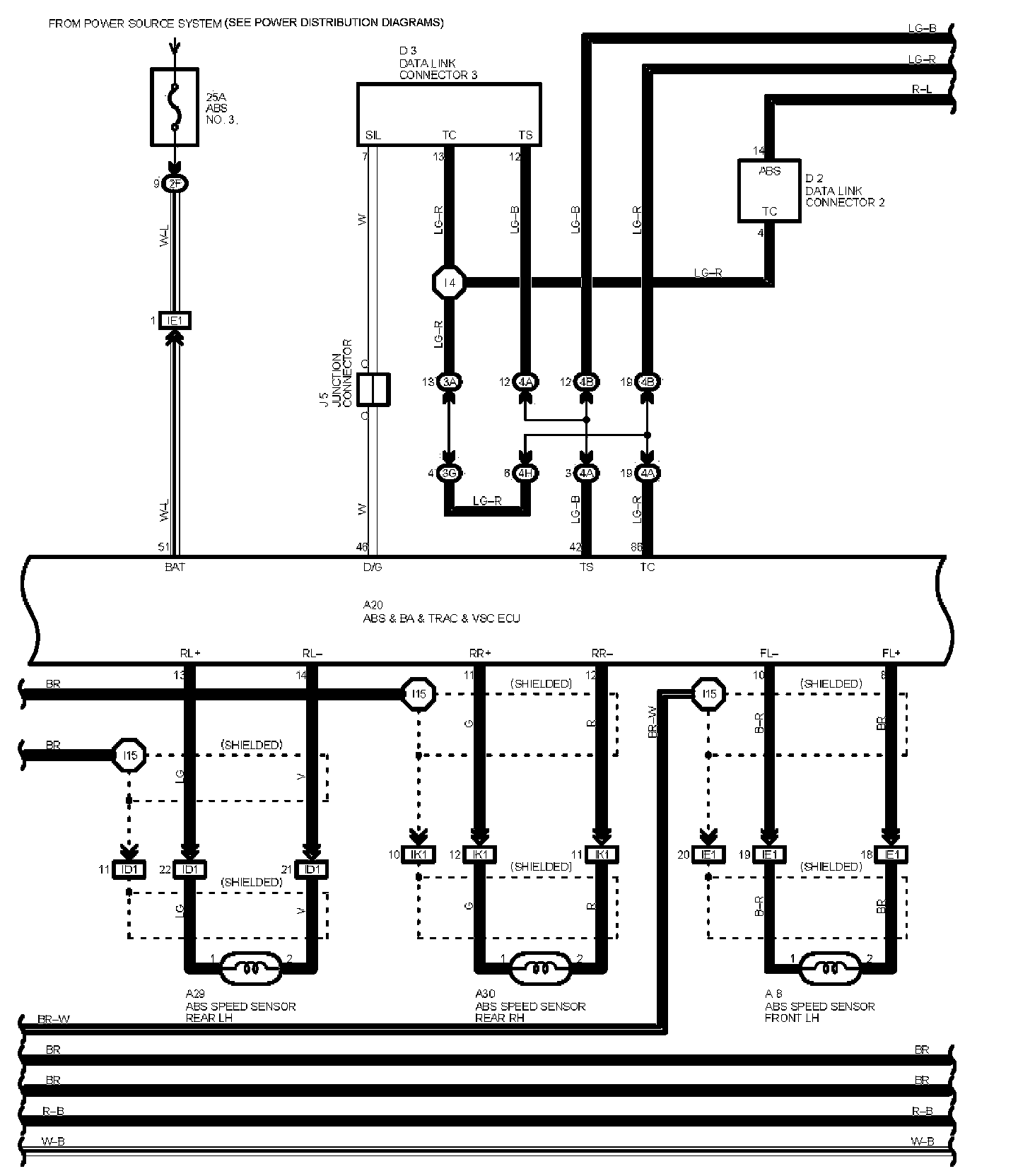

VSC (W/ Traction Control) Part 4:

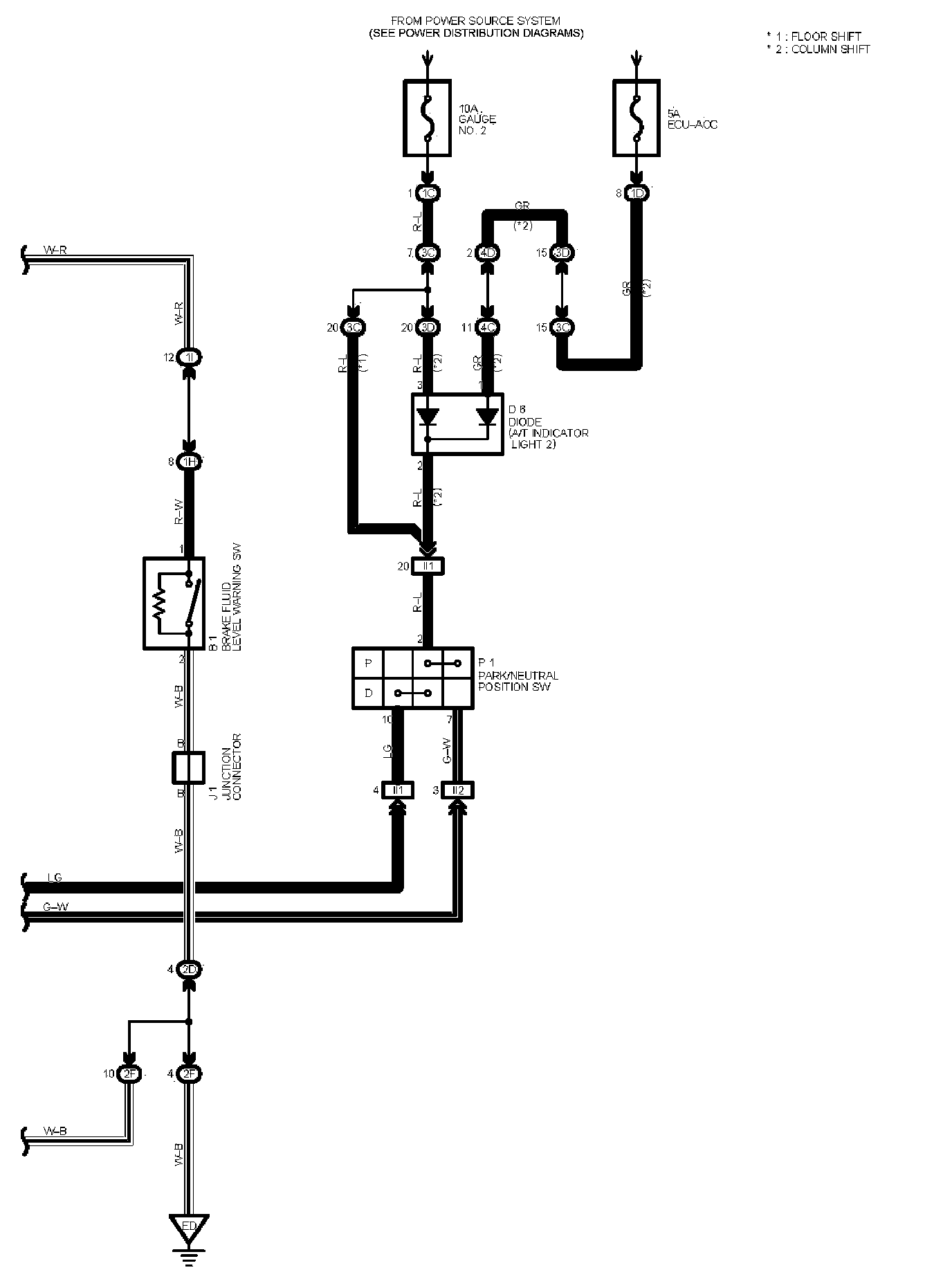

VSC (W/ Traction Control) Part 5:

VSC (W/ Traction Control) Part 6:

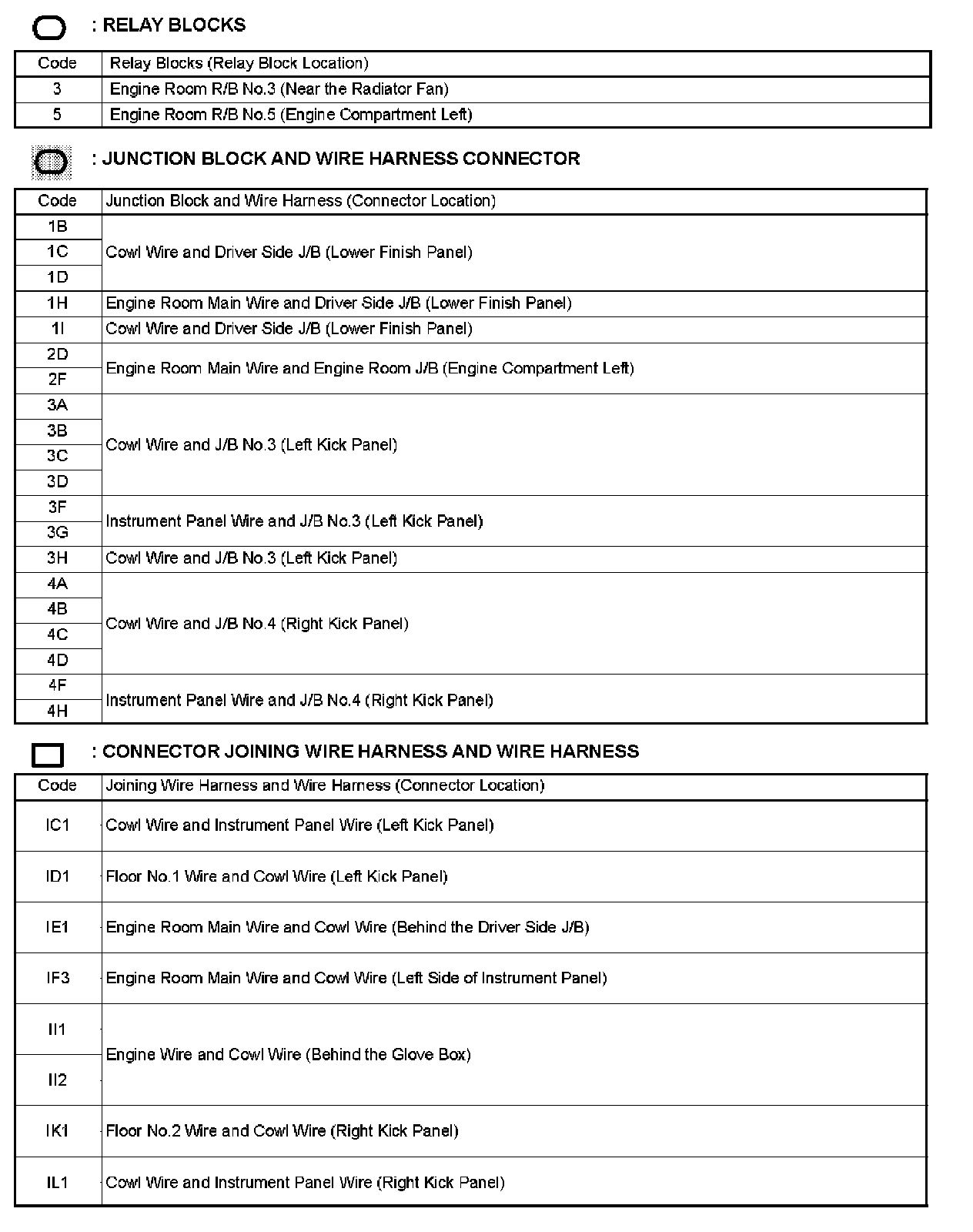

Diagram Legend Part 1:

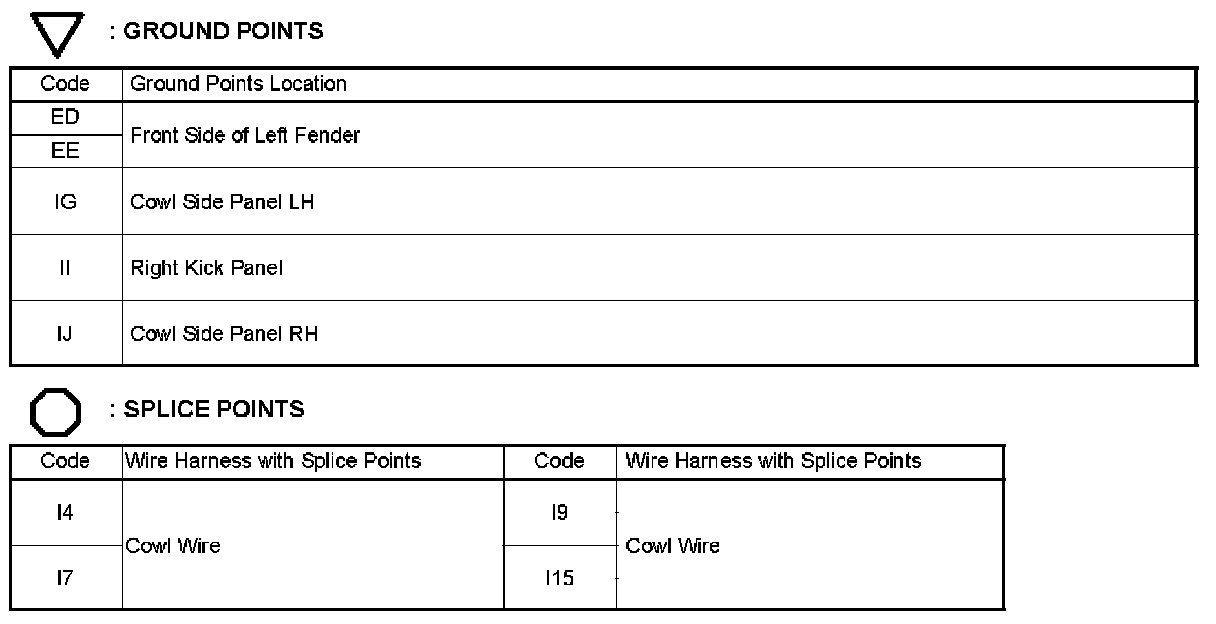

Diagram Legend Part 2:

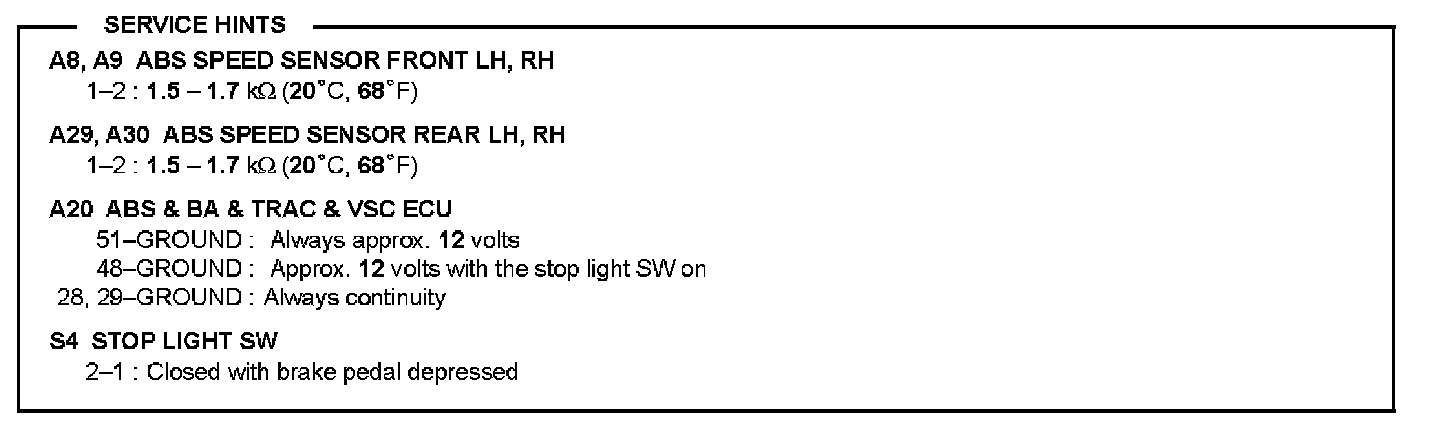

Diagram Legend Part 3:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
