Multiple Junction Connector

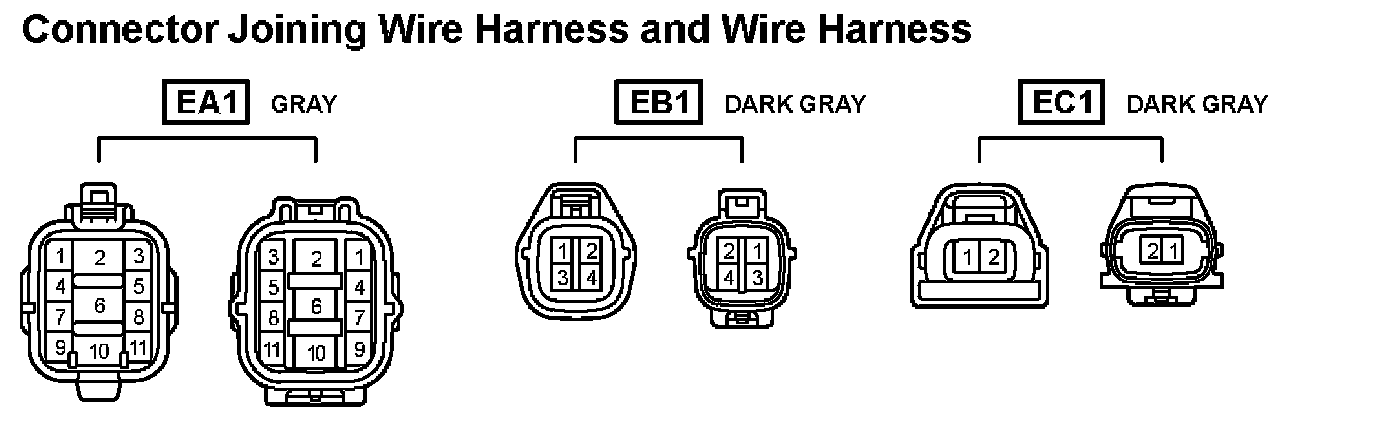

EA1 - EC1:

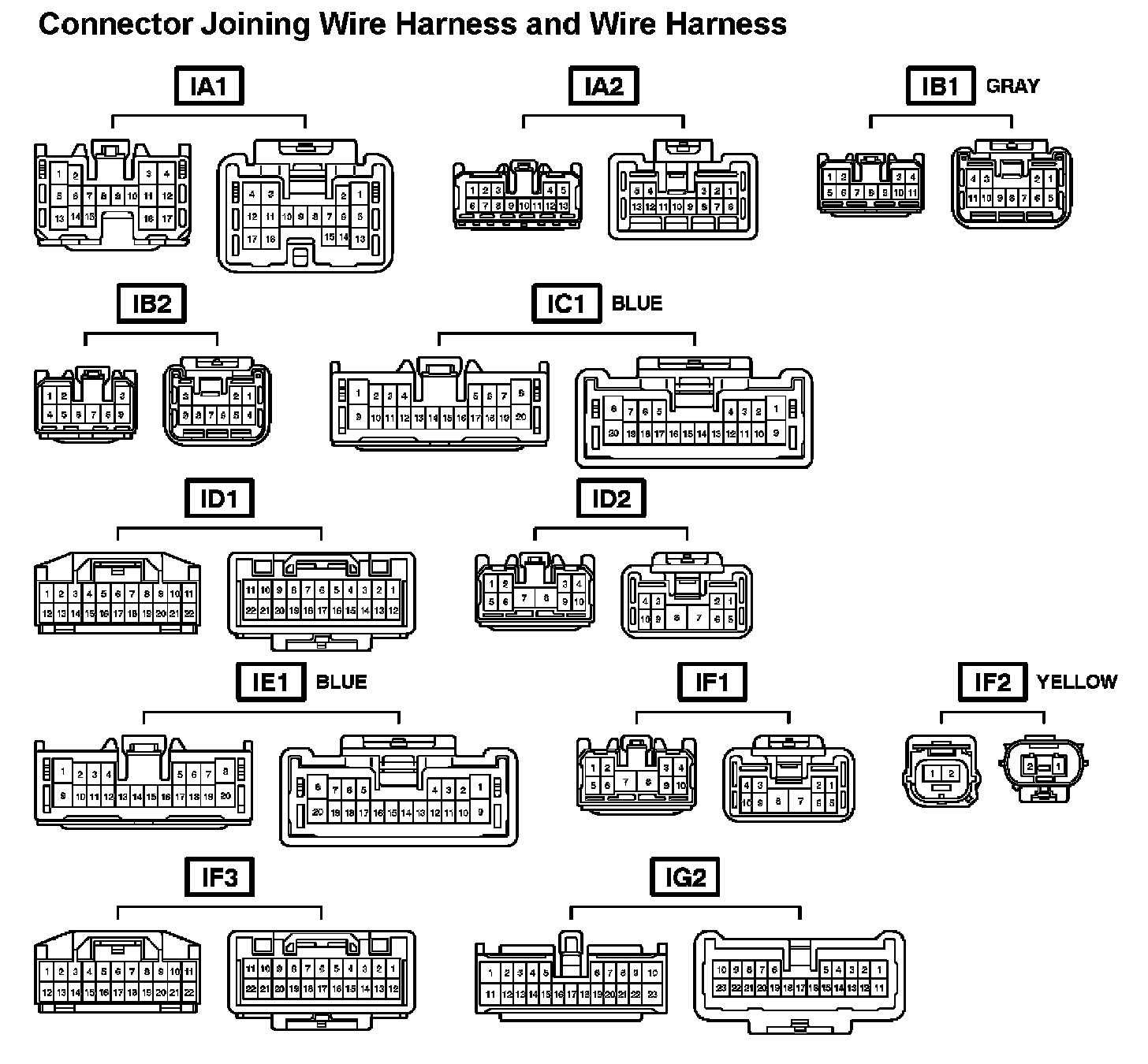

IA1 - IG2:

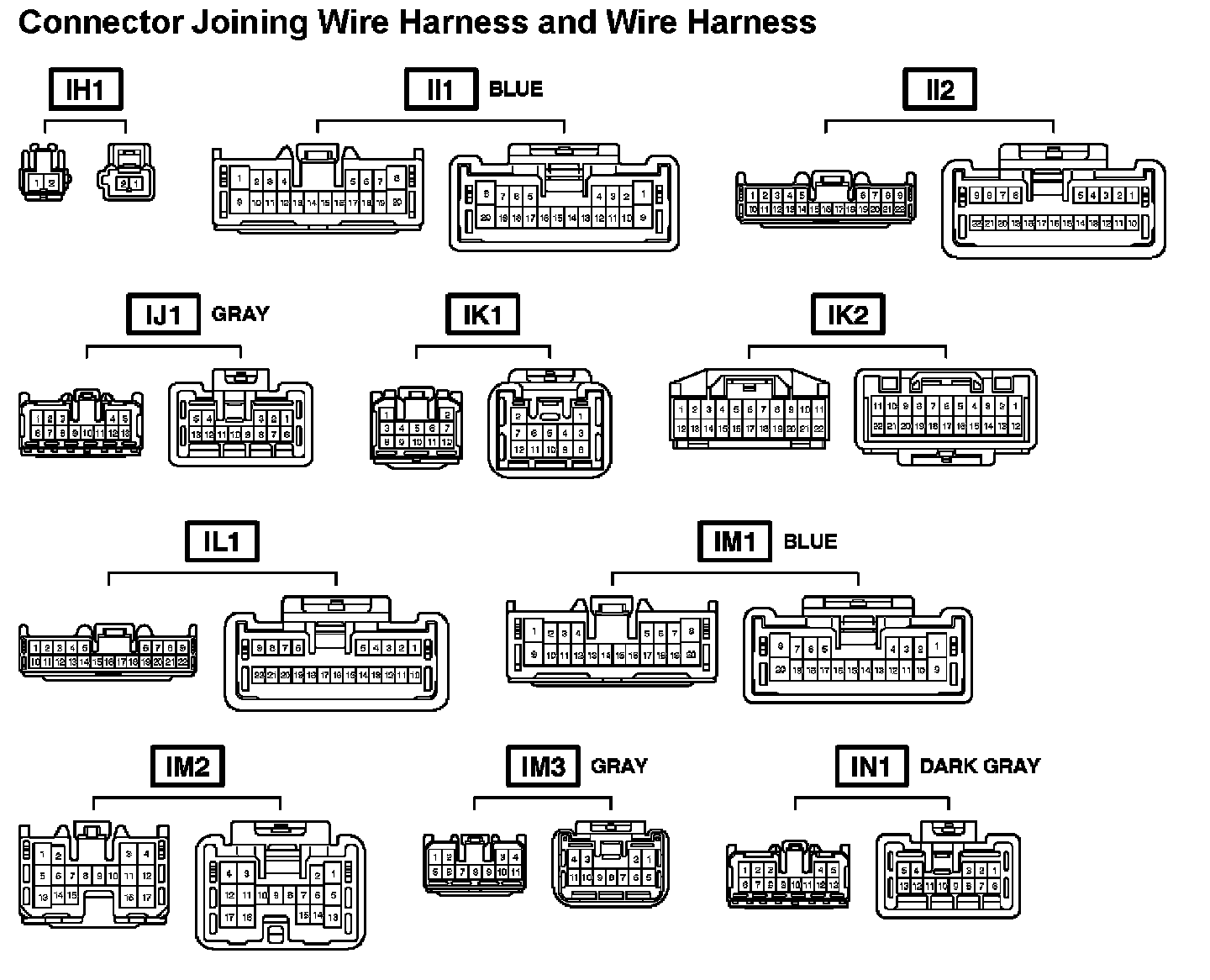

IH1 - IN1:

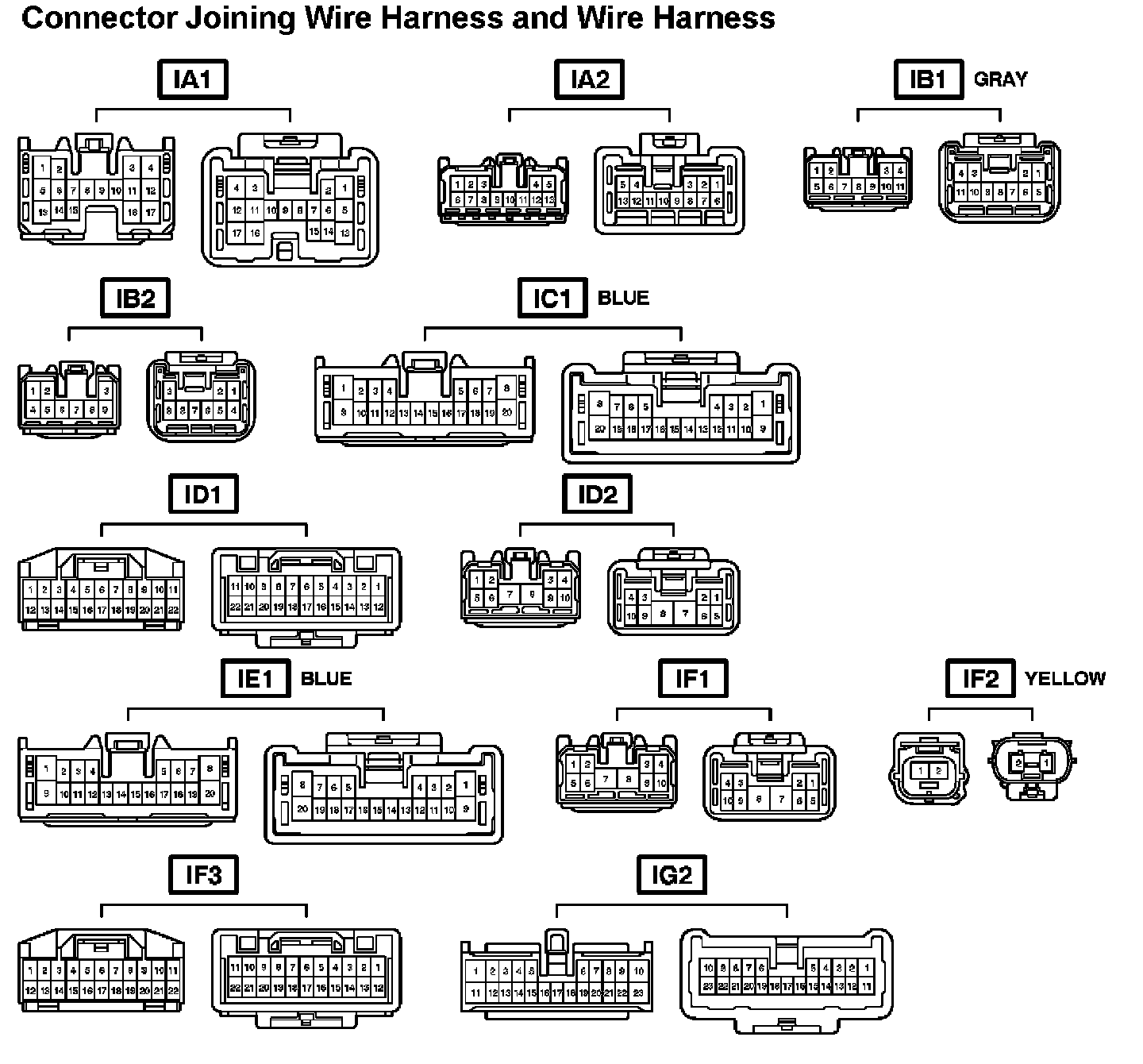

IA1 - IG2:

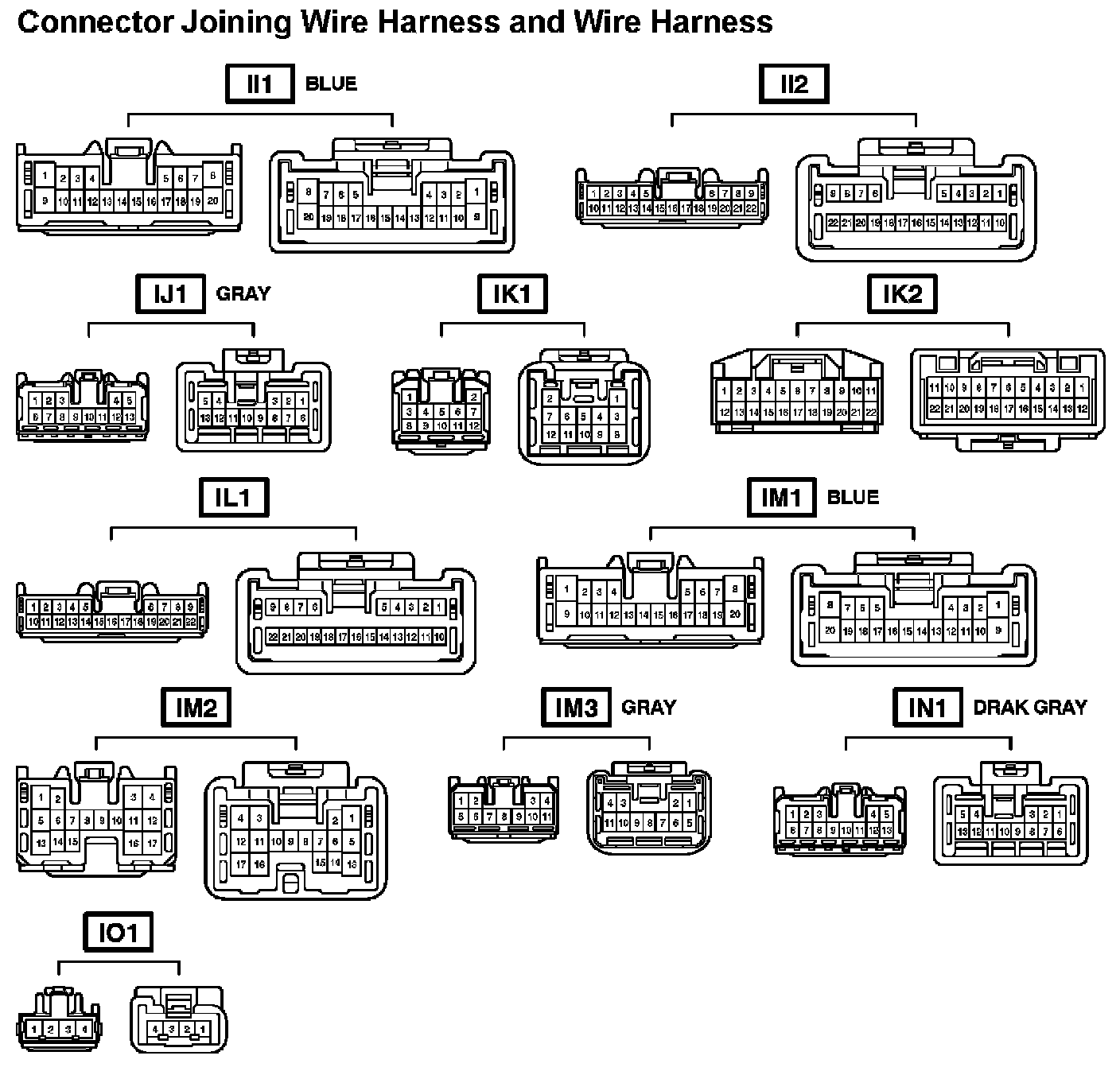

II1 - IO1:

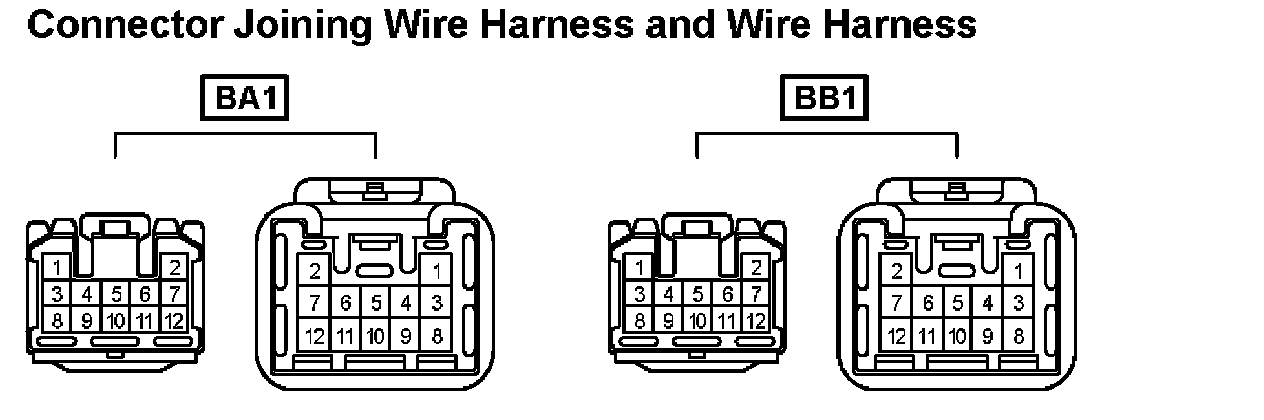

BA1 - BB1:

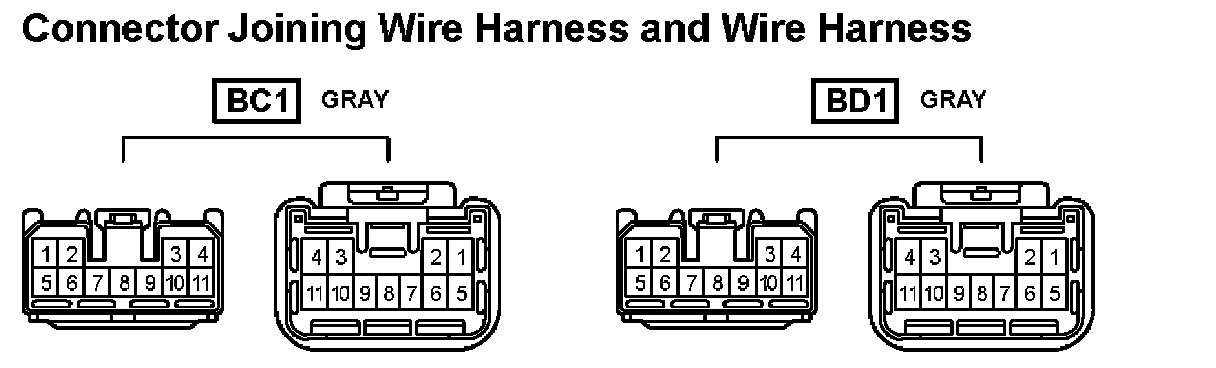

BC1 - BD1:




BC1 - BD1:
