Cruise Main Indicator Light Circuit

CIRCUIT DESCRIPTION

When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.

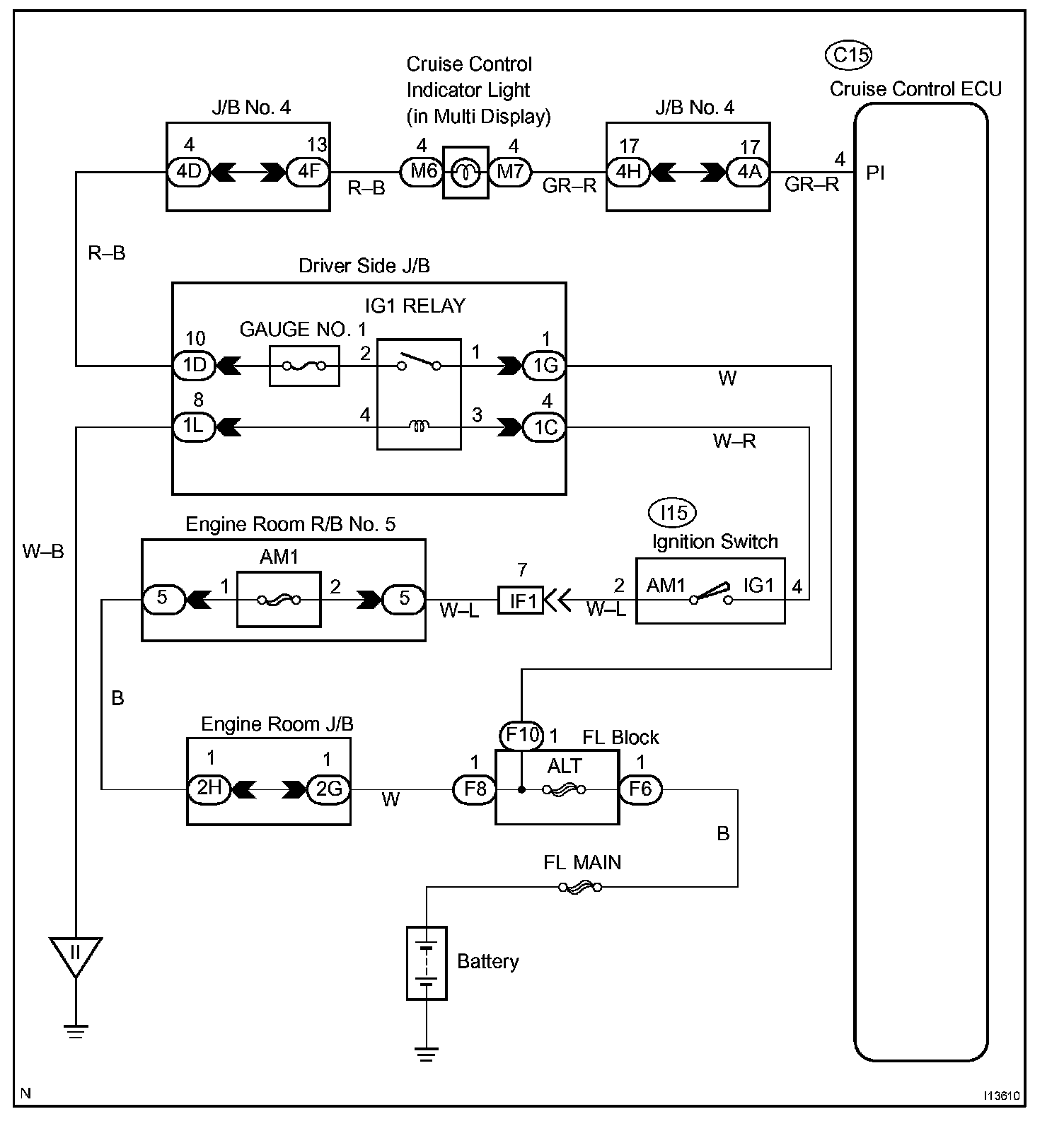

Wiring Diagram:






Step 1 - 2:

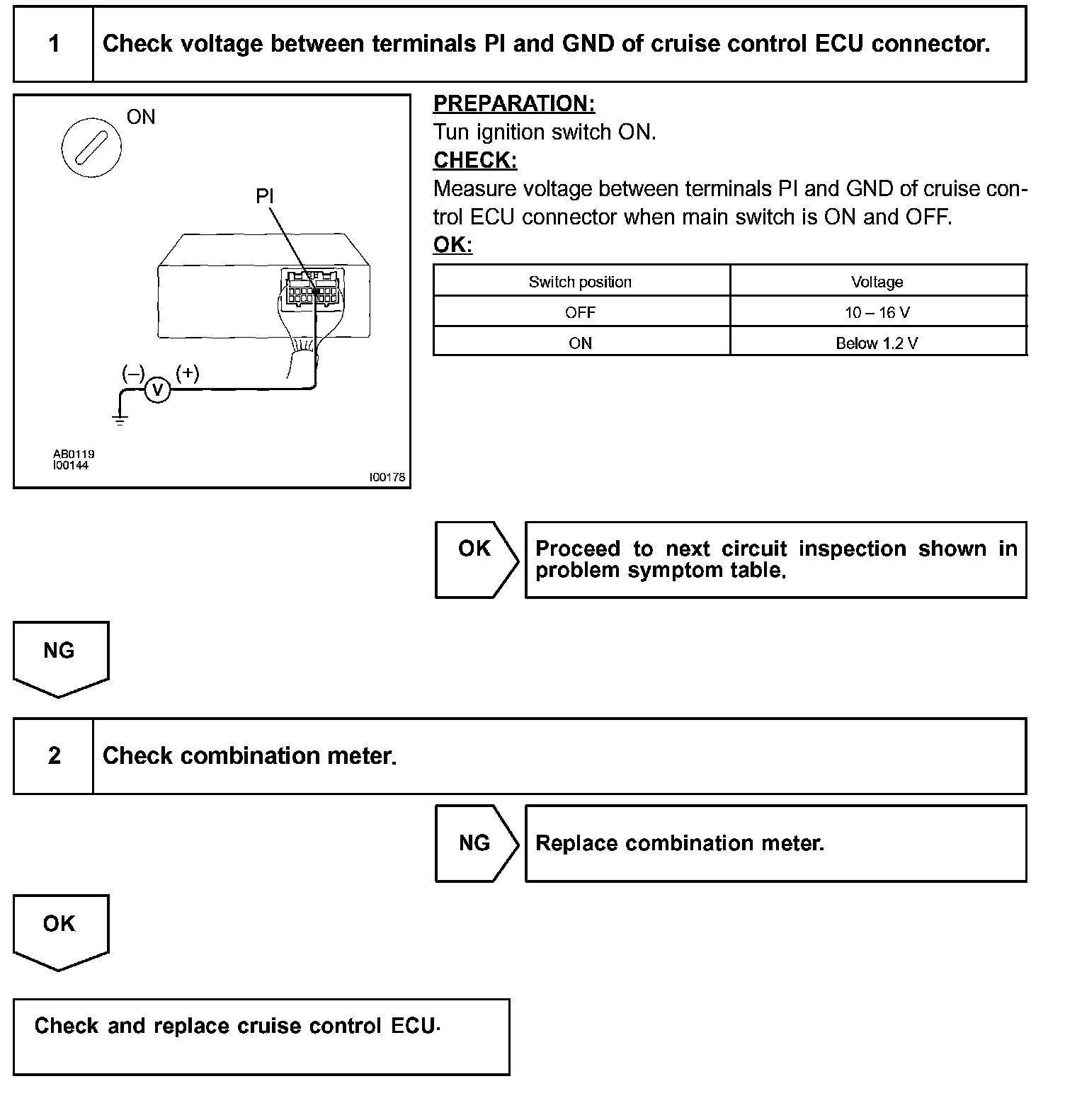

INSPECTION PROCEDURE
