Normal Code - Malfunction In ECM

DTC Normal Code Malfunction in ECM

CIRCUIT DESCRIPTION

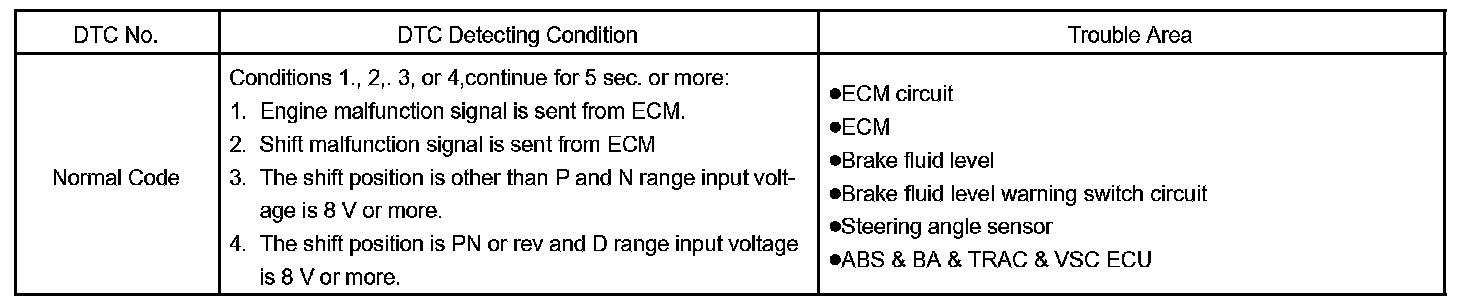

DTC Detecting Condition:




If any trouble occurs in the ECM control system the ECU prohibits ABS & VSC control.

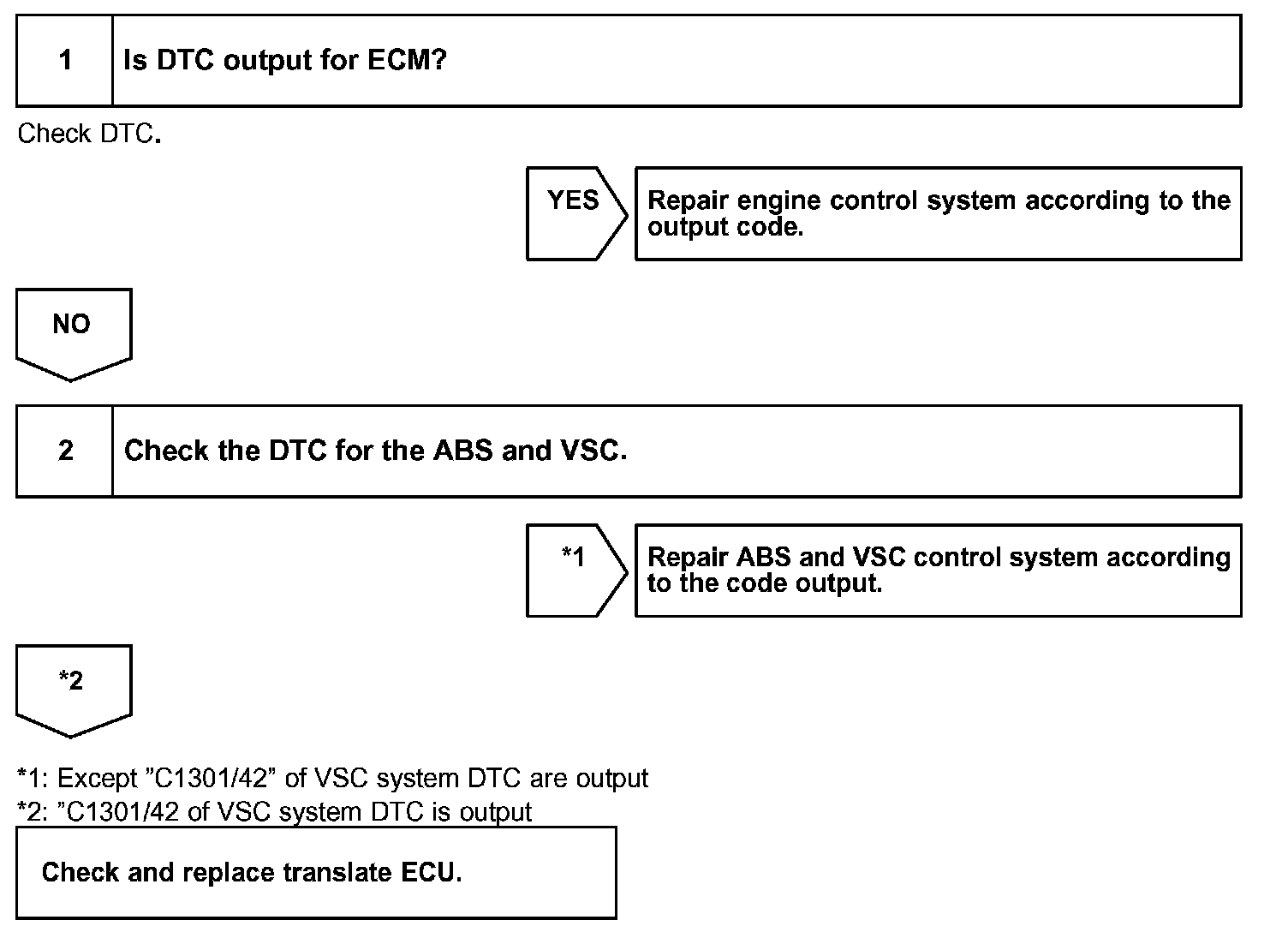

Step 1 - 2:




INSPECTION PROCEDURE
