Without Scan Tool

a. Release the parking brake pedal.

b. Check the indicator.
When the ignition switch is turned ON, check that the ABS warning light and BRAKE warning light goes on for approx. 3 seconds.

HINT:
- When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit or BRAKE warning light circuit.

Trouble Area
ABS warning light circuit
BRAKE warning light circuit

c. In case of not using hand-held tester:
Check the DTC of skid control ECU.

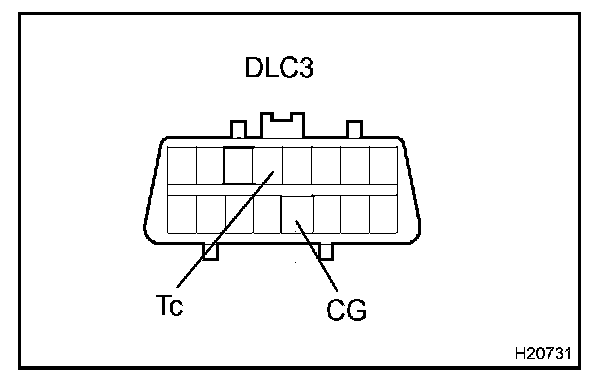

1. Using SST, connect terminals Tc and CG of DLC3.
SST 09843-18040

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light, on the combination meter.

HINT:
- If no code appears, inspect the diagnostic circuit, ABS warning light circuit or BRAKE warning light circuit.

Trouble Area
Tc terminal circuit
ABS warning light circuit
BRAKE warning light circuit

- When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.

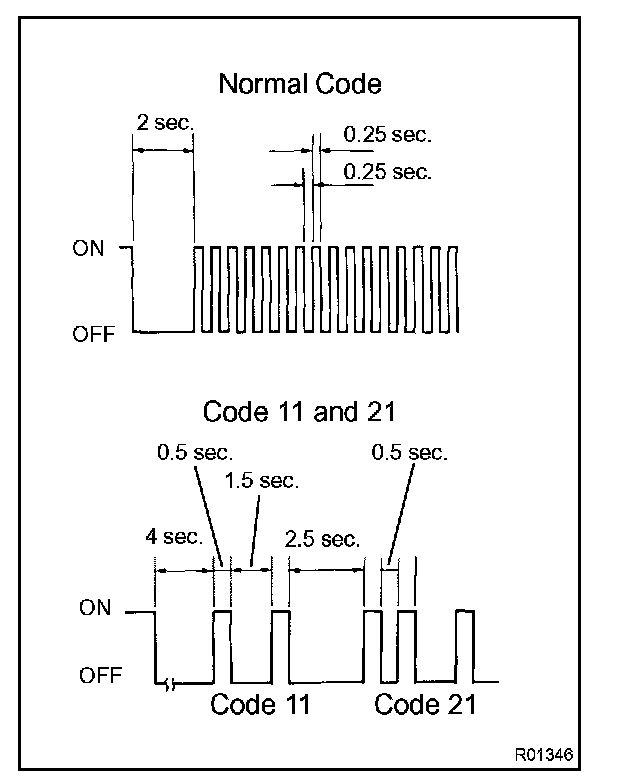

- As an example, the blinking patterns for normal code and codes 11 and 21 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals Tc and CG of DLC3, and turn off the display.

If 2 or more malfunctions are indicated at the same time the lowest numbered DTC will be displayed 1st.
