With Manufacturer's Scan Tool

a. Check the warning lights.
1. Release the parking brake pedal..
2. When the ignition switch is turned ON, check that the ABS warning light, VSC warning light, VSC OFF indicator light, BRAKE warning light and SLIP indicator light goes on for approx. 3 seconds.

HINT:
- When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light is lit.
- If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit, VSC warning light circuit, VSC OFF indicator light circuit, BRAKE warning light circuit or SLIP indicator light circuit.

Trouble Area
ABS warning light circuit
VSC warning light circuit
VSC OFF indicator light circuit
BRAKE warning light circuit
SLIP indicator light circuit

b. In case of using hand-held tester:
Check the DTC.

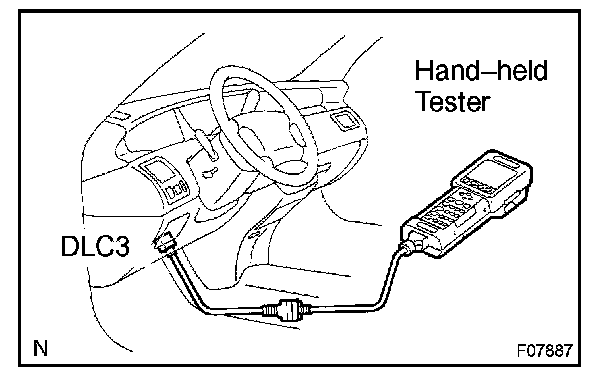

1. Hook up the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DTC by following the prompts on the tester screen.

HINT: Please refer to the hand-held tester operator's manual for further details.
