Ts Terminal Circuit

CIRCUIT DESCRIPTION

The sensor check circuit detects abnormally in the speed sensor signal which cannot be detected by the DTC check.

Connecting terminals Ts and CG of DLC3 starts the check.

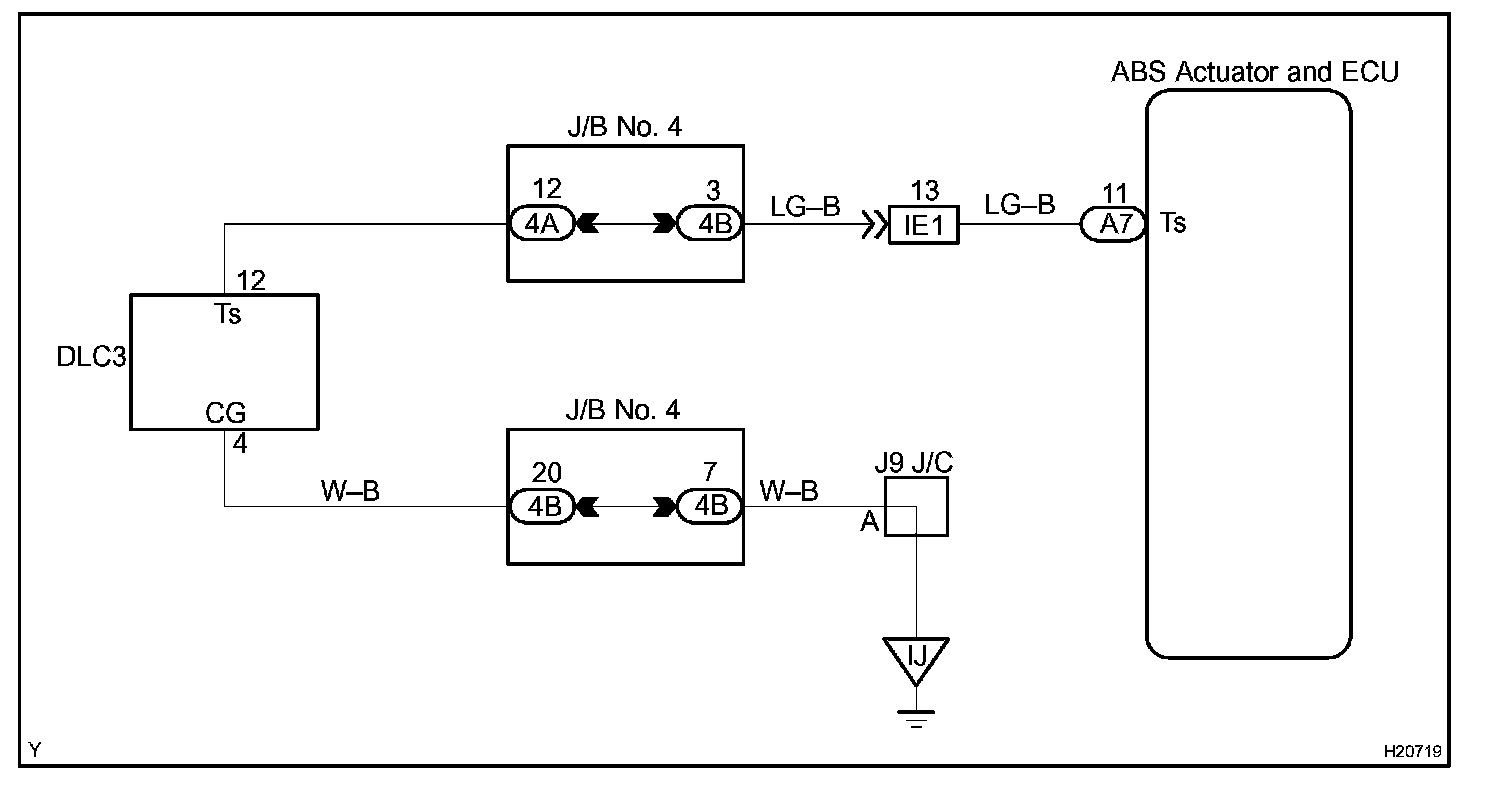

Wiring Diagram:

Step 1 - 2:

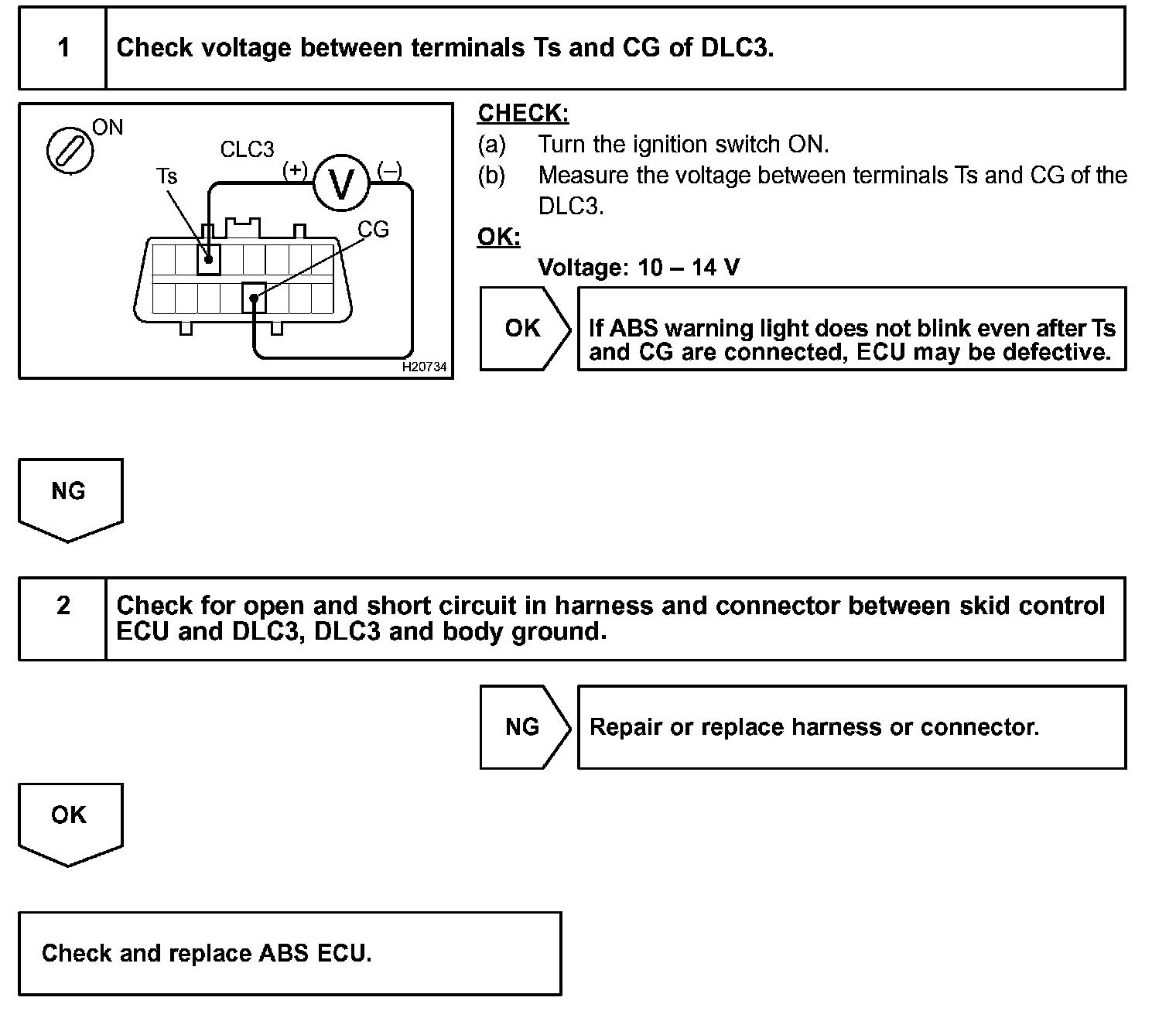

INSPECTION PROCEDURE
