Tc Terminal Circuit
CIRCUIT DESCRIPTIONConnecting between terminals Tc and CG of the DLC3 causes the ECU to display DTC by blinking the ABS warning light, VSC warning light and BRAKE warning light.

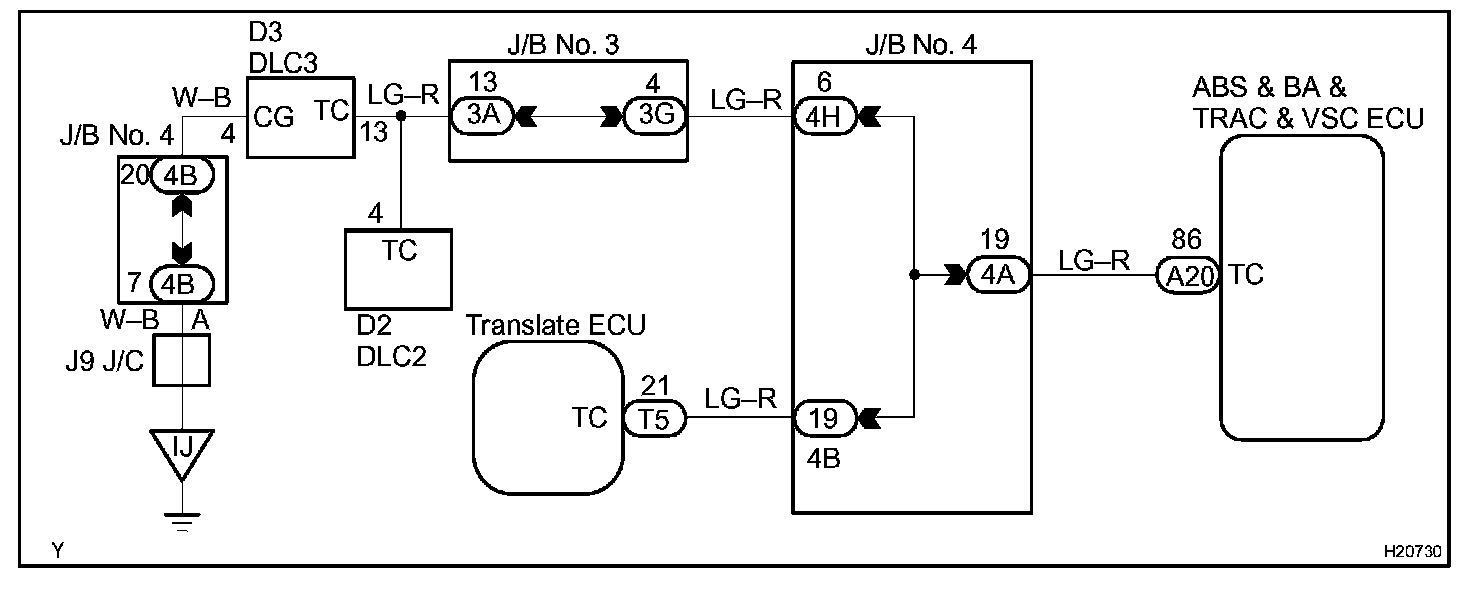

Wiring Diagram:

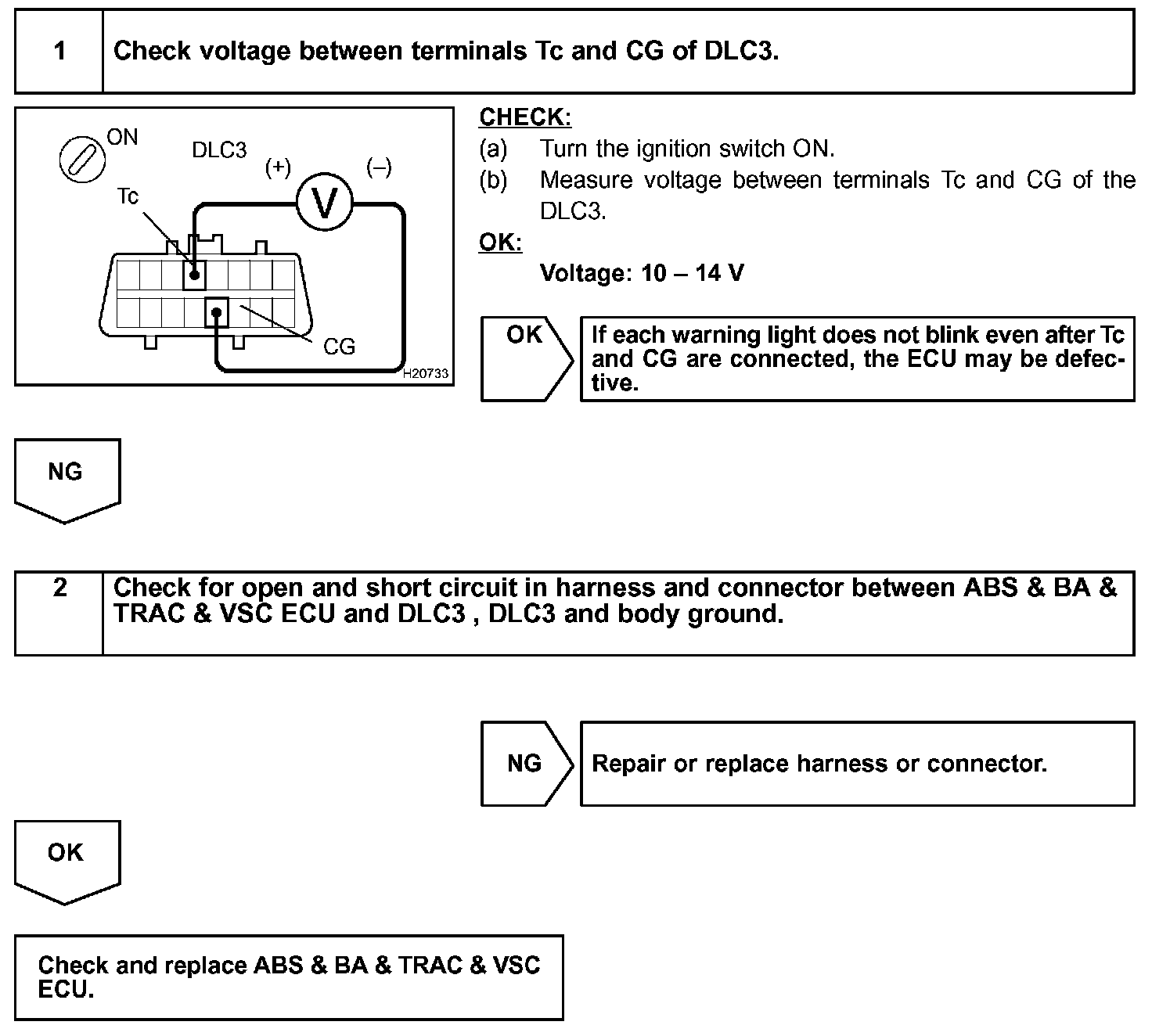

Step 1 - 2:
INSPECTION PROCEDURE
Connecting between terminals Tc and CG of the DLC3 causes the ECU to display DTC by blinking the ABS warning light, VSC warning light and BRAKE warning light.
INSPECTION PROCEDURE
