Brake Warning Light Circuit

CIRCUIT DESCRIPTION

- The BRAKE warning light lights up when the brake fluid is insufficient, when the parking brake is applied or when the EBD is defective.
- If the translate ECU detects trouble, it makes VSC warning light lights up while prohibiting VSC & TRAC control. At this time, the ECU records a DTC in memory. Connect terminals Tc and CG of the DLC3 to make BRAKE warning light blink and output the DTC.

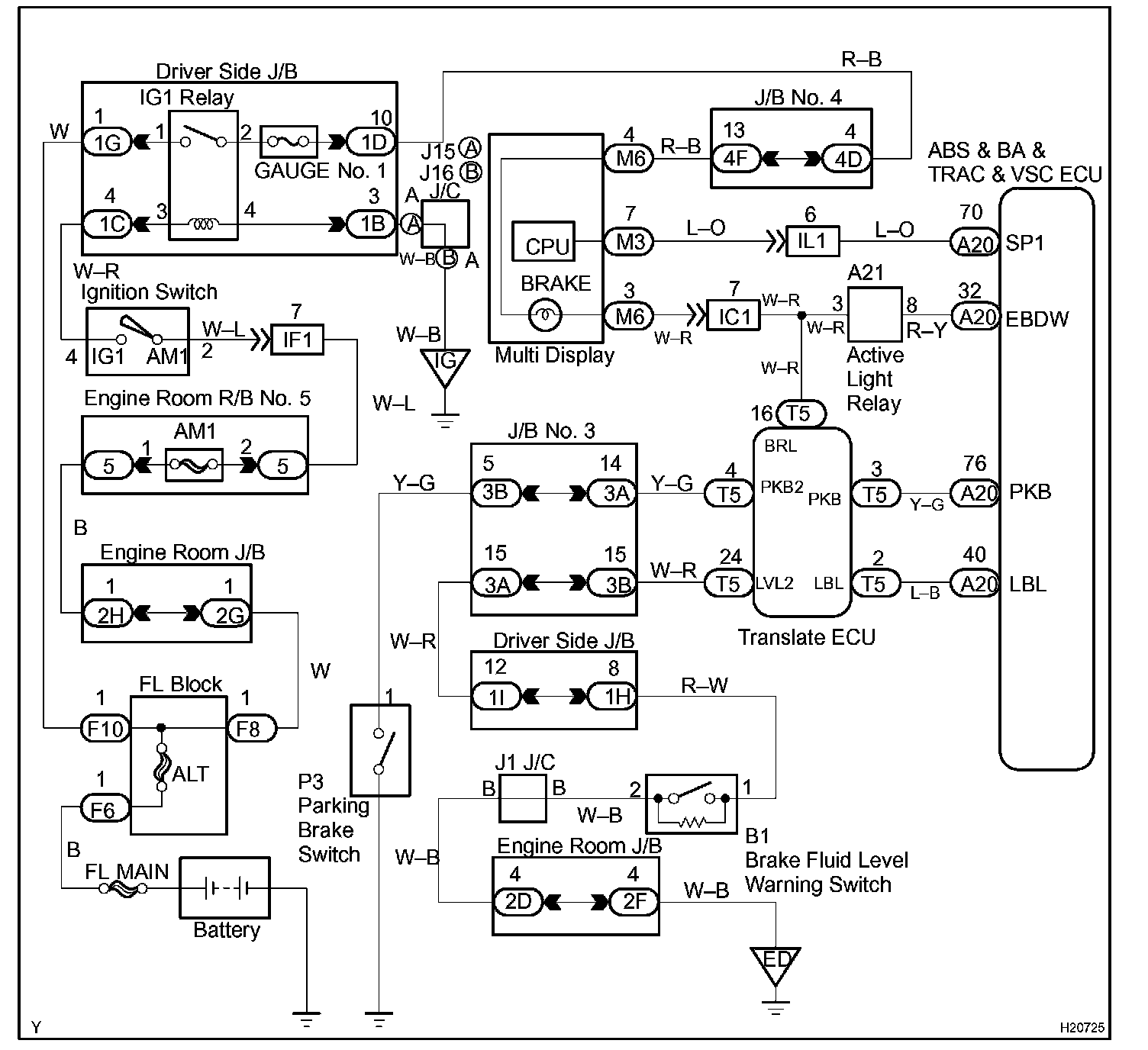

Wiring Diagram:

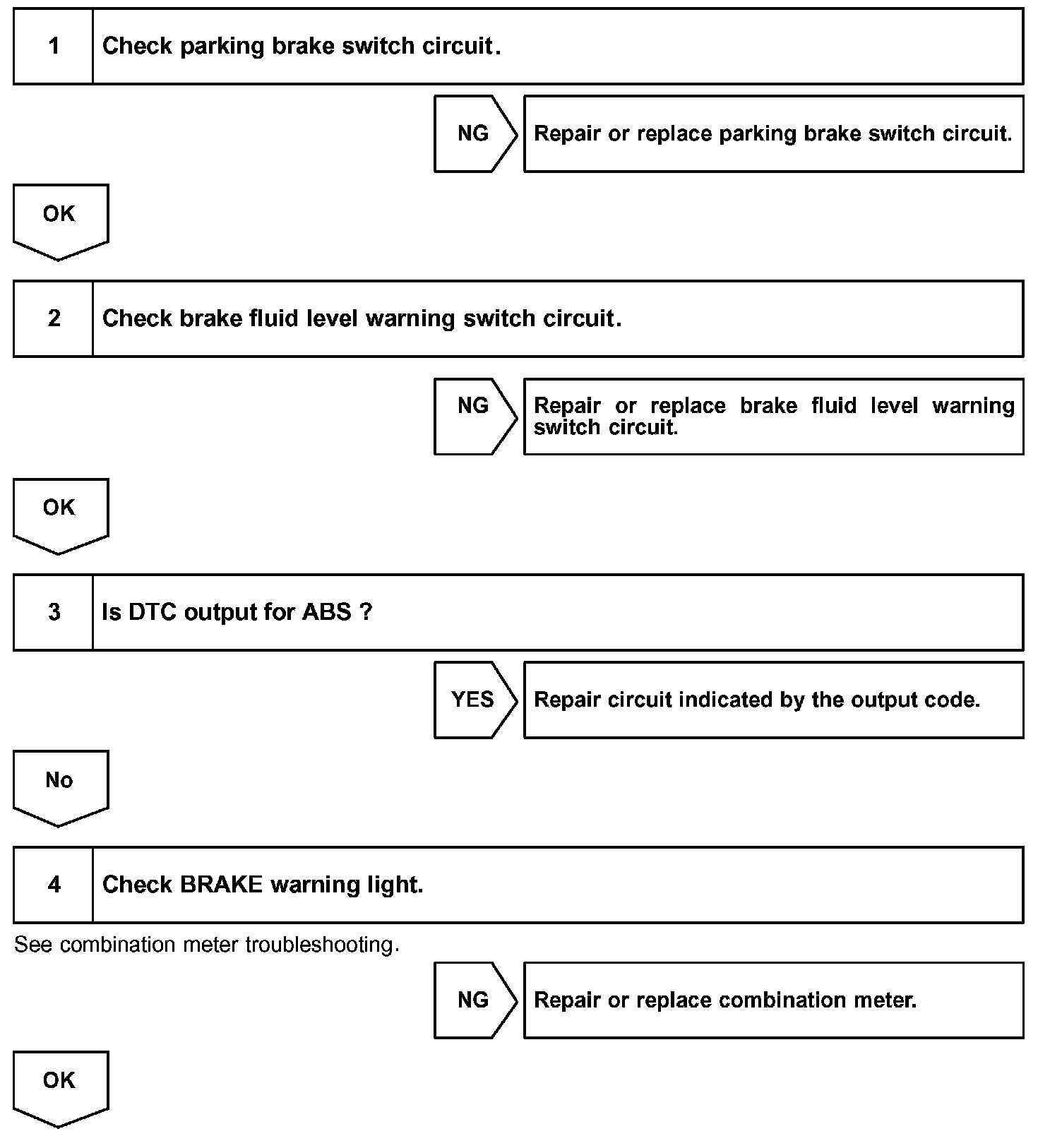

Step 1 - 4:

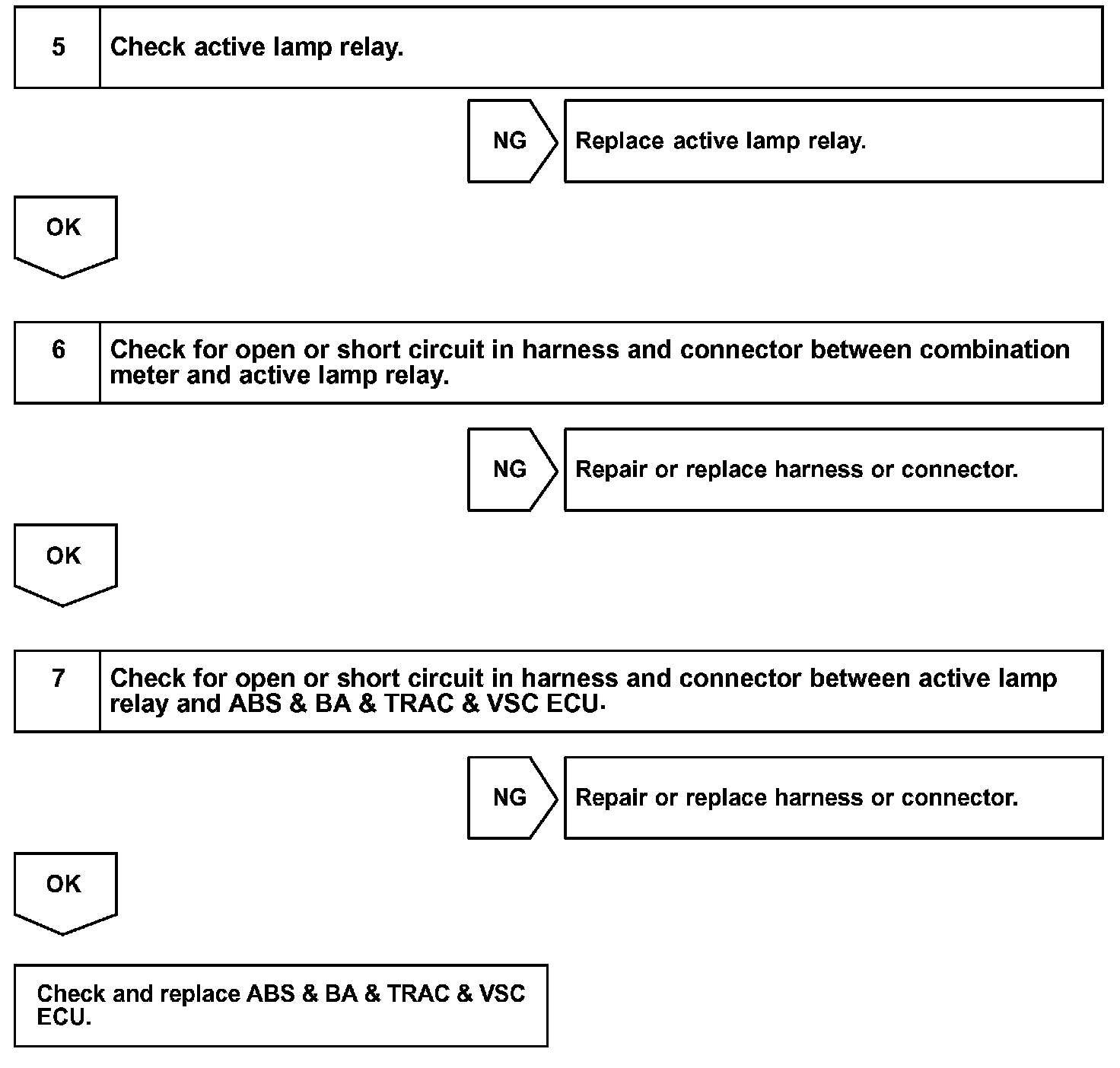

Step 5 - 7:

INSPECTION PROCEDURE
