Power Door Lock Switch: Locations

Theft Deterrent System:

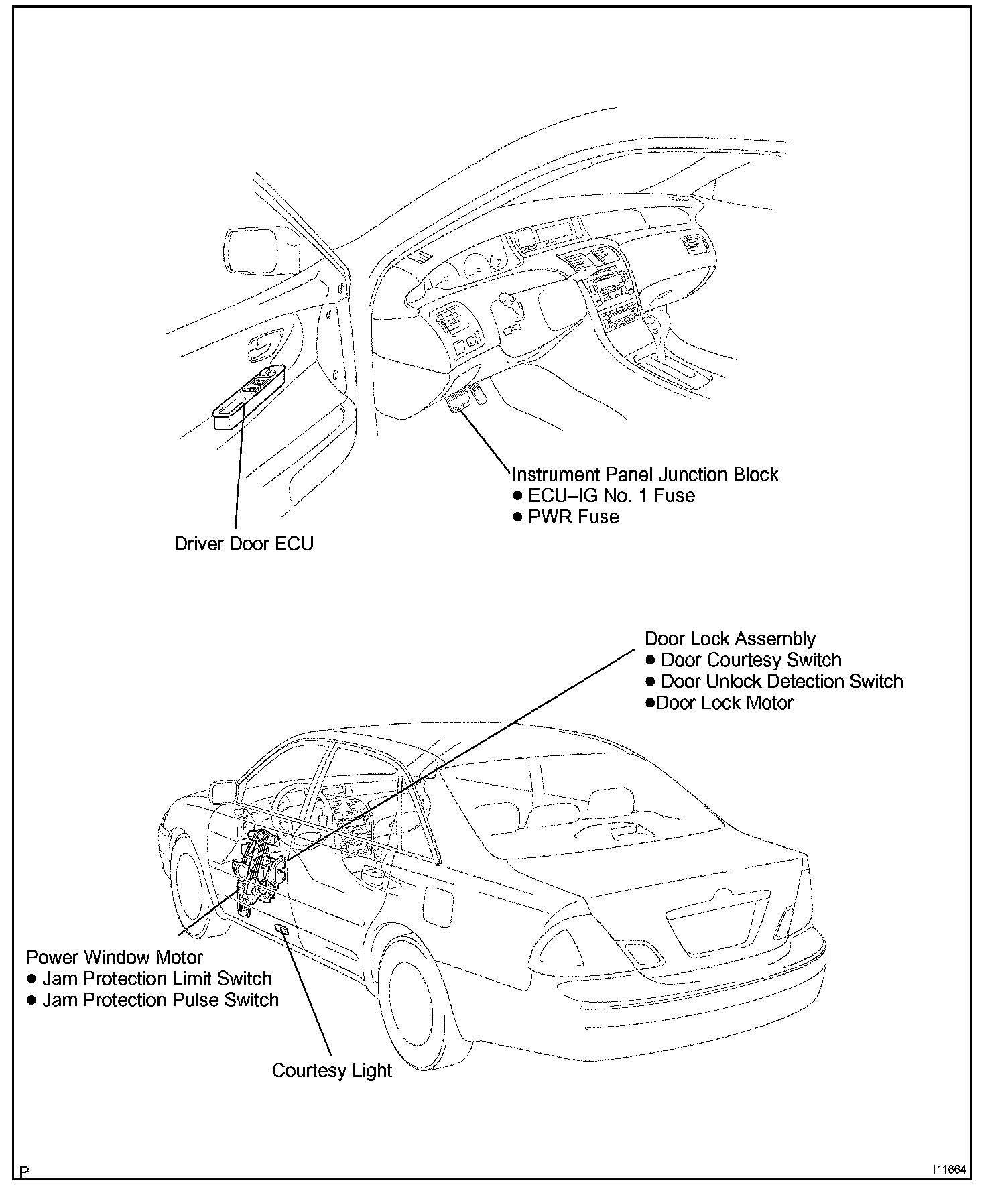

Driver Door Control System:

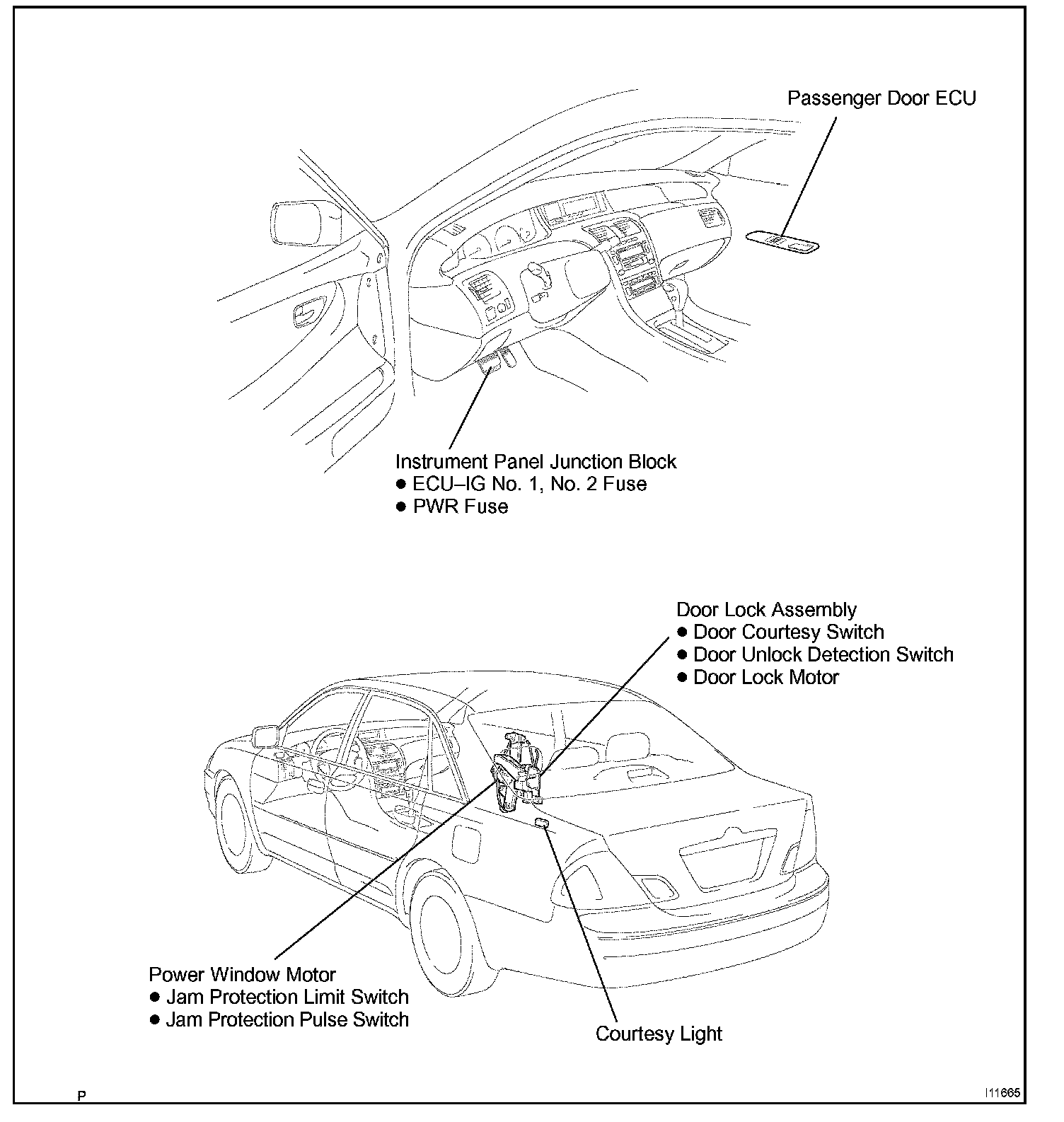

Passenger Door Control System:



ABS - Lu:
